- GTX DI, 5649/5659, 2000
10- Electronic Module And Electrical Accessories

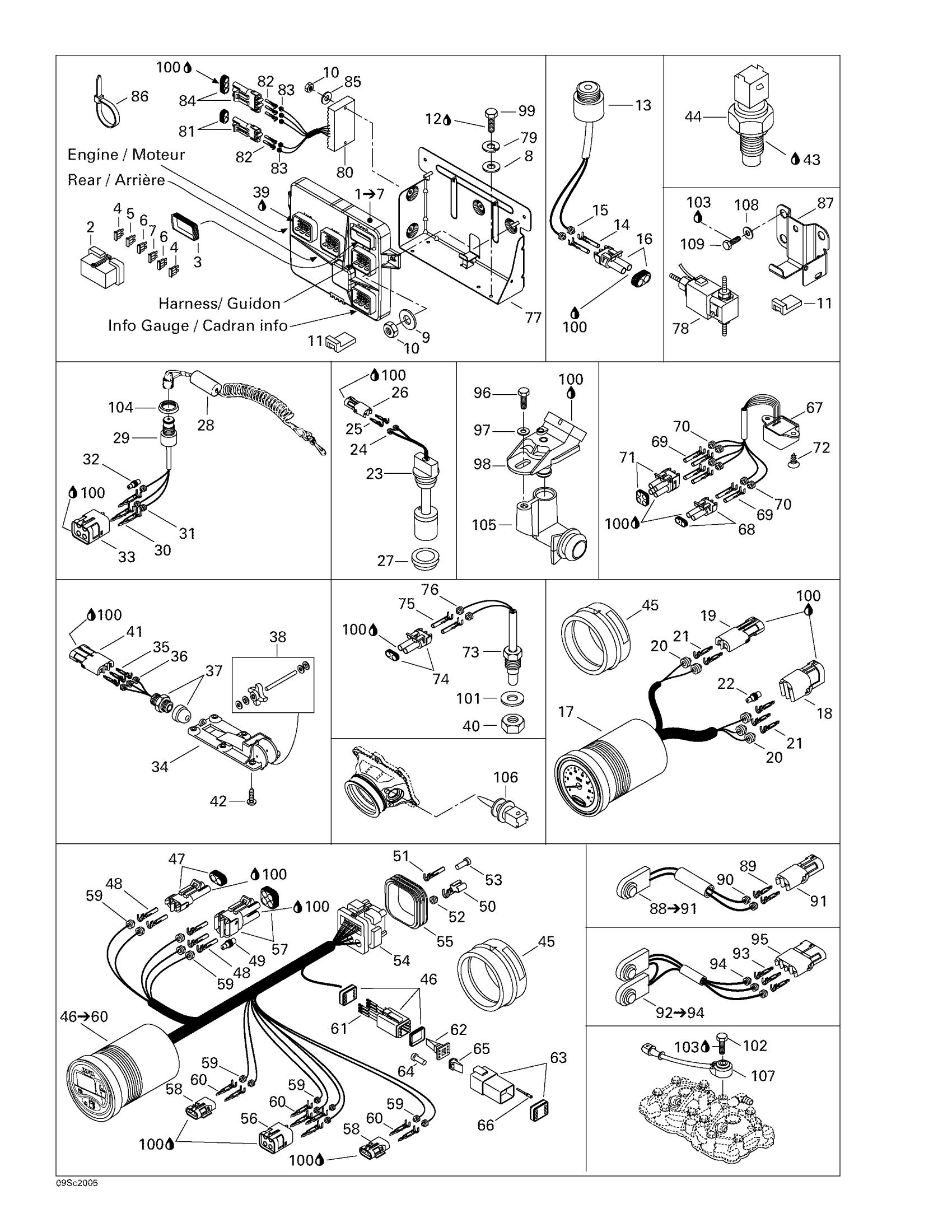

Sea-doo GTX DI, 5649/5659, 2000 10- Electronic Module And Electrical Accessories Diagram
#
1
Electronic Module Ass'y | Includes 1 - 7.
278001440
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
3
Cover Seal
278001070
Unavailable
4
Fuse, 15 Amperes
278000343
$3.28
5
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
6
Fuse, 25 Amperes
278001443
$3.28
7
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
8
Flat Washer 5 mm, Stainless
234052600
$0.77
9
Flat Washer M6, Stainless
234062600
$0.77
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
MODULE PROTECTOR - Call your local BRP dealership
278001166
Unavailable
12
Loctite 271, 10 ml
293800005
$26.99
13
Buzzer Ass'y | Includes 13 - 16.
278001531
Unavailable
14
Female Terminal
278000223
$3.19
15
Wire Seal
278000218
$4.39
16
Male Connector, 2 Circuits
278000220
$15.49
17
Speedometer | Includes 22 - 27.
278001359
Unavailable
18
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
19
Female Housing, 2 Circuits
278000217
$9.59
20
Wire Seal
278001065
$7.69
21
Male Terminal | XT Models
278000222
$3.19
22
Wire Seal
278000216
$3.19
23
OIL SENSOR - Call your local BRP dealership | Includes 18 to 22
278001515
Unavailable
24
Wire Seal
278000218
$4.39
25
Male Terminal | XT Models
278000222
$3.19
26
Female Housing, 2 Circuits
278000217
$9.59
27
Grommet
293720008
$14.75
28
Safety Lanyard, Learning Key
278002203
$56.99
29
Safety Switch | Includes 15 - 19.
278000977
Unavailable
30
Male Terminal | XT Models
278000222
$3.19
31
Wire Seal
278000218
$4.39
32
Wire Seal
278000216
$3.19
33
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
34
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
35
Male Terminal | XT Models
278000222
$3.19
36
Wire Seal
278000218
$4.39
37
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
38
Paddle Wheel Kit
295500108
Unavailable
39
*(Ormd) *Deoxit Aerosol *
293550034
$38.99
40
NUT-HEX.PLASTIC M10 X 1.5 - Call your local BRP dealership
250100004
Unavailable
41
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
42
Phillips Screw M5 x 12
250000319
$1.39
43
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
44
Temperature Sensor
278002895
$39.99
45
Gauge Support
293720047
Unavailable
46
LCD Info Gauge | Includes 46 - 60.
278001559
Unavailable
46
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
47
Male Connector, 2 Circuits
278000220
$15.49
48
Female Terminal
278000223
$3.19
49
Wire Seal
278000216
$3.19
50
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
51
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
52
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
53
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
54
Male Connector, 26 Circuits | Includes 16a - 17.
278000993
Unavailable
55
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
56
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
57
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
58
Female Housing, 2 Circuits
278000217
$9.59
59
Wire Seal
278001065
$7.69
60
Male Terminal | XT Models
278000222
$3.19
61
Female Terminal
278000632
$2.09
62
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
63
Male Terminal Housing, 6 Circuits
710001539
$19.99
64
Sealing Cap
293000052
$3.19
65
Female Lock, 6 Circuits
278000735
$3.19
66
Male Terminal
278000631
$4.39
67
Compass | GTI RFI LE, Includes 38 to 42
278001243
Unavailable
68
Male Connector, 2 Circuits
278000220
$15.49
69
Female Terminal
278000223
$3.19
70
Wire Seal
278000218
$4.39
71
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
72
Black, Dart
293730016
$9.97
73
Temperature Sensor | Includes 55 - 58.
278000851
Unavailable
74
Male Connector, 2 Circuits
278000220
$15.49
75
Female Terminal
278000223
$3.19
76
Wire Seal
278000218
$4.39
77
Module Support
278001447
Unavailable
78
SOLENOIDE VALVE - Call your local BRP dealership
270600028
Unavailable
79
Helical Lock Washer M5
234151601
$1.15
80
Rectifier Ass’Y | Includes 30 - 34.
278001554
$209.99
81
Male Connector, 2 Circuits
278000220
$15.49
82
Female Terminal
409007300
$0.45
83
Wire Seal
278000218
$4.39
84
Male Housing, 3 Circuits
278000273
$9.59
85
Stainless Flat Washer M6
234061600
$0.33
86
Tie-Rap 180 mm
414115200
$0.11
87
Relay Support
291001438
Unavailable
88
Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.
278001358
Unavailable
89
Male Terminal | XT Models
278000222
$3.19
90
Wire Seal
278000218
$4.39
91
Female Housing, 2 Circuits
278000217
$9.59
92
Mode/Set Switch | Includes 1 - 3.
278001534
Unavailable
93
Female Terminal
278000223
$3.19
94
Wire Seal
278000218
$4.39
95
Male Housing, 3 Circuits
278000273
$9.59
96
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
97
Flat Washer | XT
211200035
$0.55
98
Pressure Sensor (5591/5592)
270600001
Unavailable
99
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
100
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
101
Flat Washer 10 mm, Stainless
234000600
$1.46
102
Hex. Screw M8 X 30
207183060
$1.58
103
Loctite 243, 10 ml
293800060
$21.49
104
Safety Nut (DESS Switch)
278002963
$3.28
105
VALVE ADAPTOR - Call your local BRP dealership
270600019
Unavailable
106
AIR TEMPERATURE SENSOR - Call your local BRP dealership
270600000
Unavailable
107
Noise Sensor
270000484
$82.99
108
HEX. SCREW M3 X 08 - Call your local BRP dealership
207130860
Unavailable
109
Flat Washer M3, Stainless
234032600
$0.55
