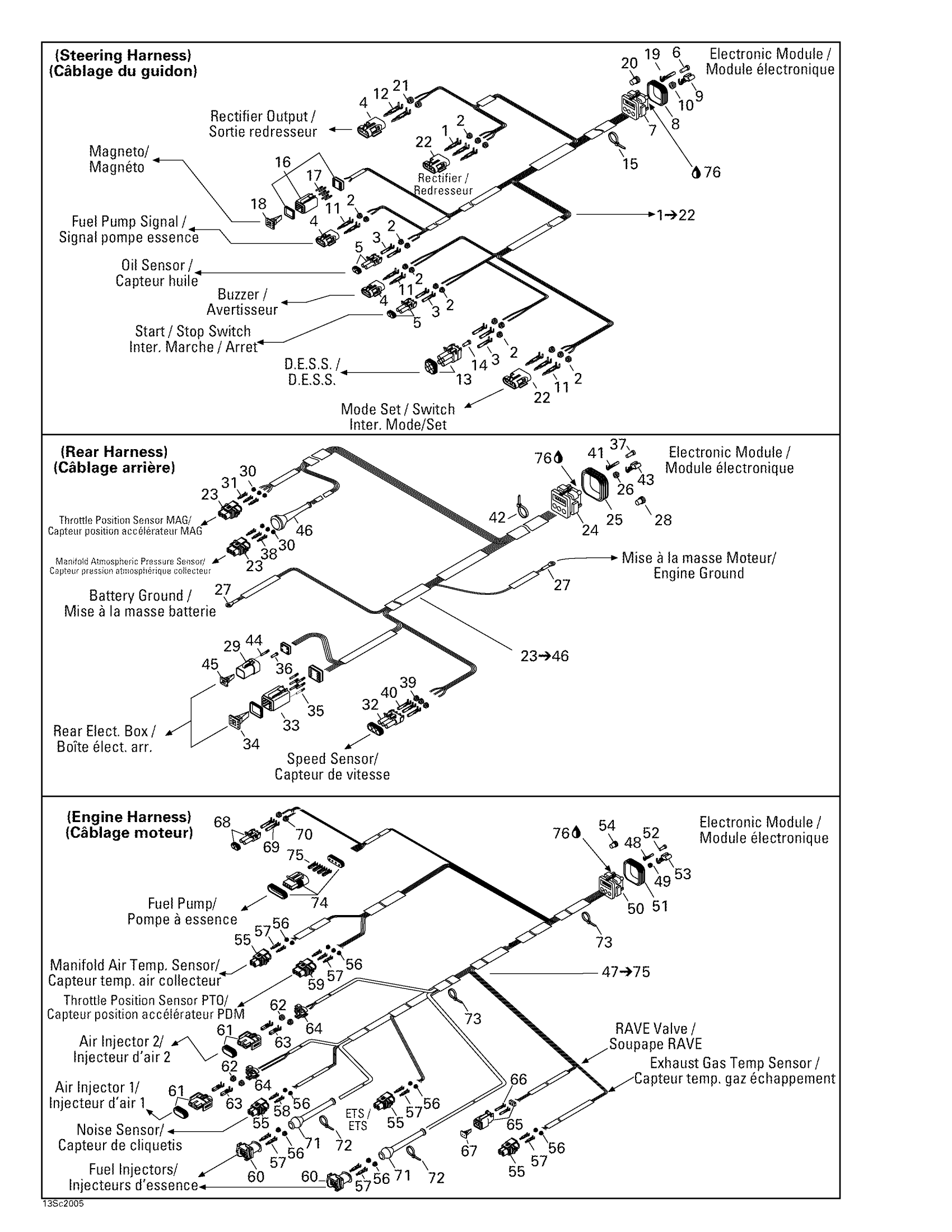

Sea-doo GTX DI, 5649/5659, 2000 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 22.

278001460

Unavailable

1

Male Terminal

409004300

$5.61

2

Wire Seal

278000218

$4.39

3

Female Terminal

278000223

$3.19

4

Female Housing, 2 Circuits

278000217

$9.59

5

Male Connector, 2 Circuits

278000220

$15.49

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

11

Male Terminal | XT Models

278000222

$3.19

12

MALE TERMINAL - Call your local BRP dealership

278001576

Unavailable

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Wire Seal

278000216

$3.19

15

Tie Wrap 142 mm

293750002

$1.25

16

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

17

Female Terminal

278000632

$2.09

18

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

19

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

20

SEAL - Call your local BRP dealership

409013900

Unavailable

21

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

22

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

23

Rear Harness | Includes 23 - 46.

278001456

Unavailable

23

Male Housing, 3 Circuits

278000997

$19.49

24

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

25

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

26

Seal

278001223

Unavailable

27

Open Barrel Terminal

278001392

$4.79

28

SEAL - Call your local BRP dealership

409013900

Unavailable

29

Female Terminal Housing, 4 Circuits

278001473

$26.99

30

Wire Seal

278000999

$3.19

31

Female Terminal

278000998

$4.39

32

Male Housing, 3 Circuits

278000273

$9.59

33

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

35

Female Terminal

278000632

$2.09

36

Sealing Cap

293000052

$3.19

37

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

38

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

39

Wire Seal

278000218

$4.39

40

Female Terminal

278000223

$3.19

41

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

42

Tie Wrap 142 mm

293750002

$1.25

43

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

44

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

45

Female Lock, 4 Circuits

278001474

$3.49

46

Wire Boot(Bosch)

278001002

Unavailable

47

Engine Harness Ass'y | Includes 47 - 75.

278001485

Unavailable

48

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

49

Seal

278001223

Unavailable

50

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

Unavailable

51

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

52

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

53

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

54

SEAL - Call your local BRP dealership

409013900

Unavailable

55

Male Housing, 2 Circuits

278001005

$19.49

56

Wire Seal

278000999

$3.19

57

Female Terminal

278000998

$4.39

58

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

59

Male Housing, 3 Circuits

278000997

$19.49

60

Male Connector, 2 Circuits

278001003

$46.49

61

MALE CONNECTOR, 2 CIRCUITS - Call your local BRP dealership

278001480

Unavailable

62

Seal

278001482

$3.19

63

Female Terminal

278001481

$3.49

64

LOCK, 2 CIRCUITS - Call your local BRP dealership

278001483

Unavailable

65

Female Connector, 2 Circuits

409207300

$9.85

66

Female Terminal

278000632

$2.09

67

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

68

Male Connector, 2 Circuits

278000220

$15.49

69

Female Terminal

278000223

$3.19

70

Wire Seal

278000218

$4.39

71

RUBBER CAP - Call your local BRP dealership

278001484

Unavailable

72

Tie Wrap 94 mm | 4X4

293750001

$1.03

73

Tie Wrap 142 mm

293750002

$1.25

74

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

75

Female Terminal

278001114

$3.19

76

*(Ormd) *Deoxit Aerosol *

293550034

$38.99
