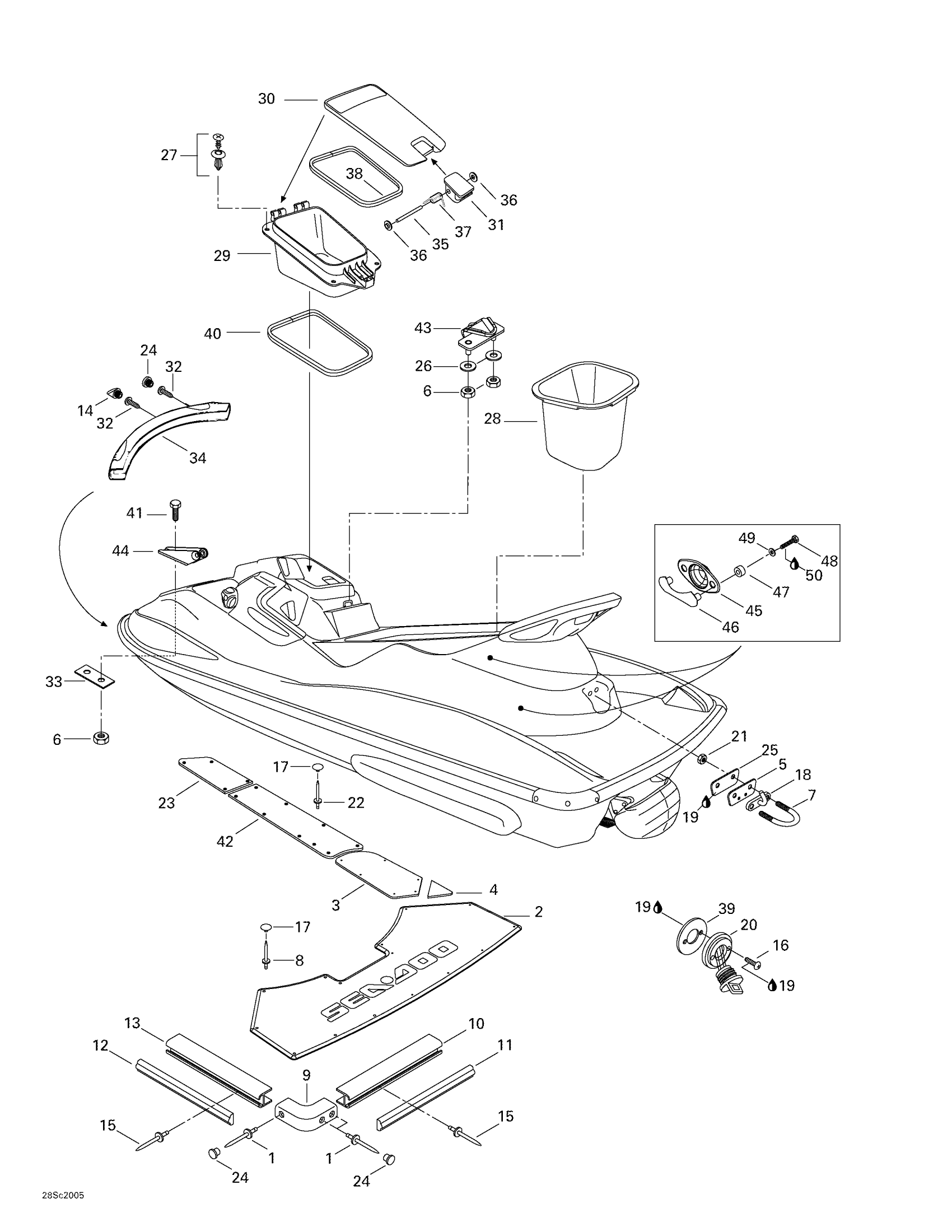

Sea-doo GTX DI, 5649/5659, 2000 Body, Rear View Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.11

2

Rear Carpet (Black)

291001053

Unavailable

3

RH Rear Carpet (Black)

291001051

Unavailable

LH Rear Carpet (Black)

291001052

Unavailable

4

RH Anti-Skid Carpet

291000935

Unavailable

LH Anti-Skid Carpet

291000936

Unavailable

5

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Bumper Corner

291002244

$38.32

10

Rear Bumper (Black)

291001226

Unavailable

11

REAR BUMPER TRIM - Call your local BRP dealership

291001227

Unavailable

12

SIDE BUMPER TRIM - Call your local BRP dealership

291001225

Unavailable

13

Black, Side Bumper

204050270

$175.35

14

Bumper Plug, Black

291001040

Unavailable

15

Pop Rivet 3/16"

293150005

$0.40

16

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

17

Black, Snap Cap

293000014

$0.85

18

Hook | Package LTD

291002351

$69.97

19

Silicone Sealant 51388, 300 ml

296000309

$35.72

20

Drain Plug

292000187

$10.21

21

Hex. Elastic Nut M8

232581600

$1.25

22

Rivet 1/8"

293150016

$0.29

23

RH Front Carpet (Black)

291001032

Unavailable

LH Front Carpet (Black)

291001033

Unavailable

24

Bumper Plug, Black

291000339

$2.34

25

Finition Plate

291000544

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.64

27

SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership

211000088

Unavailable

28

Rear Tray (Seat)

269500270

Unavailable

29

Box Gloves

269500439

Unavailable

30

Door-Box Gloves

269500753

Unavailable

31

Latch, Black

269500553

$16.87

32

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

33

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

34

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

35

Pin

211400008

$7.32

36

Push Nut | Not shown

211100002

$0.83

37

Latch Spring

291000922

$4.80

38

GASKET - Call your local BRP dealership

293250060

Unavailable

39

GASKET - Call your local BRP dealership

293250030

Unavailable

40

Seal 1000Mm Long

219704373

$8.29

41

Hex. Screw M6 X 25

207162560

$1.22

42

RH Center Carpet (Black)

291001030

Unavailable

LH Center Carpet (Black)

291001031

Unavailable

43

Seat Hook

291001479

Unavailable

44

SHOCK SUPPORT - Call your local BRP dealership

291000855

Unavailable

45

CARGO HOOK BASE - Call your local BRP dealership

291001195

Unavailable

46

HOOK CARGO CLEATS - Call your local BRP dealership

291001196

Unavailable

47

Spacer

291001203

$10.28

48

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

49

Flat Washer 5 mm, Stainless

234052600

$0.64

50

Loctite 243, 10 ml

293800060

$20.77
