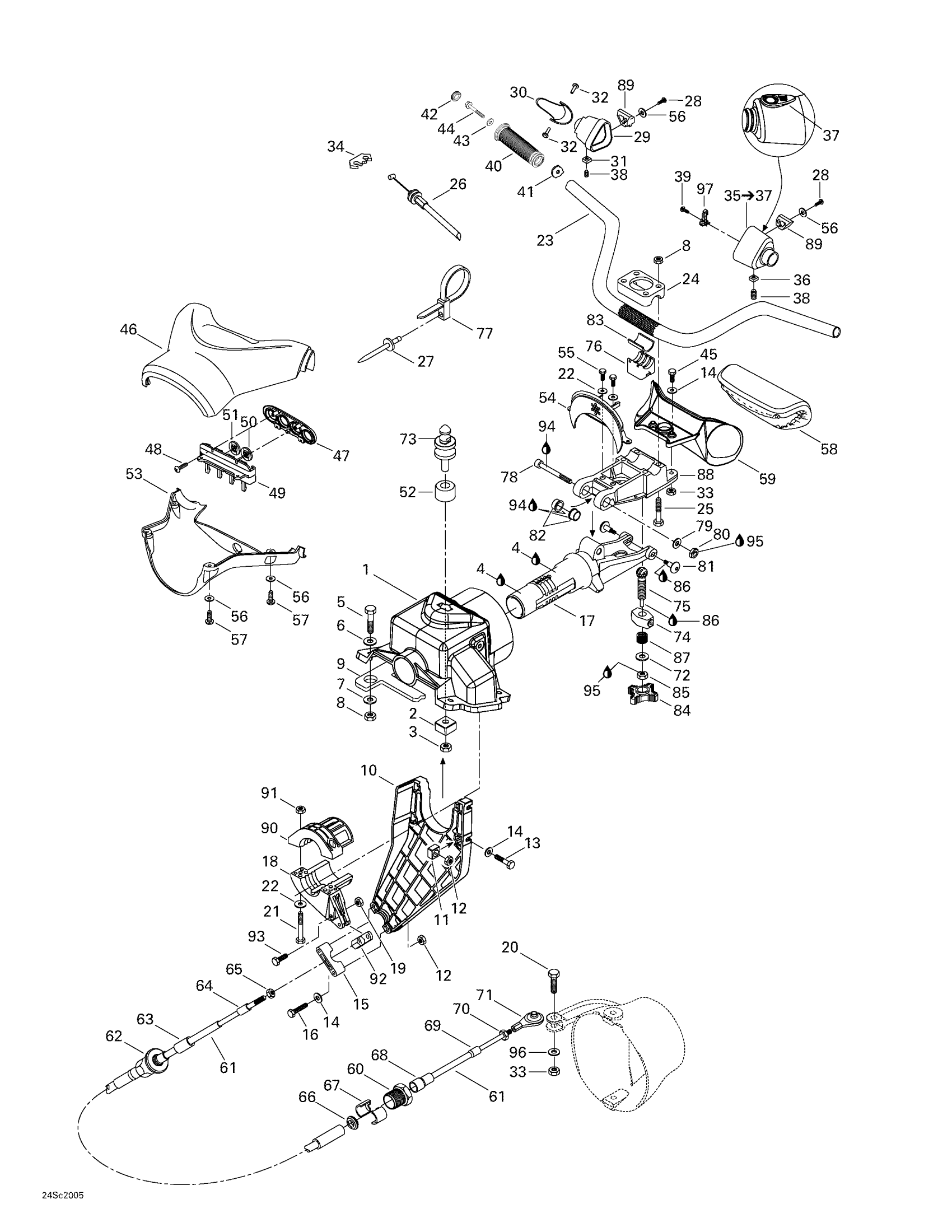

Sea-doo GTX DI, 5649/5659, 2000 Steering System Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

2

Nut Housing Ass’Y | Includes 64 to 65

271001115

Unavailable

3

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

4

Synthetic Grease, 400 G

293550010

Unavailable

5

Hex. Screw M8 X 35

207083560

$1.47

6

Stainless, Flat Washer 8 mm

234081600

$0.55

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Hex. Elastic Nut M8

232581600

$1.48

9

GASKET - Call your local BRP dealership

293250171

Unavailable

10

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

11

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

Hex. Forming Screw M6 X 20

207162060

$1.29

14

Stainless Flat Washer M6

234061600

$0.33

15

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

16

Hex. Screw M6 X 50

207065060

$2.22

17

Steering Stem

277000758400

Unavailable

18

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

Hex. Screw M6 X 35

207063560

$2.22

21

Hex. Screw M6 X 25

207162560

$1.47

22

Flat Washer M6, Stainless

234062600

$0.77

23

Handlebar

277000840

Unavailable

24

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

25

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

26

Throttle Cable

277000851

Unavailable

27

Pop Rivet 3/16"

293150008

$0.50

28

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

29

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

30

Throttle Handle

277000214

Unavailable

31

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

32

PIN - Call your local BRP dealership

277000381

Unavailable

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

35

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16

277000869

Unavailable

36

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

37

Switch Knob

277000306

Unavailable

38

Socket Head Screw M6 X 16

250000036

$9.00

39

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

40

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Black, Cap

277000203

$9.39

43

Flat Washer M6, Stainless

234062600

$0.77

44

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

45

Hex. Screw M6 X 30

207063060

$1.89

46

Upper Steering Cover Ass’Y | LE, Includes 32 to 37

277000753

Unavailable

47

RETAINER PLATE - Call your local BRP dealership | LE

277000688

Unavailable

48

Screw K40 X 10

241140060

$1.48

49

Switch Support | LE

277000563

Unavailable

50

Mode Knob | LE

293000079

Unavailable

51

«Set» Knob | LE

293000080

Unavailable

52

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

53

Lower Steering Cover

277000765

Unavailable

54

Plate, Black

277000766

Unavailable

55

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

56

Flat Washer M5, Stainless

234051600

$0.77

57

Hex. Flange Screw K40 X 16

241141660

$1.48

58

Handle Pad | Includes 9 to 10

277000867

Unavailable

59

Handle Bar Pad Support

277000687

Unavailable

60

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

61

Cable-Steering | Includes 1 - 4. This part replaces 277001009.

277001323

$219.99

62

Ajustment Knob

277000782

$22.99

63

End Piece

277001583

$14.49

64

Wiper Rod

277001582

$11.11

65

Hex. Nut 1/4"-28

211100056

$0.69

66

Rubber Washer

293830063

$1.90

67

Half Ring

277001527

$10.37

68

End Piece

277001583

$14.49

69

Wiper Rod

277001582

$11.11

70

Hex. Nut 1/4"-28

211100056

$0.69

71

Ball Joint

277000775

$51.99

72

Flat Washer 8 mm, Stainless

234082600

$2.43

73

Latch Stud

291001420

Unavailable

74

BLOCK - Call your local BRP dealership

277000761

Unavailable

75

ADJUSTER SCREW - Call your local BRP dealership

211000145

Unavailable

76

STOPPER - Call your local BRP dealership

277000762

Unavailable

77

CLAMP TIE - Call your local BRP dealership

293750021

Unavailable

78

SOCKET HEAD SCREW M10 X 73 SCOTCH GRIP - Call your local BRP dealership

250000004

Unavailable

79

Flat Washer 10 mm, Stainless

234001600

$1.15

80

Hex. Jam Nut M10

232100600

$2.22

81

THREADED PIVOT - Call your local BRP dealership

277000763

Unavailable

82

SUPPORT BUSHING - Call your local BRP dealership

277000844

Unavailable

83

Rubber Pad

293830071

Unavailable

84

ADJUSTER HANDLE - Call your local BRP dealership

277000764

Unavailable

85

Hex. Jam Nut M8

232180600

$0.67

86

Loctite 243, 10 ml

293800060

$21.49

87

Stopper Bushing

277000786

Unavailable

88

Steering Support

277000901

Unavailable

89

INSERT - Call your local BRP dealership

293450153

Unavailable

90

Arm Thrust | Includes 43 to 44

277000519

Unavailable

91

Hex. Elastic Stop Nut M6

232561600

$1.15

92

Ball Joint

277001180

$35.99

93

Hex. Screw M6 X 30

211000081

$3.59

94

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

95

Loctite 271, 10 ml

293800005

$26.99

96

Stainless Flat Washer M6

234061600

$0.33

97

Retainer Plate

277000845

Unavailable
