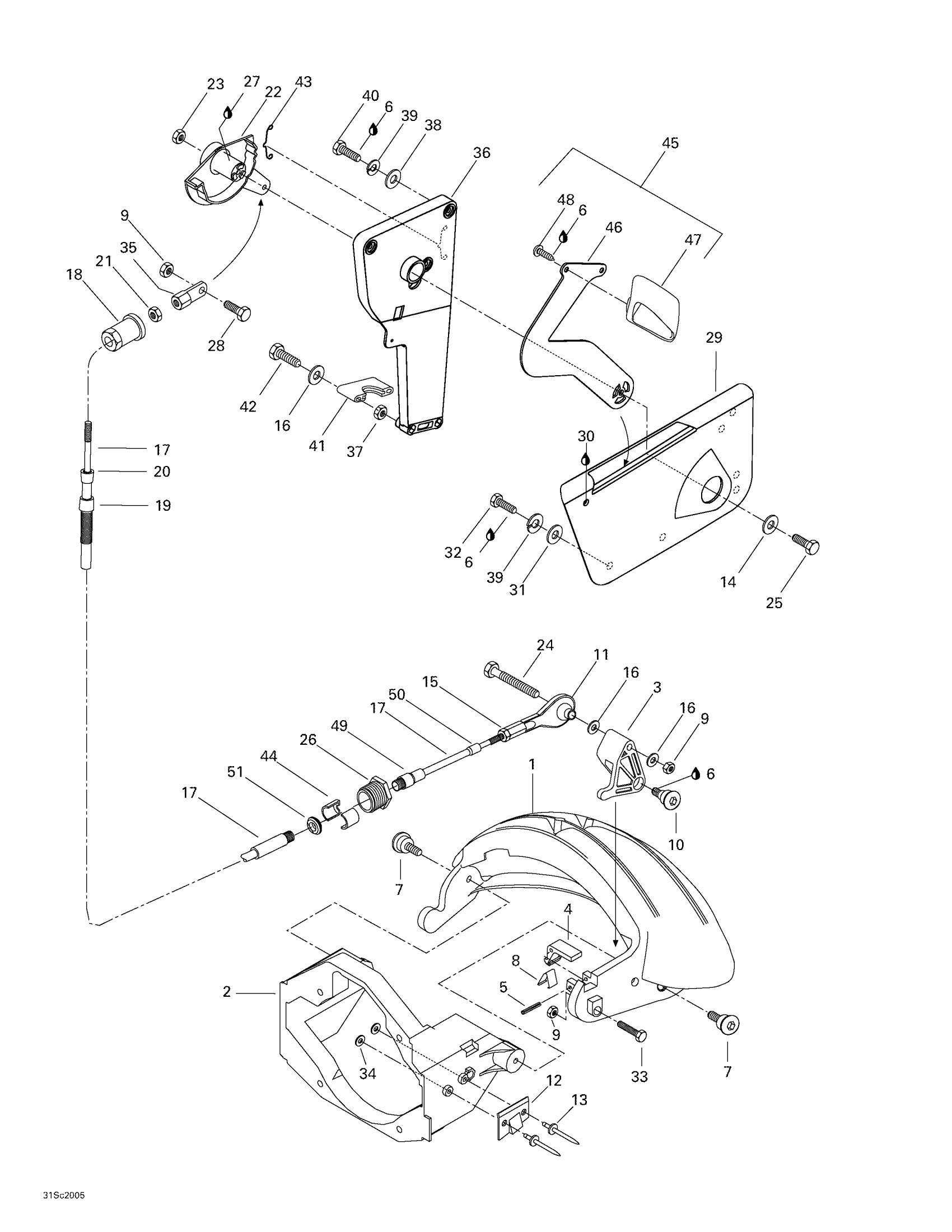

Sea-doo GTX DI, 5649/5659, 2000 05- Reverse Diagram

#

Description
Price

1

REVERSE GATE - Call your local BRP dealership

271000947

Unavailable

2

REVERSE GATE SUPPORT - Call your local BRP dealership

271000778

Unavailable

3

CABLE LEVER - Call your local BRP dealership

271000583

Unavailable

4

HOOK LEVER - Call your local BRP dealership

271000430

Unavailable

5

Pin

211400009

$1.68

6

Loctite 243, 10 ml

293800060

$21.49

7

Screw

211000007

Unavailable

8

Spring

271000431

$15.49

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

SCREW-SHOULDER M8 - Call your local BRP dealership

211000077

Unavailable

11

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

12

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

13

Pop Rivet 3/16"

293150043

$2.09

14

Stainless Flat Washer M6

234061600

$0.33

15

Hex. Nut

212100005

$1.35

16

Stainless Flat Washer M6

234061600

$0.33

17

REVERSE CABLE ASS'Y - Call your local BRP dealership | Includes 17 - 21.

277000757

Unavailable

18

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

19

Boot, Large

277000473

Unavailable

20

Boot, Small

277000466

Unavailable

21

Hex. Nut

212100005

$1.35

22

LEVER INTERIOR - Call your local BRP dealership | Includes 48 - 49.

271000585

Unavailable

23

Hex. Elastic Stop Nut M6

232561600

$1.15

24

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.59

26

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

27

Synthetic Grease, 400 G

293550010

Unavailable

28

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

29

Housing Reverse Handle

271001055

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable

32

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

33

Hex. Screw M6 X 25

207162560

$1.47

34

Flat Washer | XT

211200035

$0.55

35

Joint

277000646

Unavailable

36

Reverse Cable Support | Includes 38 - 39.

271000584

Unavailable

37

Hex. Elastic Stop Nut M6

232561600

$1.15

38

Flat Washer 5 mm, Stainless

234052600

$0.77

39

Helical Lock Washer M5

234151601

$1.15

40

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

41

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

42

Hex. Screw M6 X 50

207065060

$2.22

43

SPRING - Call your local BRP dealership

271000612

Unavailable

44

Half Ring

277000055

$9.49

45

Handle Reverse Ass'y | Includes 29 - 32.

271000586

Unavailable

46

Lever

271000613

Unavailable

47

Reverse Handle

271000614

Unavailable

48

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

49

Boot, Large

277000473

Unavailable

50

Boot, Small

277000466

Unavailable

51

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable
