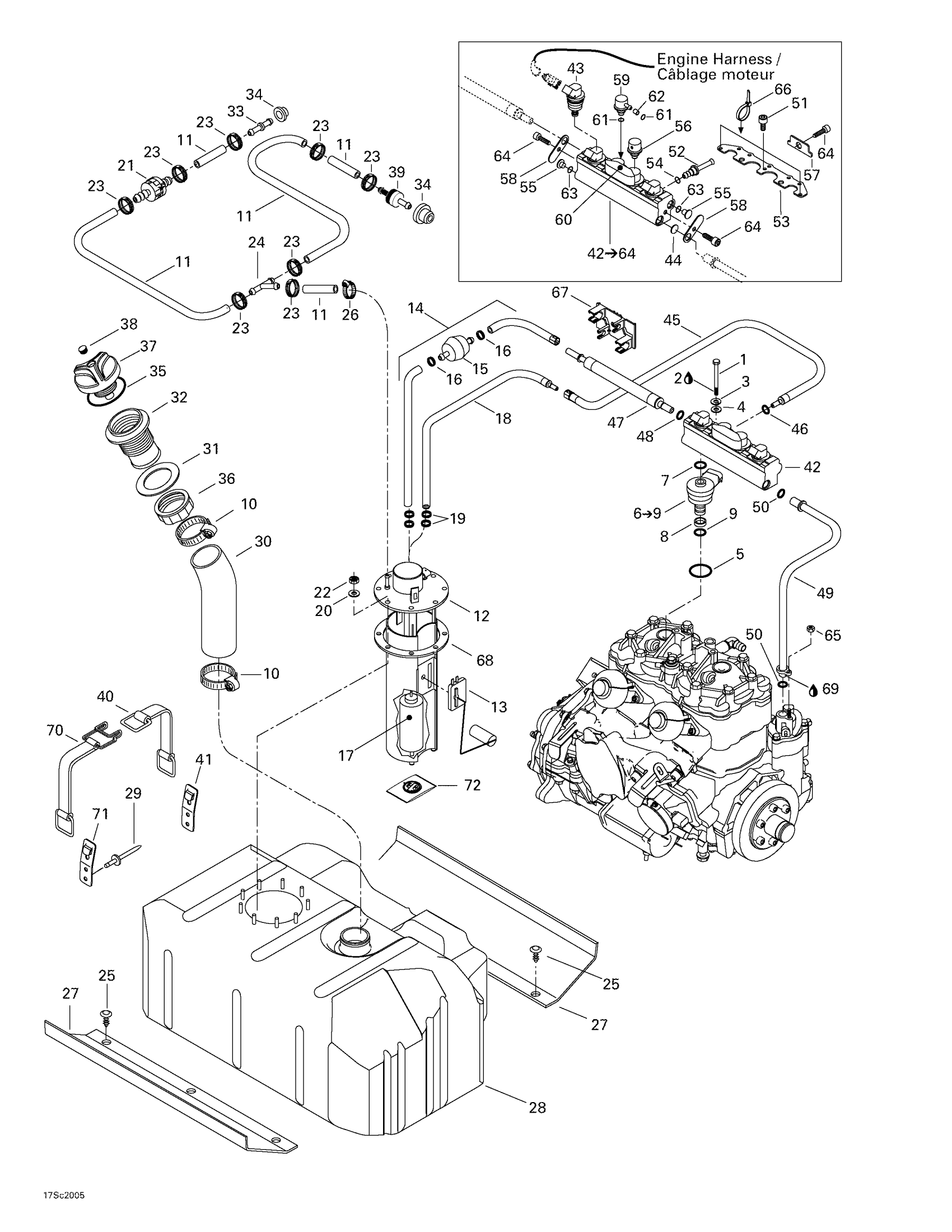

Sea-doo GTX DI, 5649/5659, 2000 Fuel System Diagram

#

Description
Price

1

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

2

Loctite 243, 10 ml

293800060

$21.49

3

Lock Washer 8 mm, Stainless

234181601

$0.52

4

Stainless, Flat Washer 8 mm

234081600

$0.52

5

O-Ring (5591/5592)

293300054

Unavailable

6

Injecteur D'Air*Injector-Air This part replaces 275500512.

219700275

$630.57

7

O-Ring (5591/5592)

293300066

$7.40

8

INJECTOR RING - Call your local BRP dealership

270600030

Unavailable

9

O-Ring

293300076

Unavailable

10

Tridon Clamp

293650023

$11.37

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Module Essence *Module-Fuel Ass'Y | Includes 20 - 24. This part replaces 275500540.

275500641

$1,199.22

13

Sensor Level

270600012

Unavailable

14

Fuel Feeding Hose Ass'y | Includes 14 - 16.

275500439

Unavailable

15

Fuel Filter

275500501

Unavailable

16

Oetiker Clamp | Europe

293650030

$4.96

17

Module Essence *Module-Fuel Ass'Y | Includes 20 - 24. This part replaces 275500540.

275500641

$1,199.22

18

Fuel Return Hose Ass'y

275500440

Unavailable

19

Oetiker Clamp | Europe

293650030

$4.96

20

Flat Washer 5 mm, Stainless

234052400

$2.69

21

Check Valve

275500505

$29.07

22

Elastic Stop Nut 5 mm

232551200

$1.40

23

Oetiker Clamp

293650042

$1.61

24

Y-Fitting

293710059

$9.40

25

Black, Dart

293730006

$0.93

26

Tridon Gear Clamp

293650170

$2.00

27

Rubber Pad

293830077

Unavailable

28

Fuel Tank

275500427

Unavailable

29

Avdel Rivet 3/16"

293150037

$0.54

30

Filler Neck Hose

275500377

Unavailable

31

Gasket

293250029

$13.85

32

Filler Neck, Fuel

275500231

$12.40

33

Straight Fitting

293710039

$6.75

34

Grommet

293720029

$1.30

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$11.51

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$26.09

38

Black, Snap Cap

293000034

$8.58

39

Check Valve

275500398

$9.84

40

Fuel Tank Strap

293850036

$15.64

41

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

42

FUEL DISTRIBUTOR - Call your local BRP dealership | Includes 42 - 64.

275500433

Unavailable

43

Fuel Injector

275500460

$292.51

44

Air Filter

275500457

Unavailable

45

Hose Ass'y | Includes 45 - 46.

275500448

Unavailable

46

O-Ring

293300070

Unavailable

47

Hose Ass'y | Includes 47 - 48.

275500447

Unavailable

48

O-RING - Call your local BRP dealership

293300069

Unavailable

49

Pressure Hose | INCLUDES 72 TO 73

270600022

Unavailable

50

O-Ring

293300070

Unavailable

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Air Return Adaptor

275500458

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

O-RING - Call your local BRP dealership

293300069

Unavailable

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Not Available As Spare Part - Friction Washer

Unavailable

57

RETAINER PLATE - Call your local BRP dealership

275500456

Unavailable

58

RETAINER PLATE - Call your local BRP dealership

275500455

Unavailable

59

Not Available As Spare Part - Friction Washer

Unavailable

60

Not Available As Spare Part - Friction Washer

Unavailable

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Not Available As Spare Part - Friction Washer

Unavailable

63

Not Available As Spare Part - Friction Washer

Unavailable

64

Socket Head Screw M6 X 12

205061260

$1.45

65

Hex. Elastic Stop Nut M6

232561600

$1.06

66

Tie Wrap 94 mm | 4X4

293750001

$0.96

67

Clamp Tie

291001399

Unavailable

68

Gasket

293250088

$12.57

69

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

70

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

71

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

72

Fuel Filter, Bosch

219700368

$36.54
