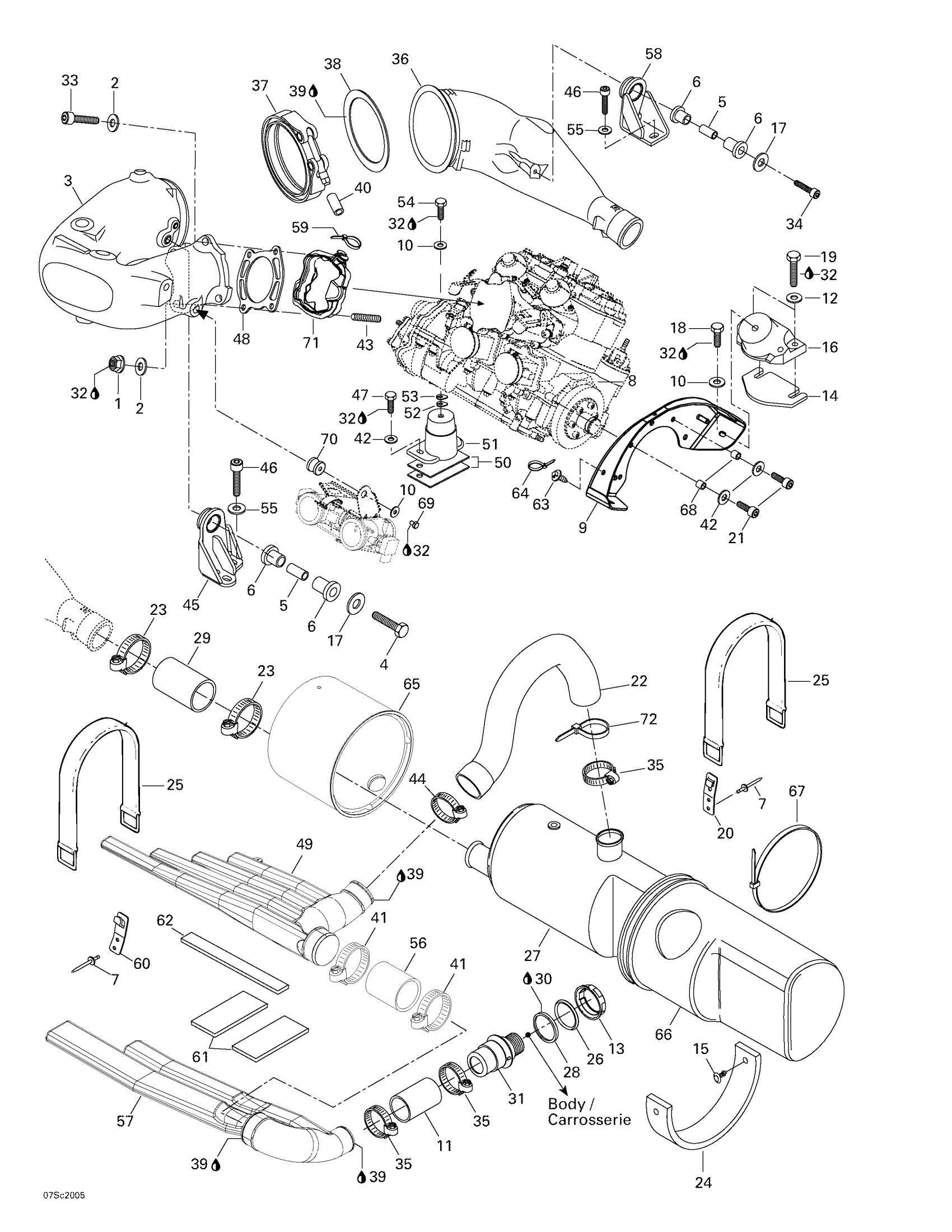

Sea-doo GTX DI, 5649/5659, 2000 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Flange Nut M10

233101600

$5.29

2

Flat Washer

211200051

$1.68

3

Head Pipe Ass'y | Includes 4 - 8.

274000767

Unavailable

4

SCREW-HEX.CAP-DIN.931A2 S.GRIP - Call your local BRP dealership

207204060

Unavailable

5

BUSHING - Call your local BRP dealership

274000861

Unavailable

6

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

7

Avdel Rivet 3/16"

293150037

$0.56

8

Rotax Engine 947 (Silver)

270000487

Unavailable

9

Engine Support

270000449

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Exhaust Hose

274000616

Unavailable

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Nut 72 mm

274000224

$16.34

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Black, Dart

414644300

$0.98

16

Rubber Mount, Black

270000421

Unavailable

17

Flat Washer 10 mm, Stainless

234002600

$2.22

18

Hex. Screw M8 X 16

207181660

Unavailable

19

Hex. Screw M8 X 40

207184060

$2.22

20

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

21

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

22

Exhaust Hose

274000830

Unavailable

23

Tridon Clamp

293650064

$8.29

24

Rubber Pad

293830069

Unavailable

25

Retainer Strap

293850097

$11.64

26

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

27

MUFFLER - Call your local BRP dealership

274000826

Unavailable

28

GASKET - Call your local BRP dealership

293250041

Unavailable

29

Exhaust Hose

274000875

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

Exhaust Hose, Outlet

274001391

$29.49

32

Loctite 243, 10 ml

293800060

$21.49

33

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

34

SCREW-SOCKET DIN.912A2 S.GRIP - Call your local BRP dealership

205504060

Unavailable

35

Tridon Clamp

293650064

$8.29

36

EXHAUST CONE, BLACK - Call your local BRP dealership

274000871

Unavailable

37

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

38

SEALING RING - Call your local BRP dealership

274000511

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

40

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

41

Tridon Clamp

204000079

$9.99

42

Stainless, Flat Washer 8 mm

234081600

$0.55

43

STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership

250300008

Unavailable

44

Tridon Clamp

293650179

$11.49

45

Support Pipe

274000662

Unavailable

46

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

47

Hex. Screw M8 X 40

207184060

$2.22

48

EXHAUST GASKET KIT - Call your local BRP dealership

295500815

Unavailable

49

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

50

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

51

Rubber Mount, Black

270000422

Unavailable

52

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

53

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

54

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

55

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

56

EXHAUST HOSE - Call your local BRP dealership

274000726

Unavailable

57

RESONATOR EXTENSION - Call your local BRP dealership

274000701

Unavailable

58

Pipe Support

274000777

Unavailable

59

Tie Wrap 142 mm

293750002

$1.25

60

Strap Clip

293850030

$11.12

61

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

62

Rubber Pad

274000785

Unavailable

63

Mount Dart

293730040

$1.04

64

Tie-Rap 180 mm

414115200

$0.11

65

MUFFLER COVER, FRONT - Call your local BRP dealership

274000796

Unavailable

66

Muffler Cover, Rear

274000799

Unavailable

67

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

68

BUSHING - Call your local BRP dealership

270000453

Unavailable

69

HEX. SCREW M8 X 12 - Call your local BRP dealership

207181260

Unavailable

70

Rubber Isolator

707000949

$11.49

71

PICK UP ENVELOPE - Call your local BRP dealership

274000862

Unavailable

72

Tie Wrap 368 mm

293750008

$1.04
