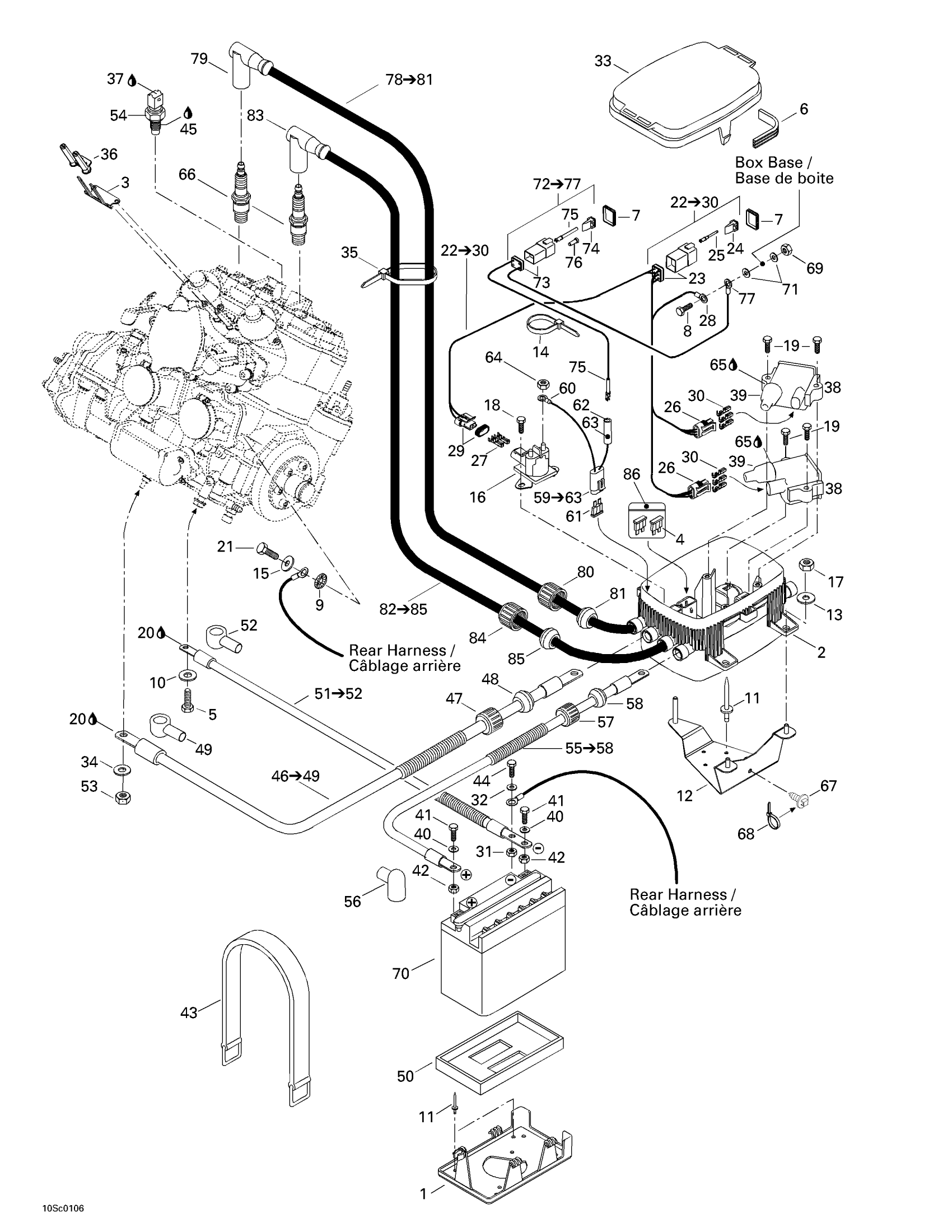

Sea-doo GTX DI, 5528/5529/5540/5541, 2001 Rear Electrical Box Diagram

#

Description
Price

1

BATTERY SUPPORT - Call your local BRP dealership

278001580

Unavailable

2

Electric box base

278001469

Unavailable

3

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

4

Fuse, 25 Amperes

278001443

$3.28

Fuse, 15 Amperes

278000343

$3.28

5

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

6

GASKET - Call your local BRP dealership

278001173

Unavailable

7

Gasket

293200030

Unavailable

8

Hex. Screw M6 X 16

207161660

$1.59

9

External Serrated Lock Washer 6 mm

234461608

$1.15

10

Flat Washer 10 mm, Stainless

234001600

$1.15

11

Avdel Rivet 3/16"

293150037

$0.56

12

Electric Box Support

278001487

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Tie Wrap 142 mm

293750002

$1.25

15

Stainless Flat Washer M6

234061600

$0.33

16

Starter Relay

278003012

$42.49

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Hex. Flange Screw M6 X 10

210261040

$1.48

19

SCREW-TAPP.HEX.ISO.1479F - Call your local BRP dealership

209463840

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

22

Box Harness | Includes 17 to 25

278001458

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$19.99

24

Female Lock, 6 Circuits

278000735

$3.19

25

Male Terminal

278000631

$4.39

26

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

27

Female Terminal

278001114

$3.19

28

Open Barrel Terminal

278001392

$4.79

29

Male Connector, 2 Circuits

278001113

$16.86

30

FEMALE TERMINAL - Call your local BRP dealership

278001468

Unavailable

31

Hex. Elastic Stop Nut M6

232561600

$1.15

32

Stainless Flat Washer M6

234061600

$0.33

33

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

34

Stainless Flat Washer M6

234061600

$0.33

35

Tie Wrap 142 mm

293750002

$1.25

36

INSULATOR - Call your local BRP dealership

278001512

Unavailable

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

IGNITION COIL - Call your local BRP dealership

278001451

Unavailable

39

PROTECTOR CAP - Call your local BRP dealership

278001470

Unavailable

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

$0.74

42

Hex. Nut M6

232061414

$0.53

43

Retainer Strap

293850097

$11.64

44

Hex. Cap Screw M6 X 12

207161260

$1.26

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

46

STARTER CABLE (RED) - Call your local BRP dealership | Includes 33 - 36.

278001457

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Battery Lower Pad

278001234

Unavailable

51

Ground Cable, Black

278001462

Unavailable

52

Wire Cap (Black)

278001491

Unavailable

53

Hex. Elastic Stop Nut M6

232561600

$1.15

54

Temperature Sensor

278002895

$39.99

55

Battery Positive Cable (Red) | Includes 55 - 58.

278001459

Unavailable

56

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

57

Electric Wire Cap

278000100

Unavailable

58

GROMMET - Call your local BRP dealership

278000098

Unavailable

59

Fuse Harness, 30 Amperes | Includes 37 to 41

278001453

Unavailable

60

Open Barrel Terminal

278001392

$4.79

61

Fuse, 30 Amperes

410917200

$3.28

62

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

63

Deutsch Joint Housing

515175259

Unavailable

64

Hex. Elastic Stop Nut M6

232561600

$1.15

65

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

66

Spark Plug NGK Zfr4f-11

278001650

$6.35

67

Mount Dart

293730040

$1.04

68

Tie-Rap 180 mm

414115200

$0.11

69

Hex. Elastic Stop Nut M6

232561600

$1.15

70

Battery 19A | Includes 5 to 8

278001756

$153.36

71

Flat Washer 6 mm

234062410

$0.77

72

ELECTRIC BOX HARNESS ASS'Y - Call your local BRP dealership | Includes 26 to 30

278001494

Unavailable

73

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

74

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

75

MALE TERMINAL - Call your local BRP dealership

515175261

Unavailable

76

Sealing Cap

293000052

$3.19

77

Open Barrel Terminal

278001392

$4.79

78

COIL CABLE, 735 MM - Call your local BRP dealership | Includes 31 to 33

278001454

Unavailable

79

Spark Plug Cap

278001452

Unavailable

80

Electric Wire Cap

278000100

Unavailable

81

Grommet

278000682

Unavailable

82

COIL CABLE, 635MM - Call your local BRP dealership | Includes 34 to 36

278001466

Unavailable

83

Spark Plug Cap

278001452

Unavailable

84

Electric Wire Cap

278000100

Unavailable

85

Grommet

278000682

Unavailable

86

Not Available As Spare Part - Friction Washer

Unavailable
