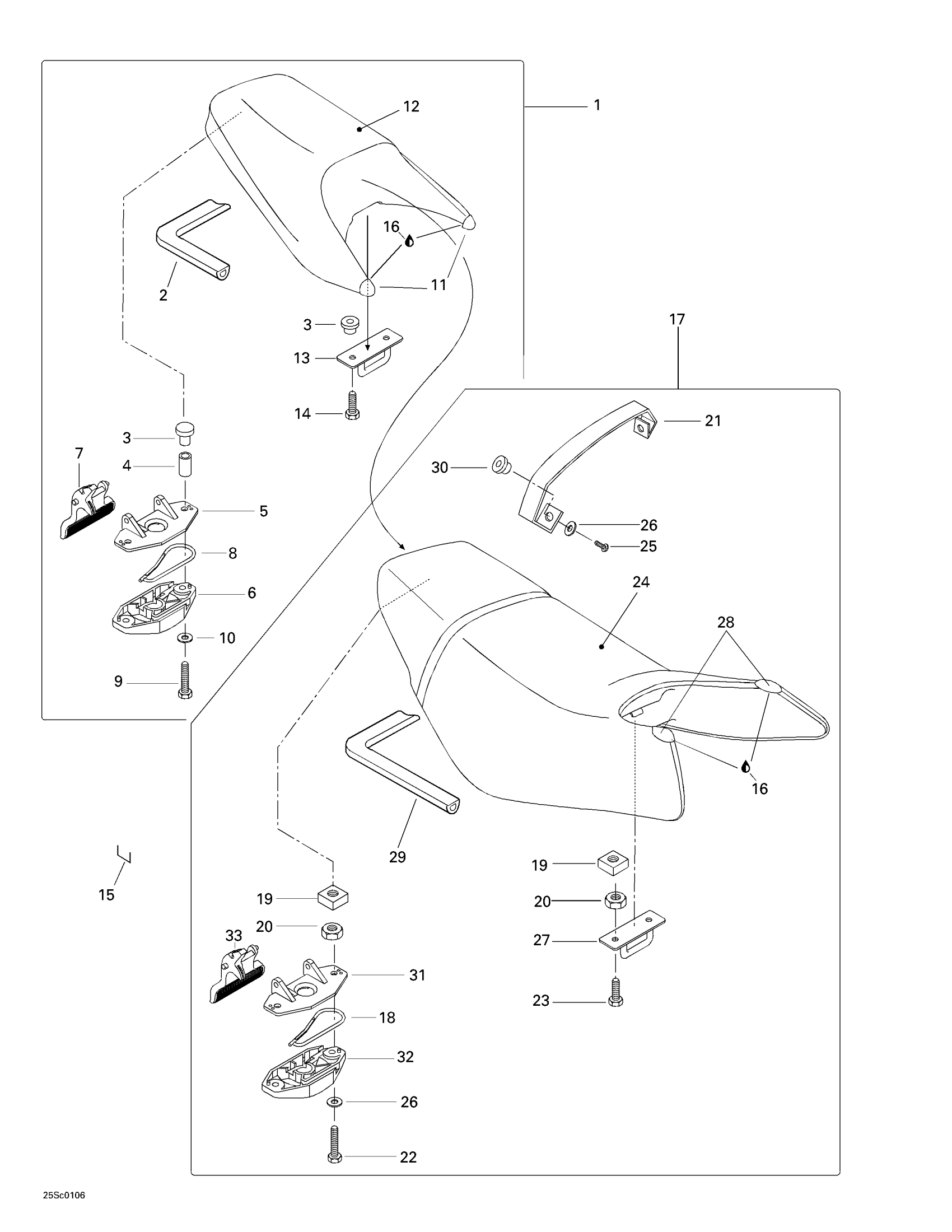

Sea-doo GTX DI, 5528/5529/5540/5541, 2001 Seat Rear Diagram

#

Description
Price

1

Rear Seat Ass'y (Mazalan Blue) | GTX (BLUE).

269000630

Unavailable

Rear Seat Ass'y (Viper Red) | Includes 1 - 14. GTX (RED).

269000620

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$135.79

3

Nut Welded, M6

293100003

$7.25

4

SPACER - Call your local BRP dealership

291000532

Unavailable

5

Latch Ass'y

269700109

$23.10

6

Latch Ass'y

269700109

$23.10

7

Latch Ass'y

269700109

$23.10

8

Latch Spring

269700017

$8.34

9

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.73

10

Stainless Flat Washer M6

234061600

$0.28

11

RH Rear Seat Corner

269000636

Unavailable

Rear Seat Corner RH (Viper Red) | GTX (RED).

269000632

Unavailable

LH Rear Seat Corner

269000637

Unavailable

Rear Seat Corner LH (Viper Red) | GTX (RED).

269000633

Unavailable

12

Rear Seat Cover

269000635

Unavailable

Rear Seat Cover (Viper Red) | GTX (RED).

269000612

Unavailable

13

Hook (Seat Base)

291001357

Unavailable

14

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.57

15

Staple

293730005

Unavailable

16

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

17

Front Seat Ass'y (Silver) | GTX (BLUE).

269000721

Unavailable

Front Seat Ass'y (Silver) | Includes 17 - 33. GTX (RED).

269000615

Unavailable

18

Latch Spring

269700017

$8.34

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

20

Hex. Nut M6

232061600

$1.04

21

Strap (Silver)

269000629

Unavailable

22

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

23

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

24

Front Seat Cover (Silver) | GTX (BLUE).

269000747

Unavailable

Front Seat Cover

269000616

Unavailable

25

SOCKET HEAD SCREW M6, SCOTCH GRIP - Call your local BRP dealership

205961660

Unavailable

26

Stainless Flat Washer M6

234061600

$0.28

27

Hook (Seat Base)

291001357

Unavailable

28

Seat Corner (Silver)

269000617

Unavailable

29

Was 293200017 Neoprene Seal

219704365

$135.79

30

Nut Welded, M6

293100003

$7.25

31

Latch Ass'y

269700109

$23.10

32

Latch Ass'y

269700109

$23.10

33

Latch Ass'y

269700109

$23.10
