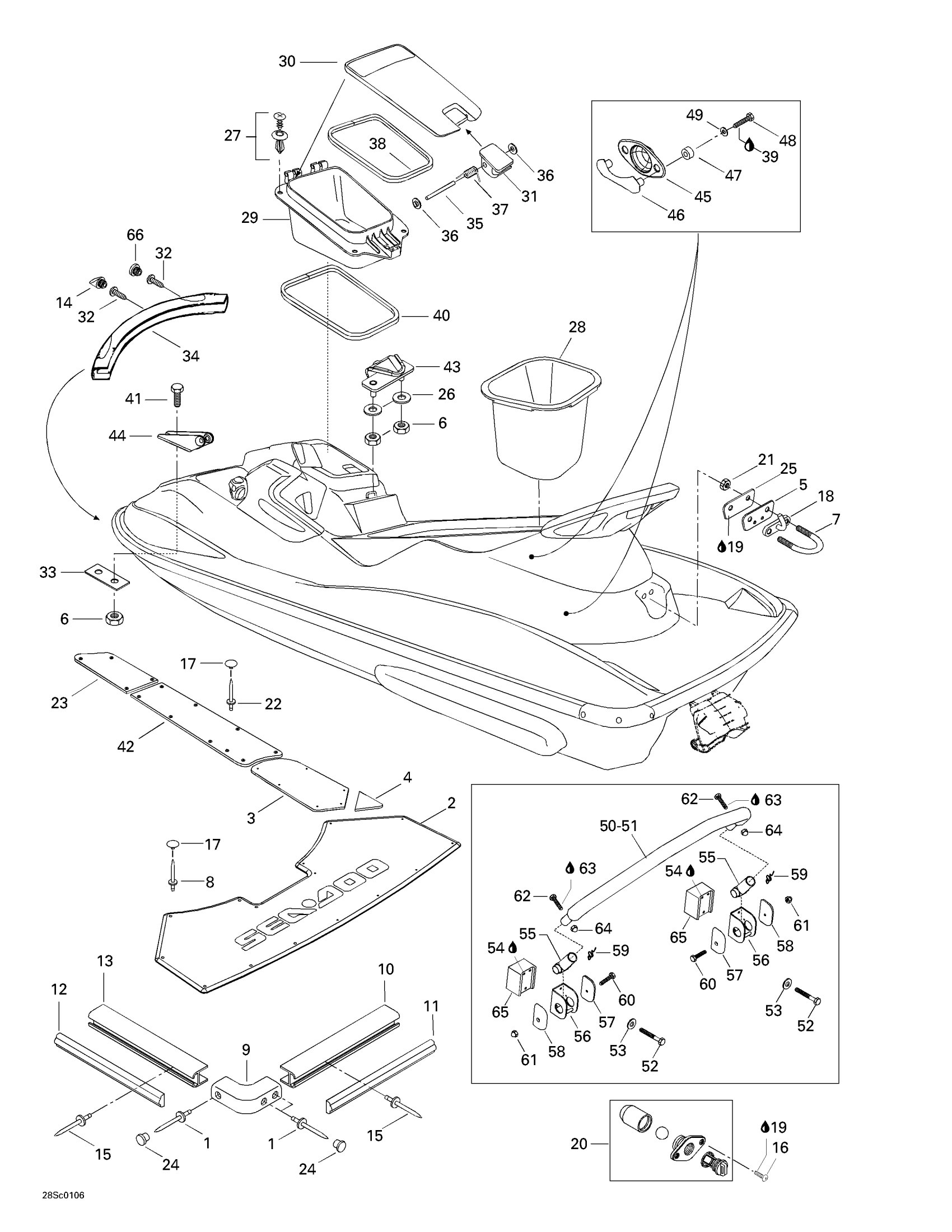

Sea-doo GTX DI, 5528/5529/5540/5541, 2001 Body, Rear View Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.37

2

Rear Carpet (Black)

291001053

Unavailable

3

RH Rear Carpet (Black)

291001051

Unavailable

LH Rear Carpet (Black)

291001052

Unavailable

4

RH Anti-Skid Carpet

291001252

Unavailable

LH Anti-Skid Carpet

291001253

Unavailable

5

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Bumper Corner

291002244

$48.99

10

Rear Bumper (Black)

291001226

Unavailable

11

Rear Bumper Trim (Blue)

291001543

Unavailable

REAR BUMPER TRIM - Call your local BRP dealership

291001227

Unavailable

12

Side Bumper Trim (Blue)

291001542

Unavailable

SIDE BUMPER TRIM - Call your local BRP dealership

291001225

Unavailable

13

Black, Side Bumper

204050270

$179.99

14

Bumper Plug, Black

291001040

$7.39

15

Pop Rivet 3/16"

293150005

$0.52

16

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

17

Black, Snap Cap

293000014

$1.09

18

Hook | Package LTD

291002351

$69.99

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

DRAIN ASSY - Call your local BRP dealership

292000685

Unavailable

21

Hex. Elastic Nut M8

232581600

$1.48

22

Rivet 1/8"

293150016

$0.40

23

RH Front Carpet (Black)

291001032

Unavailable

LH Front Carpet (Black)

291001033

Unavailable

24

Bumper Plug, Black

291000339

$2.99

25

Finition Plate

291000544

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership

211000088

Unavailable

28

Rear Tray (Seat)

269500992

Unavailable

29

Box Gloves

269500439

Unavailable

30

Door-Box Gloves

269500753

Unavailable

31

Latch, Black

269500553

$21.99

32

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

33

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

34

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

35

Pin

211400008

$9.10

36

Push Nut | Not shown

211100002

$2.19

37

Latch Spring

291000922

$7.39

38

GASKET - Call your local BRP dealership

293250060

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

Seal 1000Mm Long

219704373

$8.26

41

Hex. Screw M6 X 25

207162560

$1.47

42

RH Center Carpet (Black)

291001030

Unavailable

LH Center Carpet (Black)

291001031

Unavailable

43

Seat Hook

291001479

Unavailable

44

SHOCK SUPPORT - Call your local BRP dealership

291000855

Unavailable

45

CARGO HOOK BASE - Call your local BRP dealership

291001195

Unavailable

46

HOOK CARGO CLEATS - Call your local BRP dealership

291001196

Unavailable

47

Spacer

291001203

$13.49

48

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

49

Flat Washer 5 mm, Stainless

234052600

$0.77

50

Stair Tube | Includes 28 - 29.

292000590

Unavailable

51

PROTECTOR TUBE - Call your local BRP dealership | GTI LE RFI

292000593

Unavailable

52

SCREW-SOCKET DIN.912A2 S.GRIP - Call your local BRP dealership

205567060

Unavailable

53

Flat Washer M6, Stainless

234062600

$0.77

54

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Support Ass’Y

292000539

Unavailable

57

RH Support Cap

292000540

Unavailable

58

LH Support Cap

292000548

Unavailable

59

RECALL SPRING - Call your local BRP dealership

292000541

Unavailable

60

Phillips Screw

211000186

Unavailable

61

NUT-LOCKING 1/4-20 - Call your local BRP dealership

211100061

Unavailable

62

Socket Head Screw M6 X 35

205063560

$2.22

63

Loctite 243, 10 ml

293800060

$21.49

64

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.34

65

Spacer

292000788

Unavailable

66

Bumper Plug, Black

291001519

$5.49
