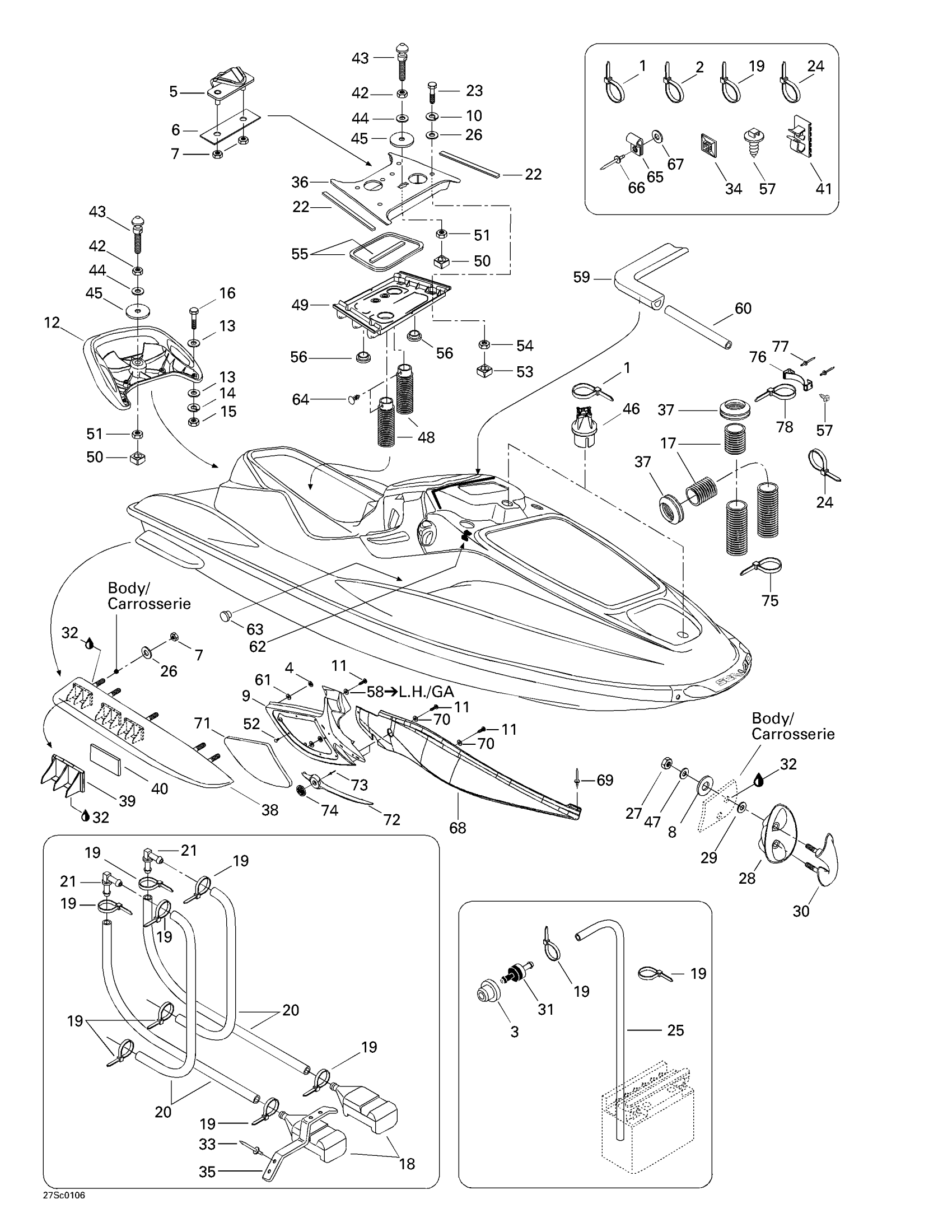

Sea-doo GTX DI, 5528/5529/5540/5541, 2001 Body, Front View Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.11

2

Tie Wrap 368 mm

293750008

$1.04

3

Grommet

293720029

$1.59

4

Flat Washer, Stainless/Neoprene

211200055

$0.73

5

Seat Hook

291001479

Unavailable

6

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Rubber Washer

293830037

$2.68

9

RH Intake Grille (Starboard)

269500715

Unavailable

LH Intake Grille (Port)

269500714

Unavailable

10

Lock Washer Helical M6

234161601

$1.15

11

Hex. Flange Screw K40 X 16

241141660

$1.48

12

Grab Handle (Black) | Includes 42 - 46.

295500369

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Lock Washer Helical M6

234161601

$1.15

15

Hex. Nut M6

232061600

$1.15

16

Hex. Screw M6 X 40

207064060

$1.69

17

Tube Vent

291001636

Unavailable

18

Bailer Screen

292000688

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$1.03

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

23

Hex. Screw M6 X 70

207067060

$5.61

24

Tie Wrap 142 mm

293750002

$1.25

25

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

Hex. Elastic Nut M8

232581600

$1.48

28

Shell (Blue) | GTX 4-TEC 5593/5594.

292000638

Unavailable

Black Shell

292001837

$20.99

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

Eye-Bow (Black) This part replaces 292000708.

292000452

$42.99

Eye-Bow (Black) This part replaces 292000708.

292000452

$42.99

31

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Avdel Rivet 3/16"

293150037

$0.56

34

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

35

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

36

Bridge Upper

291000851

Unavailable

37

VENT ADAPTOR - Call your local BRP dealership

291001100

Unavailable

38

RH SPONSON - Call your local BRP dealership

292000594

Unavailable

LH SPONSON - Call your local BRP dealership

292000595

Unavailable

39

Insert

293450149

Unavailable

40

CUSHION - Call your local BRP dealership

292000414

Unavailable

41

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

42

Hex. Jam Nut M10

232100600

$2.22

43

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

44

Flat Washer 10 mm, Stainless

234002600

$2.22

45

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

46

GROMMET - Call your local BRP dealership

293720042

Unavailable

47

Flat Washer 8 mm, Stainless

250200175

$3.06

48

Rear Vent Tube

291001441

Unavailable

49

BRIDGE LOWER - Call your local BRP dealership

291001281

Unavailable

50

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

51

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

52

Black, Dart

414644300

$0.98

53

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

54

Hex. Nut M6

232061600

$1.15

55

Neoprene Seal (1PAC=3M)

219704364

$27.49

56

Plug

293000049

Unavailable

57

Mount Dart

293730040

$1.04

58

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable

59

Was 293200017 Neoprene Seal

219704365

$149.99

60

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

61

Push Nut

250100008

Unavailable

62

Protector

291001512

Unavailable

63

PIPE CAP - Call your local BRP dealership

293000089

Unavailable

64

Black, Dart

293730011

$0.99

65

CLAMP TIE - Call your local BRP dealership

293750021

Unavailable

66

Pop Rivet 3/16"

293150005

$0.52

67

Flat Washer, Emhart

213200016

$0.72

68

RH Moulding

291001404

Unavailable

LH Moulding

291001403

Unavailable

69

Avdel Rivet 3/16"

293150037

$0.56

70

Flat Washer 5 mm, Stainless

234052600

$0.77

71

RH Knee Pad

269000670

Unavailable

LH Knee Pad

269000671

Unavailable

72

FINITION PLATE - Call your local BRP dealership

269500716

Unavailable

73

Pop Rivet 3/16"

293150008

$0.50

74

BRP Logo 48mm

516008738

$16.99

75

Tie Rap 394 mm

293750023

Unavailable

76

Support

274000891

Unavailable

77

Pop Rivet 3/16"

293150043

$2.09

78

Tie Rap

293750022

Unavailable
