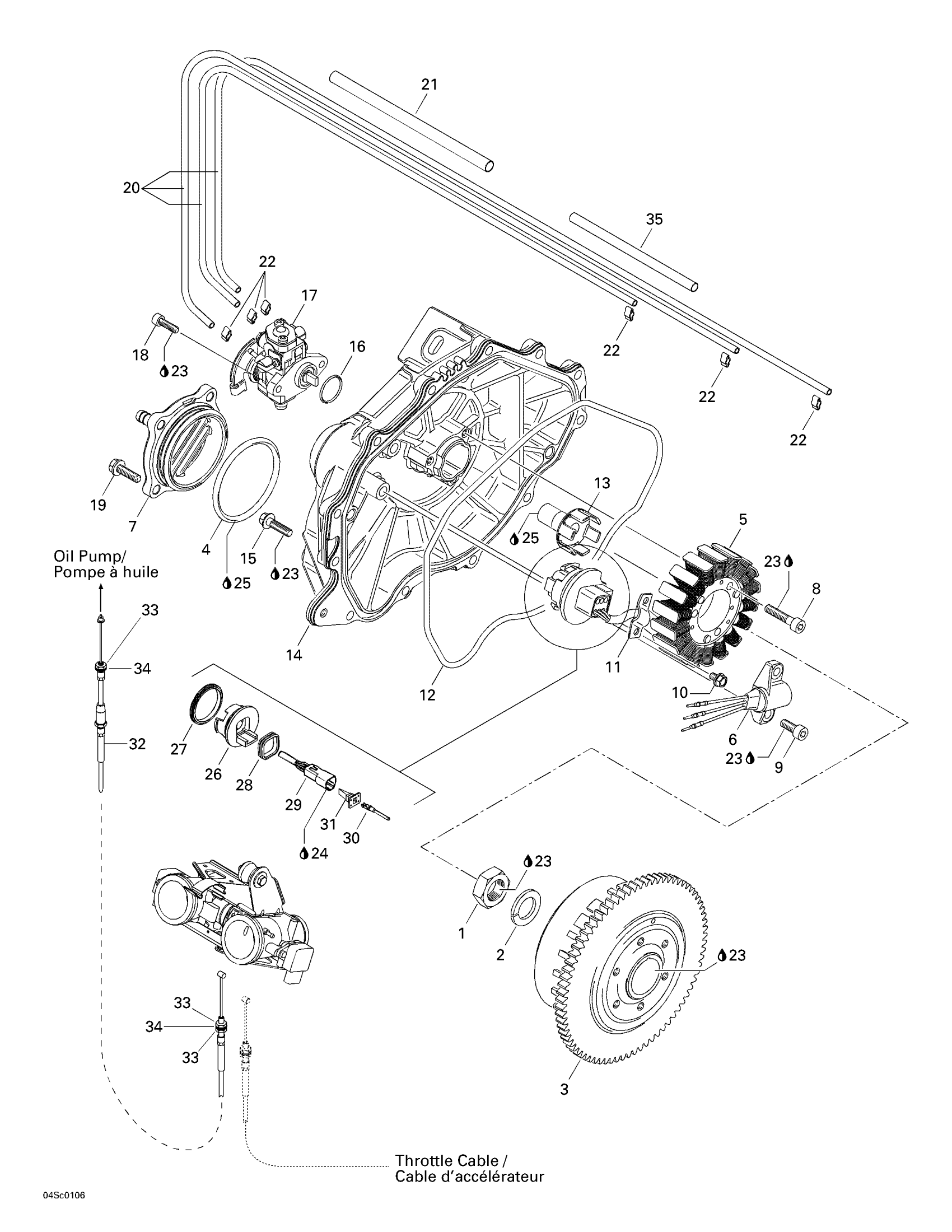

Sea-doo GTX DI, 5528/5529/5540/5541, 2001 Magneto, Oil Pump Diagram

#

Description
Price

1

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

2

Lock Washer 18 mm

290945757

Unavailable

3

FLYWHEEL HUB (5591/5592) - Call your local BRP dealership

290966820

Unavailable

4

O-RING - Call your local BRP dealership

420850390

Unavailable

5

STATOR PLATE ASS'Y (5591/5592) - Call your local BRP dealership

290888651

Unavailable

6

Sensor Ass'y

290966760

Unavailable

7

Waterchannel Cover

290811225

Unavailable

8

Socket Head Screw M6 X 35 This part replaces 420640051.

420640052

$5.61

9

Hex.Screw M6 X 20

420441311

$5.18

10

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

Unavailable

11

Retainer Plate

290853080

Unavailable

12

O-Ring

290931690

Unavailable

13

OIL PUMP SHAFT - Call your local BRP dealership

290837395

Unavailable

14

Ignition Cover

290811421

Unavailable

15

Hex. Flange Screw M6 x 25

290240033

Unavailable

16

O-RING - Call your local BRP dealership

293300018

Unavailable

17

OIL PUMP ASS'Y - Call your local BRP dealership

420888541

$309.99

18

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

19

Tapping Screw M6 x 20

290941253

Unavailable

20

Oil Hose 1500Mm Long

219704404

$17.26

21

Protection Hose

290960205

Unavailable

22

Clamp

293650105

$4.44

23

Loctite 243, 10 ml

293800060

$21.49

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

Dow Corning 111, 150 g

413707000

$59.99

26

Adaptor

270000138

Unavailable

27

Gasket

293300033

Unavailable

28

Gasket

293200030

Unavailable

29

Male Terminal Housing, 6 Circuits

710001539

$19.99

30

Male Terminal

278000631

$4.39

31

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

32

Injection Cable | Includes 28 to 30

270000546

$58.99

33

Hex. Nut M6

232160600

$1.15

34

Hex. Nut M6

232061600

$1.15

35

Protection Hose

290260465

Unavailable

36

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888134

Unavailable

37

Cylinder Gasket Set (Not Shown)

290888139

Unavailable
