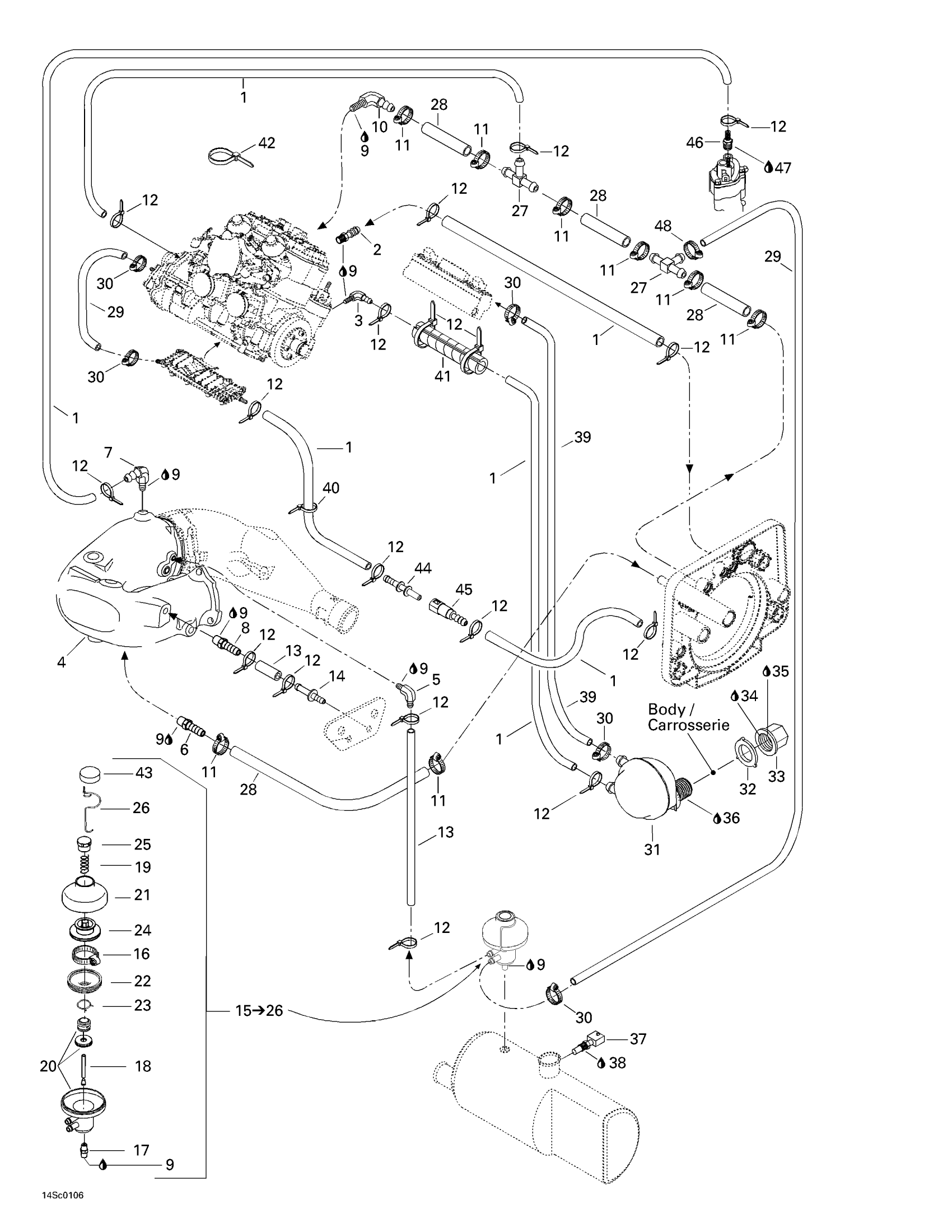

Sea-doo GTX DI, 5528/5529/5540/5541, 2001 Cooling System Diagram

#

Description
Price

1

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

2

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

3

Elbow Fitting 90°

293700022

Unavailable

4

Head Pipe | INCLUDES 1 TO 5

274000927

Unavailable

5

Elbow Fitting 90°

293710048

Unavailable

6

Male Connector | With Catalyst

293710021

$14.23

7

Elbow Fitting

293700016

Unavailable

8

Male Connector

293710037

$10.49

9

Was 293800013 Loctite 56765

219704454

$65.99

10

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

11

Tridon Gear Clamp

293650172

$3.09

12

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Hose 6 Mm 15000Mm Long

219704360

$132.49

14

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

15

Pressure Regulator Ass'y | Includes 15 - 27.

274000897

Unavailable

16

Rivalair Clamp

293650065

Unavailable

17

MALE CONNECTOR - Call your local BRP dealership

293700010

Unavailable

18

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

19

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Valve Cover

420911552

$38.99

22

Bellow

420260721

$51.99

23

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Adjuster Screw

420241221

$14.22

26

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

27

T-Fitting

293710116

$17.62

28

Was 276000001 Hose 12.5 mm

219704394

$51.99

29

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

30

Tridon Gear Clamp

293650170

$1.99

31

Noise Reducer

270000482

Unavailable

32

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

33

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

34

Was 293800041 Loctite Primer 7649

219704458

$39.99

35

Loctite 243, 10 ml

293800060

$21.49

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Temperature Sensor

278002895

$39.99

38

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

39

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

40

Tie-Rap 180 mm

414115200

$0.11

41

Tubing 10 MM 1000MM Long

219704407

$2.79

42

Tie Wrap 142 mm

293750002

$1.25

43

Cover Screw

274000903

Unavailable

44

Quick Male Fitting

275500435

Unavailable

45

QUICK FEMALE FITTING - Call your local BRP dealership

275500436

Unavailable

46

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

47

Was 293800013 Loctite 56765

219704454

$65.99

48

Crimp Clamp

293650053

$3.09
