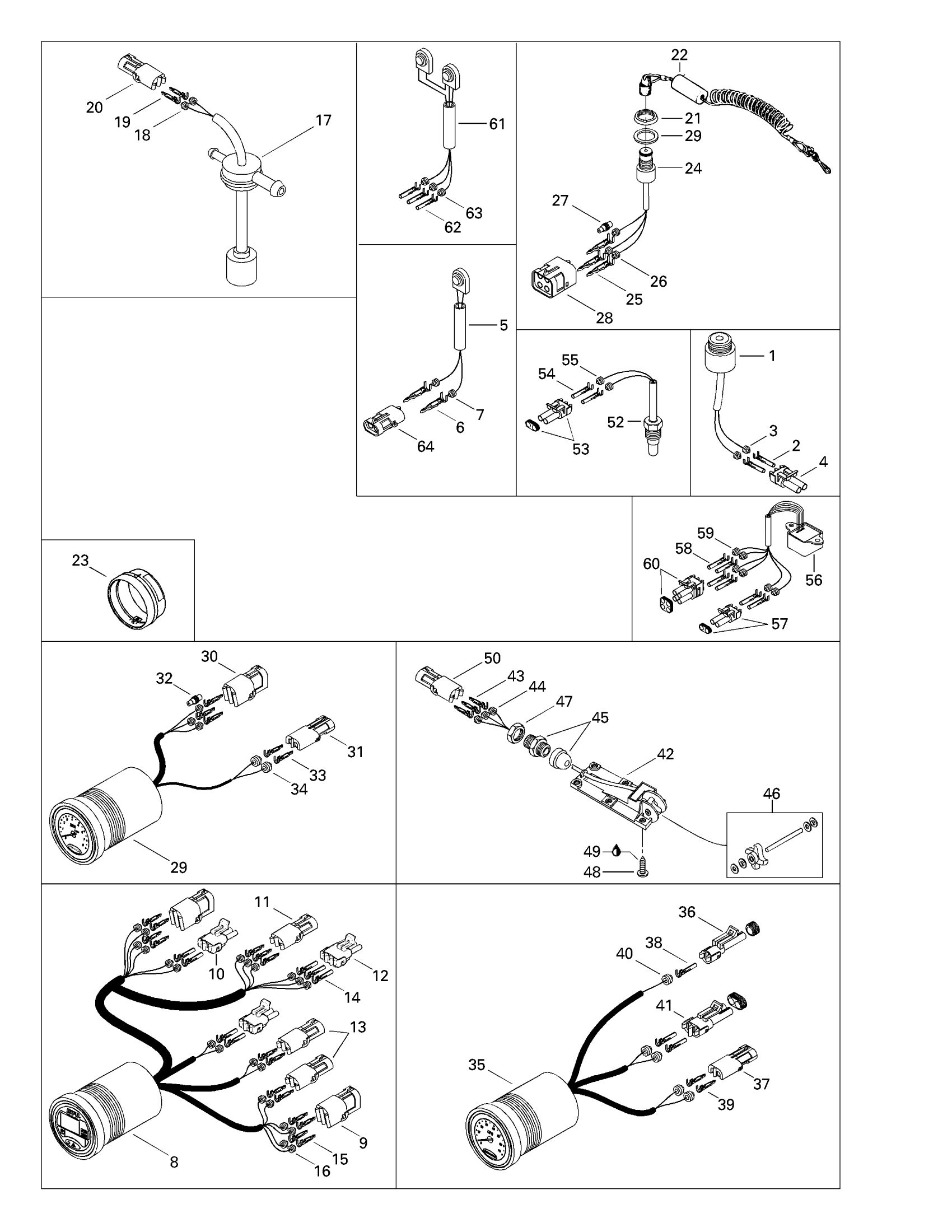

Sea-doo GTX, 5642, 1997 Electrical Accessories Diagram

#

Description
Price

1

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

2

Female Terminal

278000223

$2.93

3

Wire Seal

278000218

$4.00

4

Male Connector, 2 Circuits

278000220

$12.66

5

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

278001115

Unavailable

6

Male Terminal | XT Models

278000222

$2.93

7

Wire Seal

278000218

$4.00

8

Info Gauge | Includes 8 - 16.

278001036

Unavailable

9

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

10

Male Connector, 2 Circuits

278000220

$12.66

11

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

12

Male Housing, 3 Circuits

278000273

$8.72

13

Female Housing, 2 Circuits

278000217

$8.72

14

Female Terminal

278000223

$2.93

15

Male Terminal | XT Models

278000222

$2.93

16

Wire Seal

278001065

$5.85

17

Oil Level Sensor

278000478

Unavailable

18

Wire Seal

278000218

$4.00

19

Male Terminal | XT Models

278000222

$2.93

20

Female Housing, 2 Circuits

278000217

$8.72

21

Safety Nut (DESS Switch)

278002963

$3.12

22

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

23

Gauge Support

293720047

Unavailable

24

Safety Switch | Includes 15 - 19.

278000977

Unavailable

25

Male Terminal | XT Models

278000222

$2.93

26

Wire Seal

278000218

$4.00

27

Wire Seal

278000216

$2.93

28

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

29

Tachometer | Includes 29 - 34.

278001051

Unavailable

30

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

31

Female Housing, 2 Circuits

278000217

$8.72

32

Wire Seal

278000216

$2.93

33

Male Terminal | XT Models

278000222

$2.93

34

Wire Seal

278001065

$5.85

35

Speedometer | Includes 35 - 41.

278001037

Unavailable

36

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

37

Female Housing, 2 Circuits

278000217

$8.72

38

Female Terminal

278000223

$2.93

39

Male Terminal | XT Models

278000222

$2.93

40

Wire Seal

278001065

$5.85

41

Male Connector, 2 Circuits

278000220

$12.66

42

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

43

Male Terminal | XT Models

278000222

$2.93

44

Wire Seal

278000218

$4.00

45

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

46

Paddle Wheel Kit

295500108

Unavailable

47

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

48

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

49

Loctite 243, 10 ml

293800060

$21.49

50

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

51

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

52

Temperature Sensor | Includes 55 - 58.

278000851

Unavailable

53

Male Connector, 2 Circuits

278000220

$12.66

54

Female Terminal

278000223

$2.93

55

Wire Seal

278000218

$4.00

56

Compass (Incl. 60,61,62,63)

278001057

Unavailable

57

Male Connector, 2 Circuits

278000220

$12.66

58

Female Terminal

278000223

$2.93

59

Wire Seal

278000218

$4.00

60

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

61

Gauge Switch Ass'y

278000854

Unavailable

62

Female Terminal

278000223

$2.93

63

Wire Seal

278000218

$4.00

64

Female Housing, 2 Circuits

278000217

$8.72
