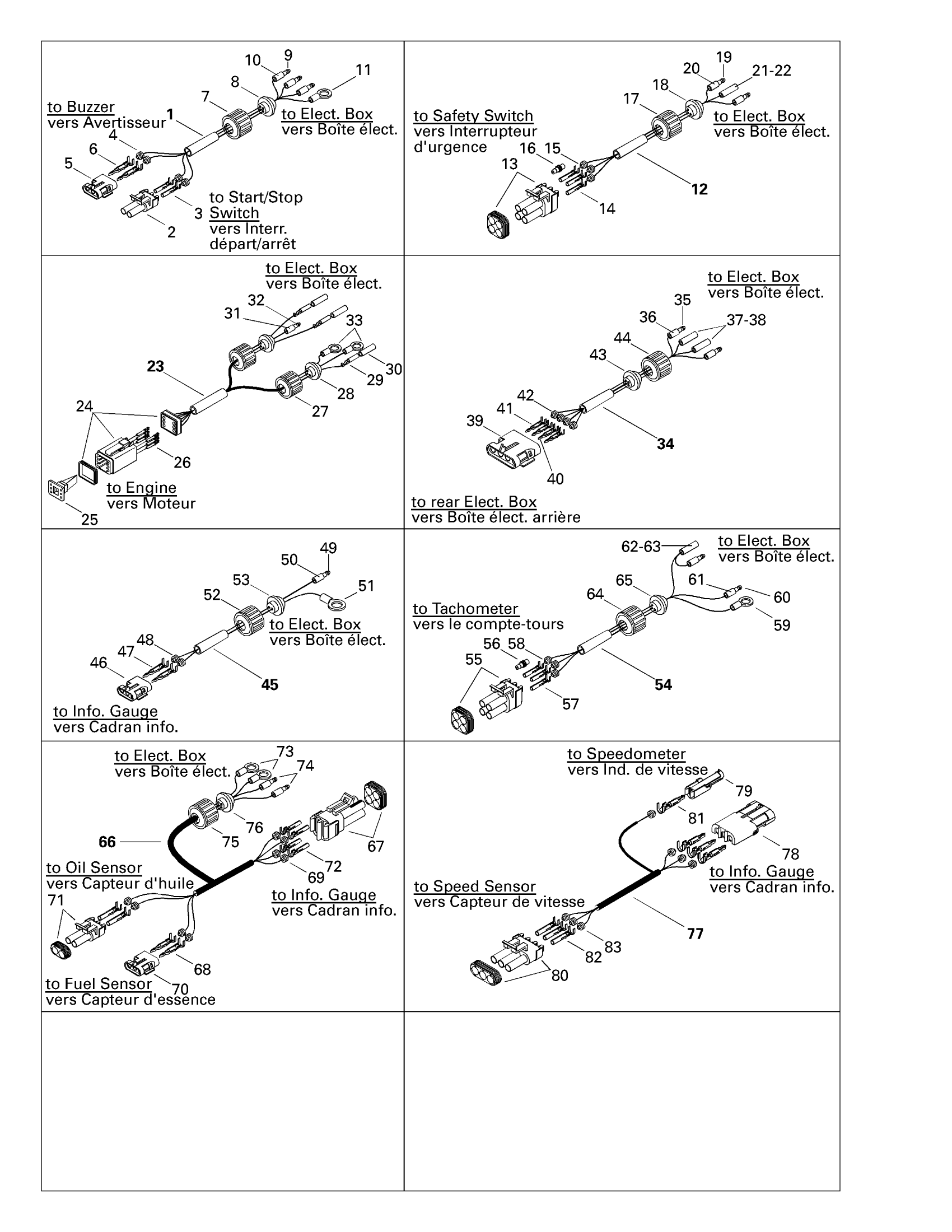

Sea-doo GTX, 5642, 1997 Electrical Harness Diagram

#

Description
Price

1

4 Ways Buzzer Start/Stop Harness | Includes 1 - 11.

278001095

Unavailable

2

Male Connector, 2 Circuits

278000220

$11.02

3

Female Terminal

278000223

$2.55

4

Wire Seal

278000218

$3.48

5

Female Housing, 2 Circuits

278000217

$7.59

6

Male Terminal | XT Models

278000222

$2.55

7

Electric Wire Cap

278000100

Unavailable

8

Grommet, 4 Circuit, Red

570026800

Unavailable

9

Male Terminal

278000230

$3.48

10

Insulated Sheath

278001008

$3.20

11

Open Barrel

278000992

$1.79

12

Safety Switch/Antitheft Harness | Includes 12 - 22.

278001099

Unavailable

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Female Terminal

278000223

$2.55

15

Wire Seal

278000218

$3.48

16

Wire Seal

278000216

$2.55

17

Electric Wire Cap

278000100

Unavailable

18

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

19

Male Terminal

278000230

$3.48

20

Insulated Sheath

278001008

$3.20

21

Female Terminal | DS 650 X

278001009

$2.55

22

Insulated Sheath

278001007

$3.22

23

Engine Harness | Includes 23 - 33.

278001060

Unavailable

24

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

25

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

26

Female Terminal

278000632

$1.69

27

Electric Wire Cap

278000100

Unavailable

28

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

29

Female Terminal | DS 650 X

278001009

$2.55

30

Insulated Sheath

278001007

$3.22

31

Insulated Sheath

278001008

$3.20

32

Male Terminal

278000230

$3.48

33

Open Barrel

278000992

$1.79

34

4 Circuits Rear Harness | Includes 38 - 48.

278000983

Unavailable

35

Male Terminal

278000230

$3.48

36

Insulated Sheath

278001008

$3.20

37

Insulated Sheath

278001007

$3.22

38

Female Terminal | DS 650 X

278001009

$2.55

39

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

40

Male Terminal

409004300

$5.46

41

Male Terminal | XT Models

278000222

$2.55

42

Wire Seal

278000218

$3.48

43

Grommet

293720034

Unavailable

44

Electric Wire Cap

278000100

Unavailable

45

2 Ways Harness | Includes 45 - 54.

278000893

Unavailable

46

Female Housing, 2 Circuits

278000217

$7.59

47

Male Terminal | XT Models

278000222

$2.55

48

Wire Seal

278000218

$3.48

49

Male Terminal

278000230

$3.48

50

Insulated Sheath

278001008

$3.20

51

Open Barrel

278000992

$1.79

52

Electric Wire Cap

278000100

Unavailable

53

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

54

4 Ways Harness | Includes 54 - 65.

278001059

Unavailable

55

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

56

Wire Seal

278000216

$2.55

57

Female Terminal

278000223

$2.55

58

Wire Seal

278000218

$3.48

59

Open Barrel

278000992

$1.79

60

Male Terminal

278000230

$3.48

61

Insulated Sheath

278001008

$3.20

62

Female Terminal | DS 650 X

278001009

$2.55

63

Insulated Sheath

278000770

$7.60

64

Electric Wire Cap

278000100

Unavailable

65

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

66

Oil/Fuel Harness | Includes 66 - 76.

278001058

Unavailable

67

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

68

Male Terminal | XT Models

278000222

$2.55

69

Wire Seal

278000218

$3.48

70

Female Housing, 2 Circuits

278000217

$7.59

71

Male Connector, 2 Circuits

278000220

$11.02

72

Female Terminal

278000223

$2.55

73

Open Barrel

278000992

$1.79

74

Male Terminal

278000230

$3.48

75

Electric Wire Cap

278000100

Unavailable

76

Grommet

293720034

Unavailable

77

Speed Sensor Harness | Includes 77 - 83.

278001061

Unavailable

78

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

79

Female Housing, 1 Circuit

278000161

$8.98

80

Male Housing, 3 Circuits

278000273

$7.59

81

Male Terminal | XT Models

278000222

$2.55

82

Female Terminal

278000223

$2.55

83

Wire Seal

278000218

$3.48
