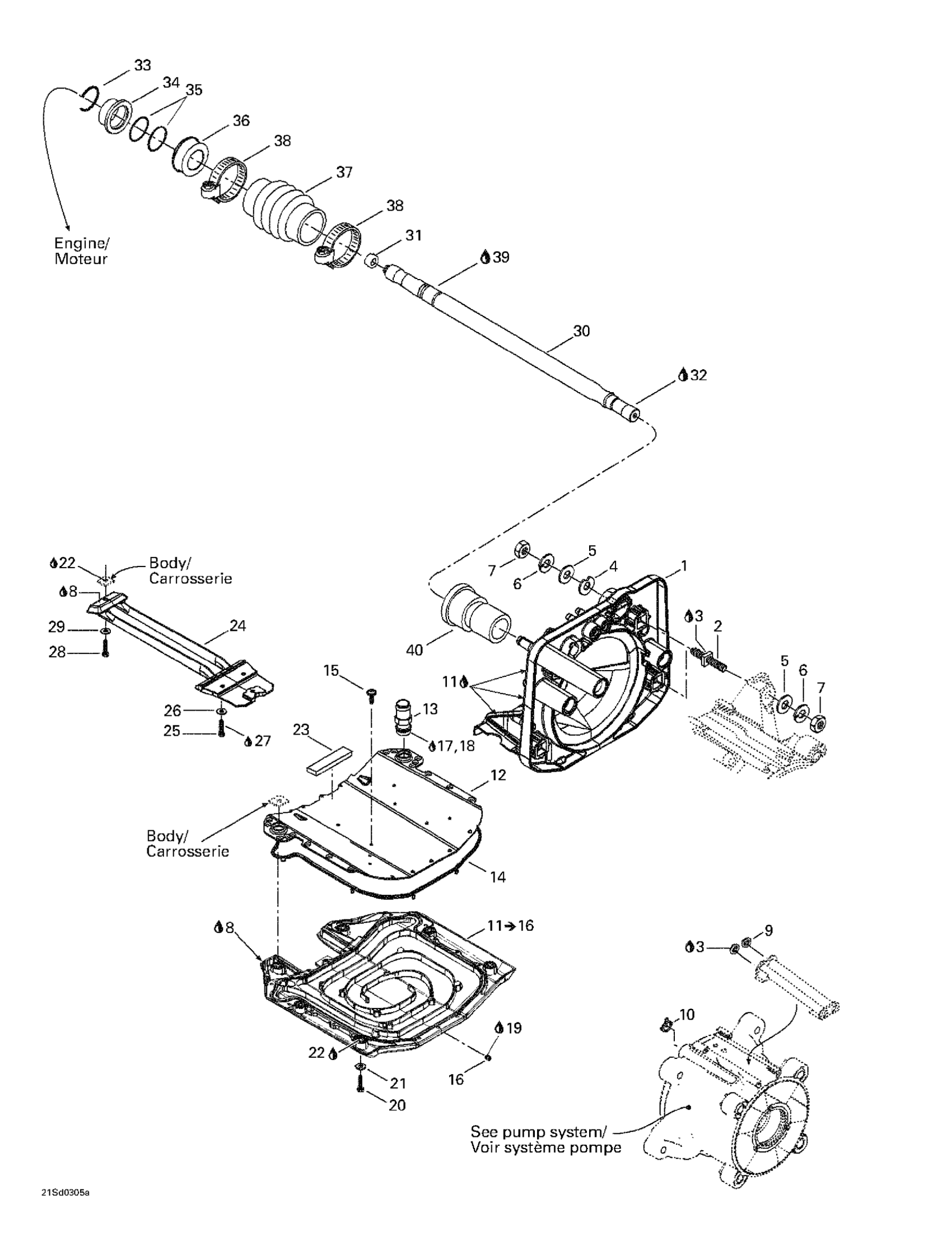

Sea-doo GTX 4-TEC Wake, 2003 Propulsion System Diagram

#

Description
Price

1

Pump Support

271001545

$107.87

2

Square Stud

250300022

$15.57

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

4

Shim 0.3 mm

272000053

$8.02

5

Flat Washer 10 mm, Stainless

234002600

$1.85

6

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

7

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

8

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

9

Watertight Seal

293250084

$5.81

10

Reducer This part replaces 291001887.

291004649

$12.57

11

Riding Plate Ass’Y | Includes Items 4 to 9

271001187

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

STRAIGHT PLASTIC FITTING - Call your local BRP dealership

293710087

Unavailable

14

SEAL - Call your local BRP dealership This part replaces 293250141.

293250206

Unavailable

15

Torx Button Head Screw M6 X 14

250000064

$7.28

16

Socket Drain Plug M6 X 12

250500005

$11.74

17

Was 293800041 Loctite Primer 7649

219704458

$41.99

18

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

19

Was 293800013 Loctite 56765

219704454

$65.35

20

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

21

Stainless, Flat Washer 8 mm

234081600

$0.46

22

Silicone Sealant 51388, 300 ml

296000309

$35.72

23

Gasket, Neoprene 2000Mm Long

219704476

$12.64

24

PUMP GRATE - Call your local BRP dealership

271001169

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.22

26

Stainless Flat Washer M6

234061600

$0.25

27

Loctite 271, 10 ml

293800005

$20.77

28

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

29

Stainless, Flat Washer 8 mm

234081600

$0.46

30

Drive Shaft

271001449

$240.47

31

Drive Shaft Plug

272000173

$7.02

32

Synthetic Grease, 400 G

293550010

Unavailable

33

C-Clip

271001575

$4.54

34

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

35

O-Ring

293300044

$0.86

36

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

37

Bellows

272000183

$22.72

38

Norma Clamp

293650077

$6.11

39

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

40

HULL INSERT, 41 MM - Call your local BRP dealership

292000975

Unavailable
