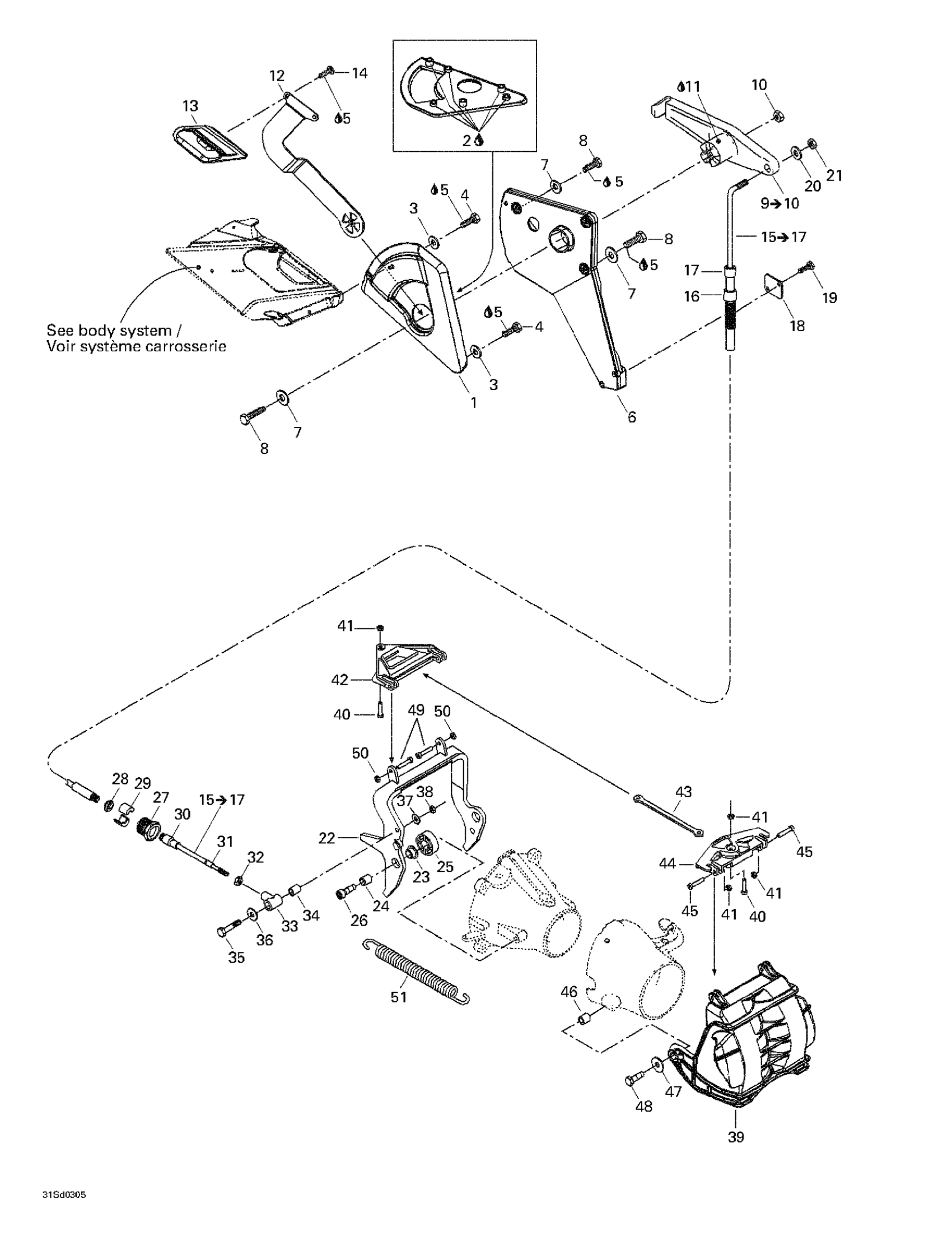

Sea-doo GTX 4-TEC Wake, 2003 Reverse Diagram

#

Description
Price

1

REVERSE HANDLE HOUSING - Call your local BRP dealership

268000009

Unavailable

2

Silicone Sealant 51388, 300 ml

296000309

$36.99

3

Flat Washer M6.6 X 22

250200022

$2.15

4

Hex. Cap Screw M6 X 12

207161260

$1.21

5

Loctite 243, 10 ml

293800060

$21.49

6

REVERSE CABLE SUPPORT - Call your local BRP dealership

268000010

Unavailable

7

Flat Washer M6, Stainless

234062600

$0.73

8

Hex. Screw M6 X 16

207161660

$1.40

9

Lever Ass.

271000986

$38.03

10

Hex. Elastic Stop Nut M6

232561600

$1.06

11

Synthetic Grease, 400 G

293550010

Unavailable

12

REVERSE HANDLE LEVER - Call your local BRP dealership | GTS PRO

268000022

Unavailable

13

REVERSE HANDLE, BLACK - Call your local BRP dealership

271001157

Unavailable

14

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

15

Reverse Cable | Includes 16 to 18

268000030

$141.76

16

Boot, Large

277000473

Unavailable

17

Boot, Small

277000466

Unavailable

18

BRACKET - Call your local BRP dealership

277001058

Unavailable

19

Hex. Flange Screw M5 X 30

207153060

$1.76

20

Flat Washer M5, Stainless

234051600

$0.73

21

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

22

ARM BLACK - Call your local BRP dealership

271001012

Unavailable

23

Venturi Bushing

271000321

$7.09

24

Spacer

271001039

$13.52

25

BUSHING - Call your local BRP dealership | GTS PRO

293900038

Unavailable

26

PIVOT SCREW M8 X 25 - Call your local BRP dealership

250000026

Unavailable

27

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

28

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

29

Half Ring

277000055

$7.10

30

Boot, Large

277000473

Unavailable

31

Boot, Small

277000466

Unavailable

32

Hex. Nut

212100005

$1.03

33

Joint

277001204

$16.39

34

Spacer

271001020

$10.60

35

Hex. Screw M6 X 35

207063560

$2.12

36

Flat Washer M6, Stainless

234062600

$0.73

37

Stainless Flat Washer M6

234061600

$0.28

38

Hex. Elastic Stop Nut M6

232561600

$1.06

39

Gate Reverse

271001317

Unavailable

40

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

41

Hex. Elastic Nut M5 | X

232551600

$1.04

42

TRIANGLE - Call your local BRP dealership

268000013

Unavailable

43

CONNECTOR ROD - Call your local BRP dealership

271001018

Unavailable

44

ROD PIVOT - Call your local BRP dealership

268000014

Unavailable

45

SCREW PIVOT - Call your local BRP dealership

250000023

Unavailable

46

Spacer

277001066

Unavailable

47

Flat Washer 8 mm, Stainless

234082600

$2.27

48

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

49

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

50

Hex. Elastic Nut M5 | X

232551600

$1.04

51

Spring

271001328

$14.43
