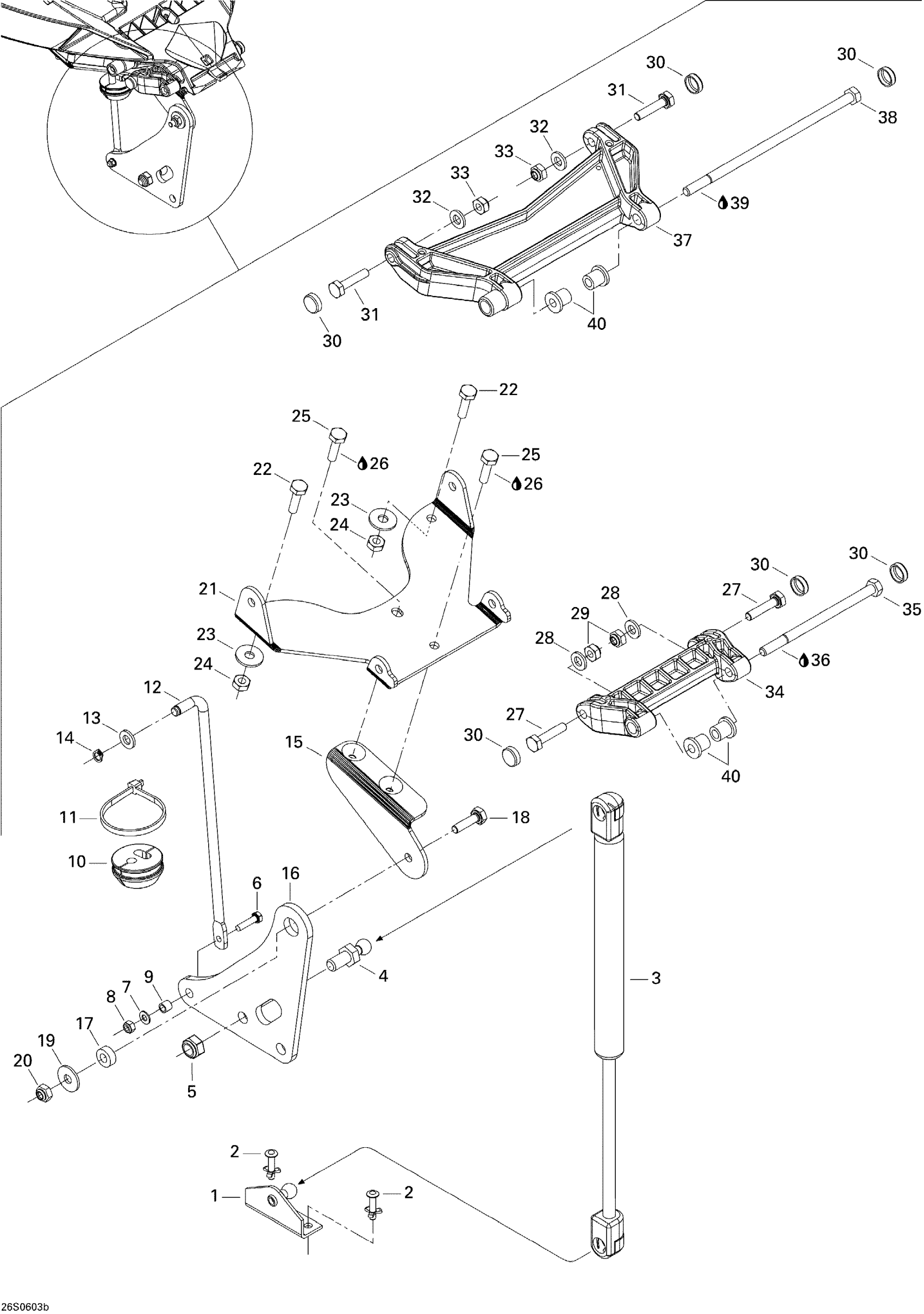

Sea-doo GTX 4-TEC SC, 2006 Front Storage Compartment 2 Diagram

#

Description
Price

1

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.54

3

Gas Shock Ass'y

269501625

$69.37

4

Ball Head Stud

250300016

$13.42

5

Hex. Elastic Nut M8 Brass

232581200

$1.48

6

Hex. Screw M4 X 16 | Europe

207141660

$1.40

7

Flat Washer 4 mm, Stainless

234041600

$1.04

8

Elastic Stop Nut M4

232541600

$1.06

9

SPACER - Call your local BRP dealership

269501130

Unavailable

10

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

11

Tie-Rap 180 mm

414115200

$0.10

12

ROD - Call your local BRP dealership

269500842

Unavailable

13

Stainless Flat Washer M6

234061600

$0.28

14

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

15

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

16

LEVER - Call your local BRP dealership

269501576

Unavailable

17

SPACER - Call your local BRP dealership

269501172

Unavailable

18

Hex. Forming Screw M6 X 20

207162060

$1.18

19

Flat Washer M6, Stainless

234062600

$0.73

20

Elastic Stop Nut M6, Brass

232561200

$4.03

21

Pivot Support

269500934

Unavailable

22

Hex. Forming Screw M6 X 20

207162060

$1.18

23

Flat Washer M6, Stainless

234062600

$0.73

24

Elastic Stop Nut M6, Brass

232561200

$4.03

25

Hex. Forming Screw M6 X 20

207162060

$1.18

26

Loctite 243, 10 ml

293800060

$21.49

27

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

28

Stainless Flat Washer M6

234061600

$0.28

29

Elastic Stop Nut M6, Brass

232561200

$4.03

30

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

31

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

32

Stainless Flat Washer M6

234061600

$0.28

33

Elastic Stop Nut M6, Brass

232561200

$4.03

34

FRONT ARM - Call your local BRP dealership

269501482

Unavailable

35

Hex. Screw M6 X 100

230060060

$6.99

36

Loctite 243, 10 ml

293800060

$21.49

37

REAR ARM - Call your local BRP dealership

269501481

Unavailable

38

Hex. Screw M6 X 150

230065060

$9.40

39

Loctite 271, 10 ml

293800005

$23.85

40

Sleeve

269500706

$4.30
