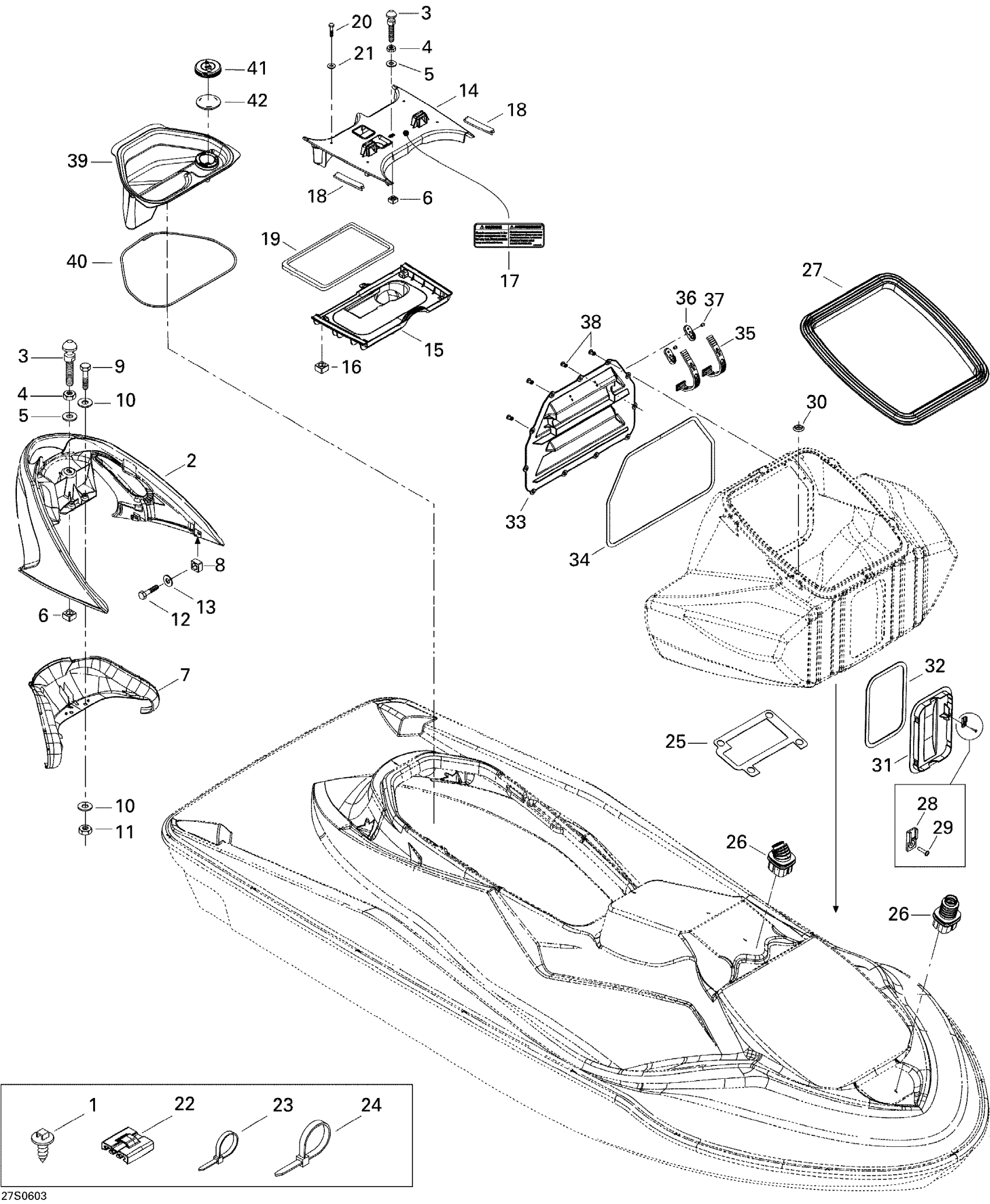

Sea-doo GTX 4-TEC SC, 2006 Body, Front View Diagram

#

Description
Price

1

Mount Dart

293730040

$0.99

2

Grab Handle, Slate Grey

269001265

Unavailable

3

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

4

Hex. Jam Nut M10

232100600

$2.12

5

Flat Washer 10 mm, Stainless

234002600

$2.12

6

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

7

Grab Handle Cover, Slate Grey

269001266

Unavailable

8

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

9

Hex. Screw M8 X 45

207084560

$3.18

10

Stainless, Flat Washer 8 mm

234081600

$0.52

11

Hex. Elastic Nut M8 Brass

232581200

$1.48

12

Hex. Screw M6 X 25

207162560

$1.40

13

Flat Washer M6, Stainless

234062600

$0.73

14

UPPER BRIDGE, BLACK - Call your local BRP dealership

291002136

Unavailable

15

Lower Bridge, Black

291002138

Unavailable

16

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

17

WARNING DECAL, SECURITY - Call your local BRP dealership

219902643

Unavailable

18

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

19

GASKET - Call your local BRP dealership

293200090

Unavailable

20

Hex. Screw M6 X 75

207167560

Unavailable

21

Flat Washer M6, Stainless

234062600

$0.73

22

Tie-Rap Mount

293750025

$0.99

23

Tie-Rap 180 mm

414115200

$0.10

24

Tie Wrap 368 mm

293750008

$0.97

25

GASKET - Call your local BRP dealership

293250171

Unavailable

26

GROMMET - Call your local BRP dealership

293720042

Unavailable

27

Cover Trim

269501234

Unavailable

28

Clip

270000141

$9.57

29

Flange Screw K40 X 20

241642060

$1.06

30

Black Plug

291000279

$6.88

31

Front Door

291002416

Unavailable

32

Gasket, Neoprene 2000Mm Long

219704476

$14.51

33

Rear Door

291001743

Unavailable

34

Gasket, Neoprene 2000Mm Long

219704476

$14.51

35

Strap

269502417

$16.39

36

Hook

269500521

Unavailable

37

Avdel Rivet

293150027

$2.30

38

Tuflok Plastic Rivet

293150230

$1.39

39

Rear Tray

269501036

Unavailable

40

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

41

COVER - Call your local BRP dealership

269000788

Unavailable

42

COVER SEAL - Call your local BRP dealership

269000810

Unavailable
