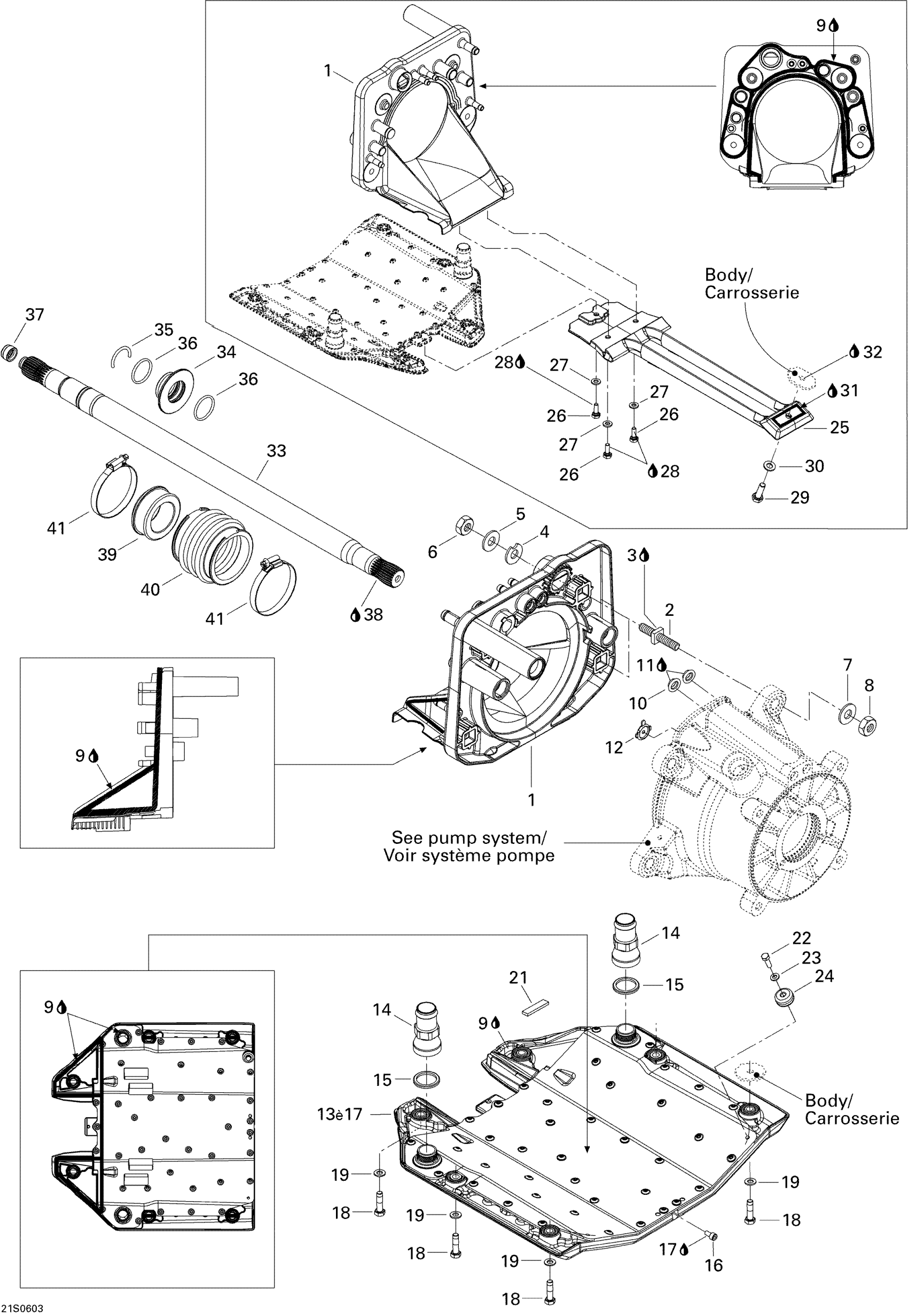

Sea-doo GTX 4-TEC SC, 2006 Propulsion Diagram

#

Description
Price

1

Pump Support

271001545

$132.49

2

Square Stud

250300022

$20.99

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

4

Shim 0.3 mm

272000053

$11.49

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

Elastic Stop Nut M10, Brass

232501200

$2.64

7

Flat Washer 10 mm, Stainless

234001600

$1.15

8

Elastic Stop Nut M10, Brass

232501200

$2.64

9

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

10

Watertight Seal

293250084

$7.49

11

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

12

Reducer

291001888

Unavailable

13

Riding Plate Ass'y | Includes 14 à 18

271001535

Unavailable

14

Straight Plastic Fitting

293710111

$8.47

15

O-Ring

293300121

$8.32

16

Socket Drain Plug M6 X 12

250500005

$16.49

17

Was 293800013 Loctite 56765

219704454

$65.99

18

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.53

19

Stainless, Flat Washer 8 mm

234081600

$0.55

21

Gasket, Neoprene 2000Mm Long

219704476

$15.36

22

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

23

Stainless Flat Washer M6

234061600

$0.33

24

Anode Zinc

271001813

$18.99

25

GRATE - Call your local BRP dealership

271001560

Unavailable

26

Hex. Screw M6 X 16

207161660

$1.59

27

Stainless Flat Washer M6

234061600

$0.33

28

Loctite 271, 10 ml

293800005

$26.99

29

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

30

Stainless, Flat Washer 8 mm

234081600

$0.55

31

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Drive Shaft This part replaces 271001534.

271001724

$328.49

34

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

35

C-Clip

271001575

$6.11

36

O-Ring

293300044

$1.05

37

Drive Shaft Plug

272000173

$8.68

38

Synthetic Grease, 400 G

293550010

Unavailable

39

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

40

Bellows

272000183

$28.99

41

Norma Clamp

293650077

$7.41
