Description

Price

1

Oil Pump Housing

420812723

$91.62

2

Plug Screw M10 X 1

420641323

$11.48

3

Oil Pump Shaft

420837543

$49.37

4

Oil Pump Rotor 16 mm

420956675

$29.22

5

Oil Pump Cover

420811851

$27.27

6

Torx Flange Screw M6 X 16

420641048

$2.46

7

Oil Sieve

420856520

$21.42

8

Oil Suction Pump Gasket | Included in gasket kit

420631486

$7.87

9

Torx Flange Screw M6 X 25

420641238

$2.68

10

OIL FILLER TUBE ASS'Y - Call your local BRP dealership | Includes 9 to 10

420856511

Unavailable

11

Gasket

420430240

$3.61

12

Torx Flange Screw M6 X 45

420641198

$3.38

13

Plug Cover, Yellow

420956923

$19.47

14

Retaining Band

420660620

$6.11

15

Passenger Strap

293000060

Unavailable

16

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

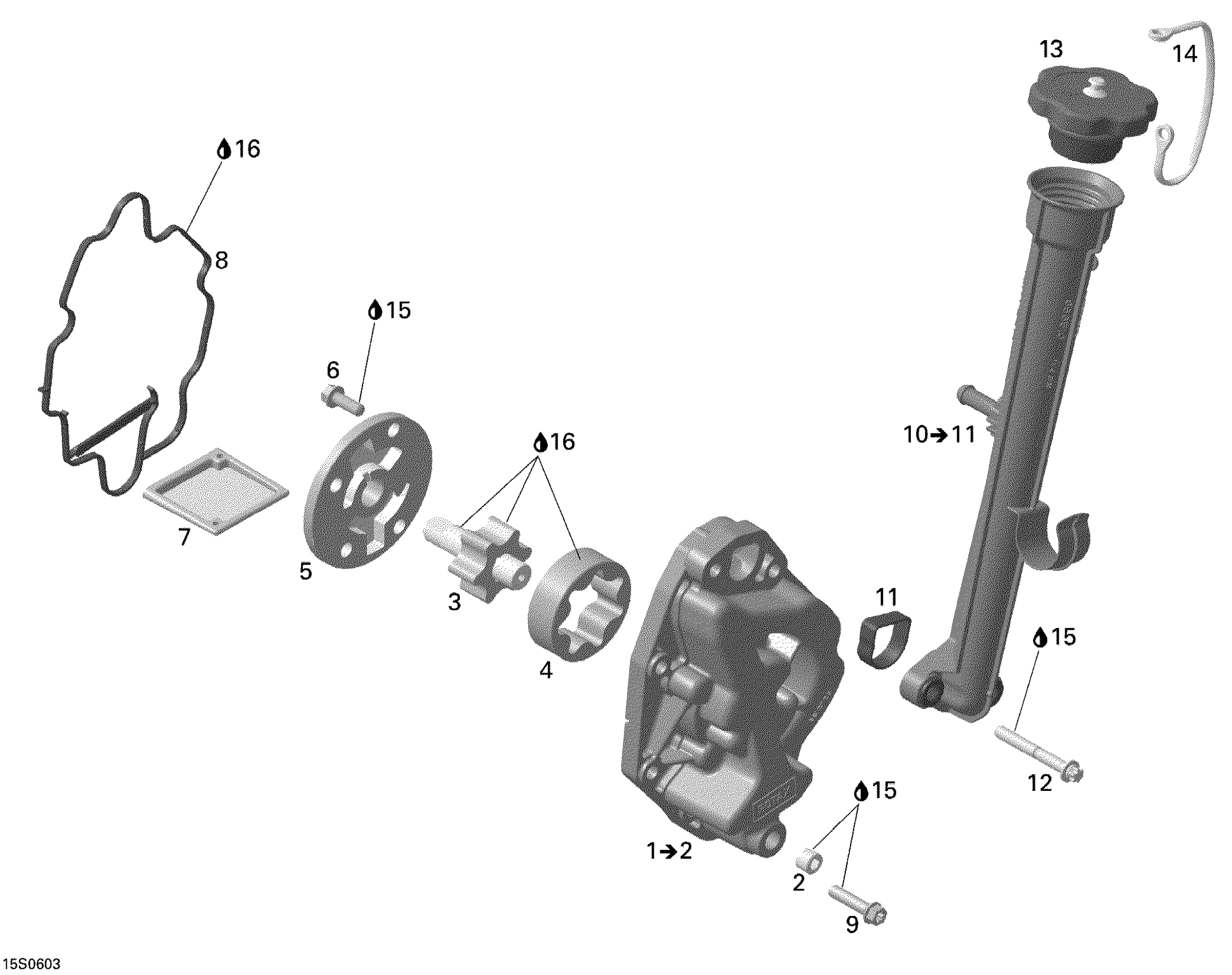

Sea-doo GTX 4-TEC SC, 2006 Oil Separator Diagram

Oil Pump Housing

Plug Screw M10 X 1

Oil Pump Shaft

Oil Pump Rotor 16 mm

Oil Pump Cover

Torx Flange Screw M6 X 16

Oil Sieve

Oil Suction Pump Gasket | Included in gasket kit

Torx Flange Screw M6 X 25

OIL FILLER TUBE ASS'Y - Call your local BRP dealership | Includes 9 to 10

Gasket

Torx Flange Screw M6 X 45

Plug Cover, Yellow

Retaining Band

Passenger Strap

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
