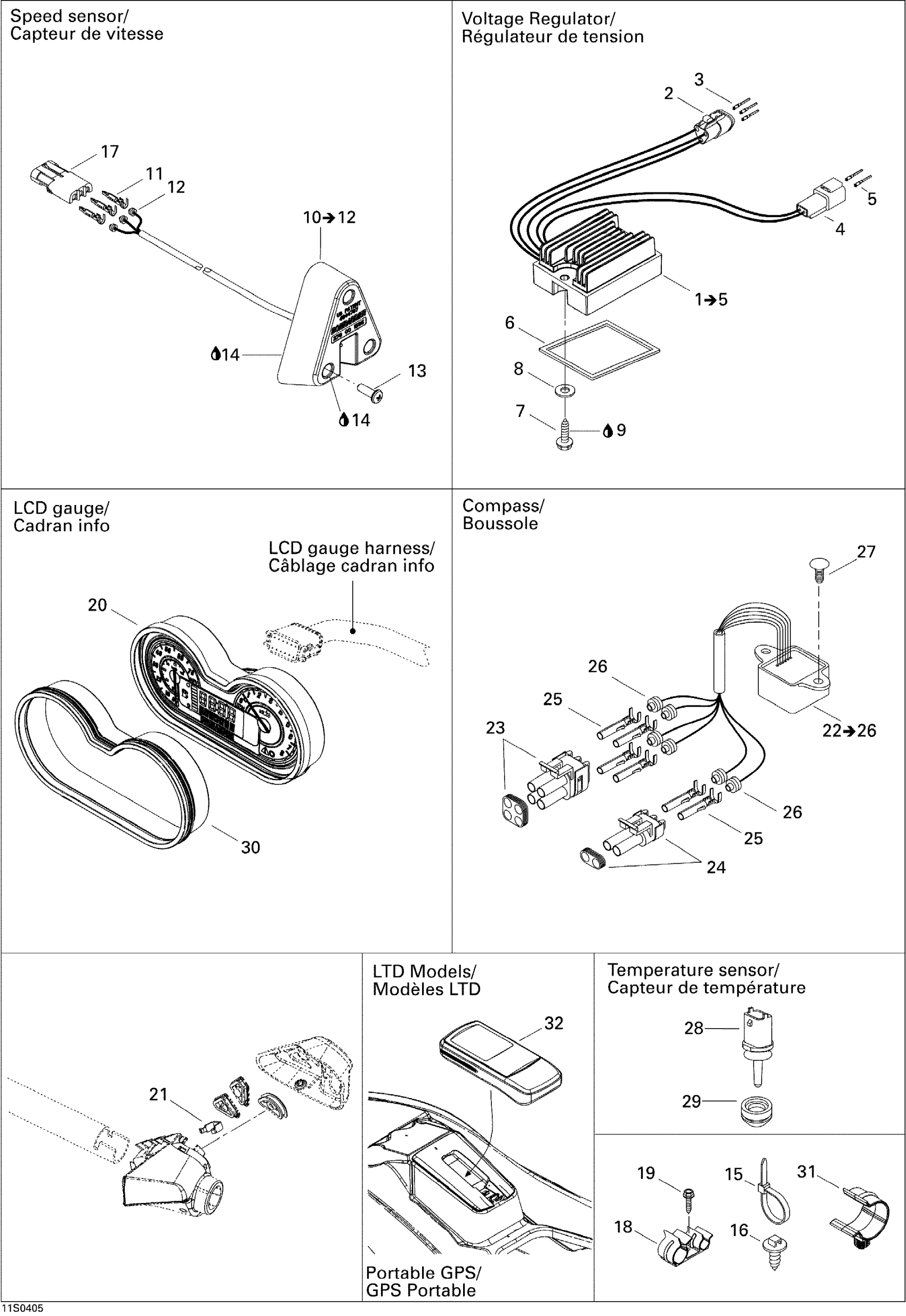

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Electrical Accessories Diagram

#

Description
Price

1

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

2

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

3

Male Terminal

278000631

Unavailable

4

Male Housing, 2 Circuits

409206900

Unavailable

5

Male Terminal

515175568

Unavailable

6

SEAL - Call your local BRP dealership

293250123

Unavailable

7

Hex. Screw 10-14 X 7/8”

211000023

Unavailable

8

Stainless Flat Washer M6

234061600

Unavailable

9

Loctite 271, 10 ml

293800005

Unavailable

10

Speed Sensor

278001993

Unavailable

11

Wire Seal

710000048

Unavailable

12

Male Terminal | XT Models

278000222

Unavailable

13

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

Unavailable

15

Tie Wrap 142 mm

293750002

Unavailable

15

Tie-Rap 180 mm

414115200

Unavailable

15

Tie Wrap 368 mm

293750008

Unavailable

15

Tie-Rap 206 mm

293750027

Unavailable

16

Mount Dart

293730040

Unavailable

17

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

18

RETAINER - Call your local BRP dealership

275500553

Unavailable

19

Hex. Flange Screw K40 X 16

241141660

Unavailable

20

LCD GAUGE - Call your local BRP dealership

278001958

Unavailable

21

U Bracket

277001069

Unavailable

22

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

23

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

24

Male Connector, 2 Circuits

278000220

Unavailable

25

Female Terminal

278000223

Unavailable

26

Wire Seal

278000218

Unavailable

27

Black Dart

293730010

Unavailable

28

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

29

INSULATOR - Call your local BRP dealership

278001054

Unavailable

30

GAUGE SUPPORT - Call your local BRP dealership

278001603

Unavailable

31

Cable Retainer

275500527

Unavailable

32

Portable GPS

278001931

Unavailable
