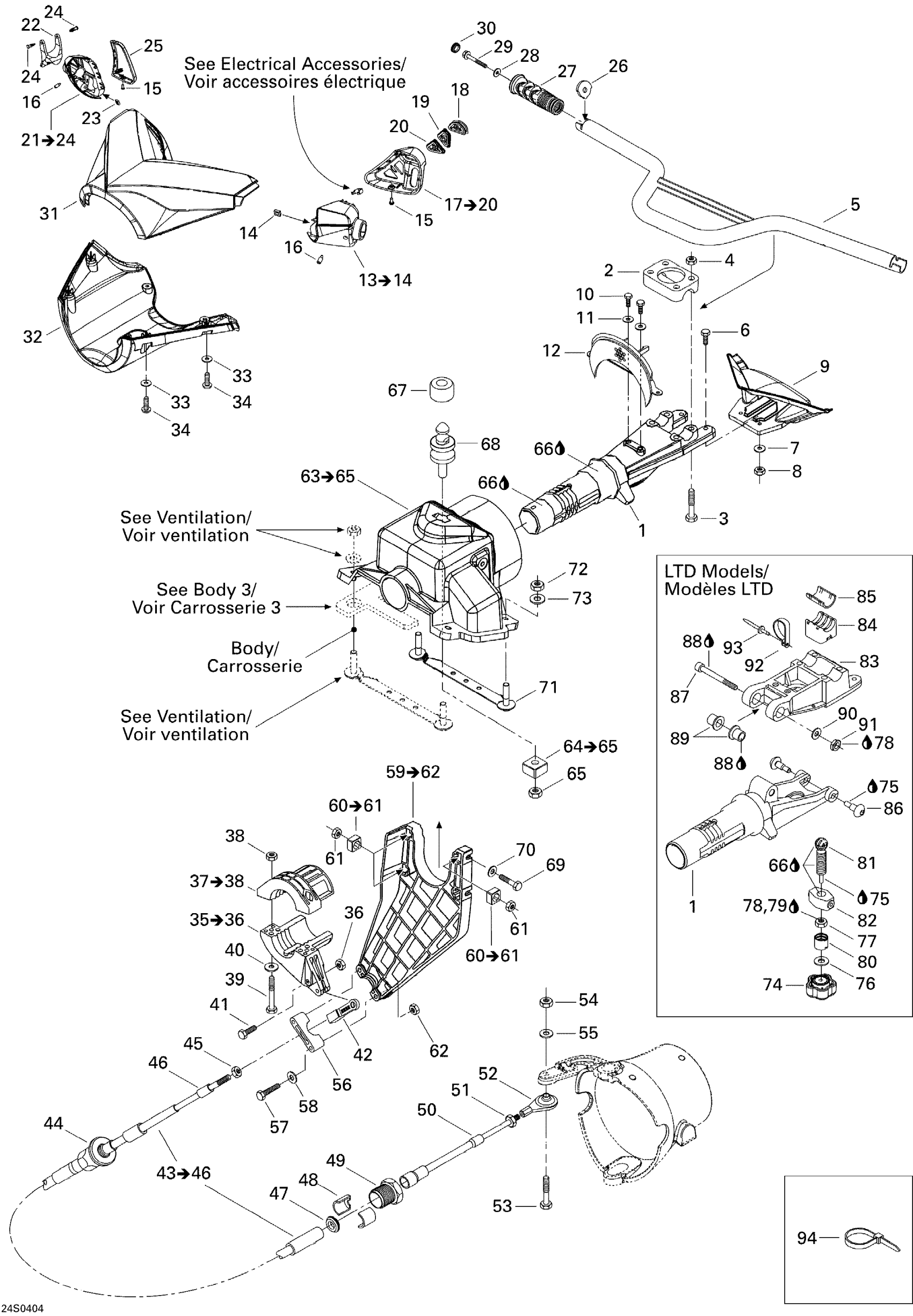

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Steering System Diagram

#

Description
Price

1

Steering Stem

277000562400

Unavailable

Steering Stem

277000758400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

4

Hex. Elastic Nut M8

232581600

Unavailable

5

Handlebar

277001012

Unavailable

Handlebar | LTD Models

277001132

Unavailable

6

Hex. Screw M6 X 30

207063060

Unavailable

7

Stainless Flat Washer M6

234061600

Unavailable

8

Hex. Elastic Stop Nut M6

232561600

Unavailable

9

Handle Pad Metalic Silver (M-519) | WAKE

277001100

Unavailable

Handle Pad, Pearl Blue | STD

277001241

Unavailable

10

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

11

Flat Washer M6, Stainless

234062600

Unavailable

12

PLATE - Call your local BRP dealership

277000549

Unavailable

Plate, Black

277000766

Unavailable

13

HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9

277001481

Unavailable

14

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

15

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

16

Socket Head Screw M6 X 16

250000036

Unavailable

17

Housing Cover Ass’Y | WAKE / Includes 17 to 21

277001103

Unavailable

Housing Cover Ass’Y | LTD Models, Includes 17 To 20

277001308

Unavailable

18

Stop Knob

278001713

Unavailable

19

MODE KNOB - Call your local BRP dealership

278001714

Unavailable

20

SET KNOB - Call your local BRP dealership

278001715

Unavailable

21

THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19

277001483

Unavailable

22

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

23

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

24

PIN - Call your local BRP dealership

277000381

Unavailable

25

Throttle Housing Cover

277001102

Unavailable

Throttle Housing Cover | LTD Models

277001129

Unavailable

26

Insert Grip Handle

277001863

Unavailable

27

Handle Grip Kit Yellow/Black This part replaces 277001162.

295500981

Unavailable

Handle Grip Kit Blue/Black | STD This part replaces 277001243.

295500976

Unavailable

28

Flat Washer M6, Stainless

234062600

Unavailable

29

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

30

Black, Cap

277000203

Unavailable

31

UPPER STEERING COVER, BLACK - Call your local BRP dealership

277000952

Unavailable

Upper Steering Cover, Earth Gray | LTD Models

277001098

Unavailable

32

LOWER STEERING COVER, BLACK - Call your local BRP dealership

277001145

Unavailable

Lower Steering Cover, Earth Gray | LTD Models

277001099

Unavailable

33

Flat Washer M5, Stainless

234051600

Unavailable

34

Hex. Flange Screw K40 X 16

241141660

Unavailable

35

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

36

Hex. Elastic Stop Nut M6

232561600

Unavailable

37

Arm Thrust | Includes 43 to 44

277000519

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

Unavailable

39

Hex. Screw M6 X 25

207162560

Unavailable

40

Flat Washer M6, Stainless

234062600

Unavailable

41

Hex. Screw M6 X 30

211000081

Unavailable

42

Ball Joint

277001180

Unavailable

43

Steering Cable Ass’Y | Includes 44 to 47

277000949

Unavailable

44

Ajustment Knob

277000782

Unavailable

45

Hex. Nut 1/4"-28

211100056

Unavailable

46

Terminal Wiper

277000441

Unavailable

47

Rubber Washer

293830063

Unavailable

48

Half Ring

277001527

Unavailable

49

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

50

Terminal Wiper

277000441

Unavailable

51

Hex. Nut 1/4"-28

211100056

Unavailable

52

Ball Joint

277000775

Unavailable

53

Hex. Screw M6 X 35

207063560

Unavailable

54

Hex. Elastic Stop Nut M6

232561600

Unavailable

55

Stainless Flat Washer M6

234061600

Unavailable

56

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

57

Hex. Screw M6 X 50

207065060

Unavailable

58

Stainless Flat Washer M6

234061600

Unavailable

59

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

60

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

61

Hex. Nut M6

232061600

Unavailable

62

Hex. Elastic Stop Nut M6

232561600

Unavailable

63

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

64

Nut Housing Ass’Y | Includes 64 to 65

271001115

Unavailable

65

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

68

Latch Stud

291001420

Unavailable

69

Hex. Forming Screw M6 X 20

207162060

Unavailable

70

Stainless Flat Washer M6

234061600

Unavailable

71

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

72

Hex. Elastic Nut M8

232581600

Unavailable

73

Stainless, Flat Washer 8 mm

234081600

Unavailable

74

ADJUSTER HANDLE - Call your local BRP dealership

277000764

Unavailable

75

Loctite 243, 10 ml

293800060

Unavailable

76

Flat Washer 8 mm, Stainless

234082600

Unavailable

77

Hex. Jam Nut M8

232180600

Unavailable

78

Loctite 271, 10 ml

293800005

Unavailable

79

Was 293800041 Loctite Primer 7649

219704458

Unavailable

80

Stopper Bushing

277000786

Unavailable

81

ADJUSTER SCREW - Call your local BRP dealership

211000145

Unavailable

82

BLOCK - Call your local BRP dealership

277000761

Unavailable

83

Steering Support

277000901

Unavailable

84

STOPPER - Call your local BRP dealership

277000762

Unavailable

85

RUBBER PAD - Call your local BRP dealership

293830098

Unavailable

86

THREADED PIVOT - Call your local BRP dealership

277000763

Unavailable

87

SOCKET HEAD SCREW M10 X 73 SCOTCH GRIP - Call your local BRP dealership

250000004

Unavailable

88

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

89

SUPPORT BUSHING - Call your local BRP dealership

277000844

Unavailable

90

Flat Washer 10 mm, Stainless

234001600

Unavailable

91

Hex. Jam Nut M10

232100600

Unavailable

92

CLAMP TIE - Call your local BRP dealership

293750021

Unavailable

93

Pop Rivet 3/16"

293150008

Unavailable

94

Tie Wrap 368 mm

293750008

Unavailable
