- GTX 4-TEC, LTD Supercharged, 2004
Electrical System

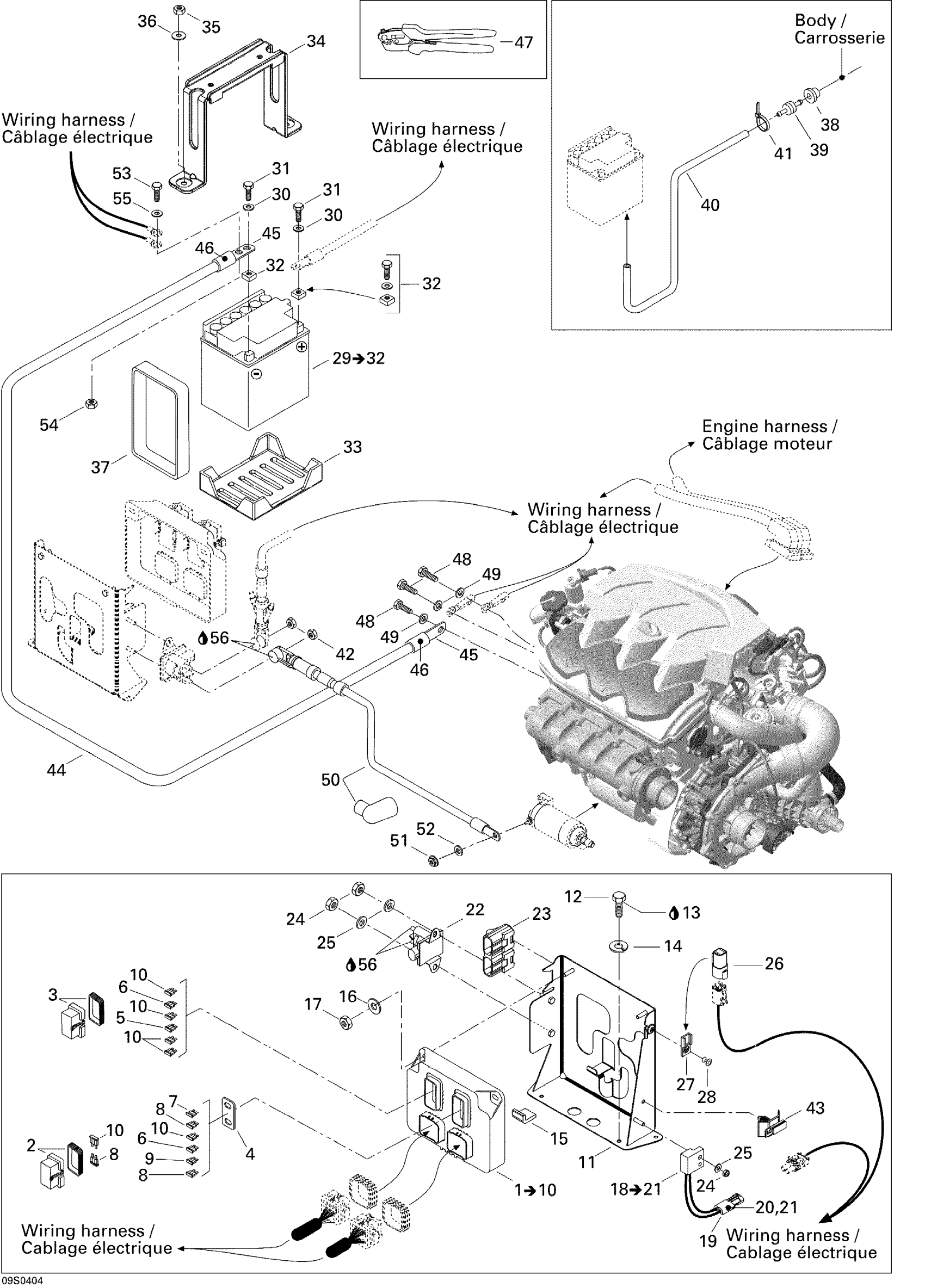

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Electrical System Diagram
#
1
Electronic Module | Includes 1 to 5
278001913
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
Unavailable
3
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
Unavailable
4
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
5
FUSE, 1 AMPERE - Call your local BRP dealership
409012800
Unavailable
6
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
7
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
8
Fuse, 5 Amperes | CE
278000344
Unavailable
9
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
10
Fuse, 10 Amperes | North America
278001197
Unavailable
11
Module Support
278001870
Unavailable
12
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
13
Loctite 271, 10 ml
293800005
Unavailable
14
WASHER-LOCK IMPERIAL - Call your local BRP dealership
211200043
Unavailable
15
MODULE PROTECTOR - Call your local BRP dealership
278001166
Unavailable
16
Flat Washer M6, Stainless
234062600
Unavailable
17
Hex. Elastic Stop Nut M6
232561600
Unavailable
18
T.O.P.S. SWITCH - Call your local BRP dealership | Includes 13 to 16
278001547
Unavailable
19
Female Housing, 2 Circuits
278000217
Unavailable
20
Male Terminal | XT Models
278000222
Unavailable
21
Wire Seal
278000218
Unavailable
22
Starter Relay
278003012
Unavailable
23
HOUSING COVER - Call your local BRP dealership
710000342
Unavailable
24
Hex. Elastic Stop Nut M6
232561600
Unavailable
25
Stainless Flat Washer M6
234061600
Unavailable
26
Diagnostic Connector
278002704
Unavailable
27
Clip
270000141
Unavailable
28
Pop Rivet 3/16"
204000081
Unavailable
29
Battery, 30 Amperes
278001882
Unavailable
30
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
Unavailable
31
Hex. Screw M6 X 16
207161644
Unavailable
32
Battery Bolt Kit
250000282
Unavailable
33
LOWER BATTERY PAD - Call your local BRP dealership
278001582
Unavailable
34
BATTERY SUPPORT - Call your local BRP dealership
278001677
Unavailable
35
Hex. Elastic Nut M8
232581600
Unavailable
36
Flat Washer 8 mm, Stainless
234082600
Unavailable
37
BATTERY STRAP 337 MM - Call your local BRP dealership
278001764
Unavailable
38
Grommet
293720029
Unavailable
39
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
40
HOSE 6 MM - Call your local BRP dealership
275500446
Unavailable
41
Tie Wrap 94 mm | 4X4
293750001
Unavailable
42
Hex. Elastic Stop Nut M6
232561600
Unavailable
43
Self-Locking Clip
278001775
Unavailable
44
Battery Ground Cable Ass'y
278001611
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
46
Not Available As Spare Part - Friction Washer
Unavailable
47
Not Available As Spare Part - Friction Washer
Unavailable
48
Hex. Screw M6 X 12, Scotch Grip
207361260
Unavailable
49
Stainless Flat Washer M6
234061600
Unavailable
50
STARTER CABLE - Call your local BRP dealership
278002265
Unavailable
51
Hex. Elastic Stop Nut M6
232561600
Unavailable
52
Stainless Flat Washer M6
234061600
Unavailable
53
Hex. Cap Screw M6 X 12
207161260
Unavailable
54
Hex. Elastic Stop Nut M6
232561600
Unavailable
55
Stainless Flat Washer M6
234061600
Unavailable
56
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
