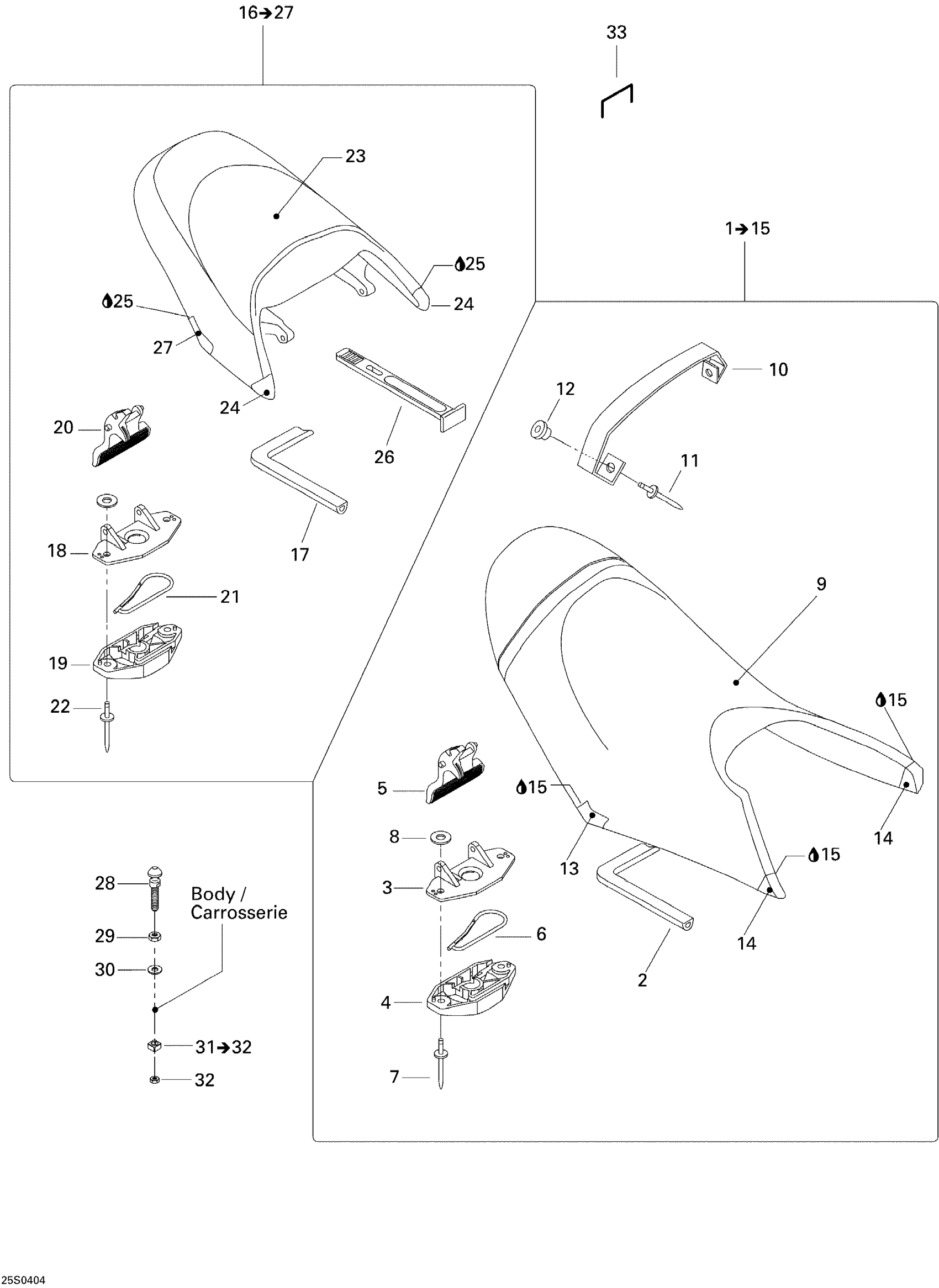

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Seat Diagram
#
1
Front Seat Ass'y, Silver | WAKE / Includes 1 to 15
269001050
Unavailable
1
Front Seat Ass'y, Pearl Blue | LTD Models / Includes 1 to 15
269001052
Unavailable
2
Was 293200062 Seal
219704366
Unavailable
3
Latch Ass'y
269700109
Unavailable
4
Latch Ass'y
269700109
Unavailable
5
Latch Ass'y
269700109
Unavailable
6
Latch Spring
269700017
Unavailable
7
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
8
Stainless Flat Washer M6
234061600
Unavailable
9
Front Seat Cover & Foam, Silver | WAKE
269001051
Unavailable
9
Cover/foam, Front, Pearl Blue | STD
269001053
Unavailable
10
Seat Strap, Silver | WAKE
269001081
Unavailable
10
Seat Strap, Pearl Blue | STD
269001054
Unavailable
11
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
12
Grommet
293720067
Unavailable
13
RH Seat Corner, Silver | WAKE
269001082
Unavailable
13
RH Seat Corner, Pearl Blue | STD
269001055
Unavailable
13
LH Seat Corner, Silver | WAKE
269001083
Unavailable
13
LH Seat Corner, Pearl Blue | STD
269001056
Unavailable
14
RH Front Seat Corner, Silver | WAKE
269001084
Unavailable
14
RH Front Seat Corner, Pearl Blue | STD
269001057
Unavailable
14
LH Front Seat Corner, Silver | WAKE
269001085
Unavailable
14
LH Front Seat Corner, Pearl Blue | STD
269001058
Unavailable
15
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
Unavailable
16
Rear Seat Ass'y, Silver | WAKE / Includes 16 to 26
269001059
Unavailable
16
Rear Seat Ass'y, Pearl Blue | LTD Models / Includes 16 to 27
269001061
Unavailable
17
Was 293200062 Seal
219704366
Unavailable
18
Latch Ass'y
269700109
Unavailable
19
Latch Ass'y
269700109
Unavailable
20
Latch Ass'y
269700109
Unavailable
21
Latch Spring
269700017
Unavailable
22
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
23
Rear Seat Cover & Foam, Silver | WAKE
269001060
Unavailable
23
Cover/foam, Rear, Pearl Blue | STD
269001062
Unavailable
24
RH Seat Corner, Silver | WAKE
269001086
Unavailable
24
RH Seat Corner, Pearl Blue | STD
269001063
Unavailable
24
LH Seat Corner, Silver | WAKE
269001087
Unavailable
24
LH Seat Corner, Pearl Blue | STD
269001064
Unavailable
25
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
Unavailable
26
Strap
269502417
Unavailable
27
SEAT CORNER - Call your local BRP dealership
269001088
Unavailable
27
Seat Corner, Pearl Blue | STD
269001065
Unavailable
28
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
29
Hex. Jam Nut M10
232100600
Unavailable
30
Flat Washer 10 mm, Stainless
234002600
Unavailable
31
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
32
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
33
Staple
293730005
Unavailable
