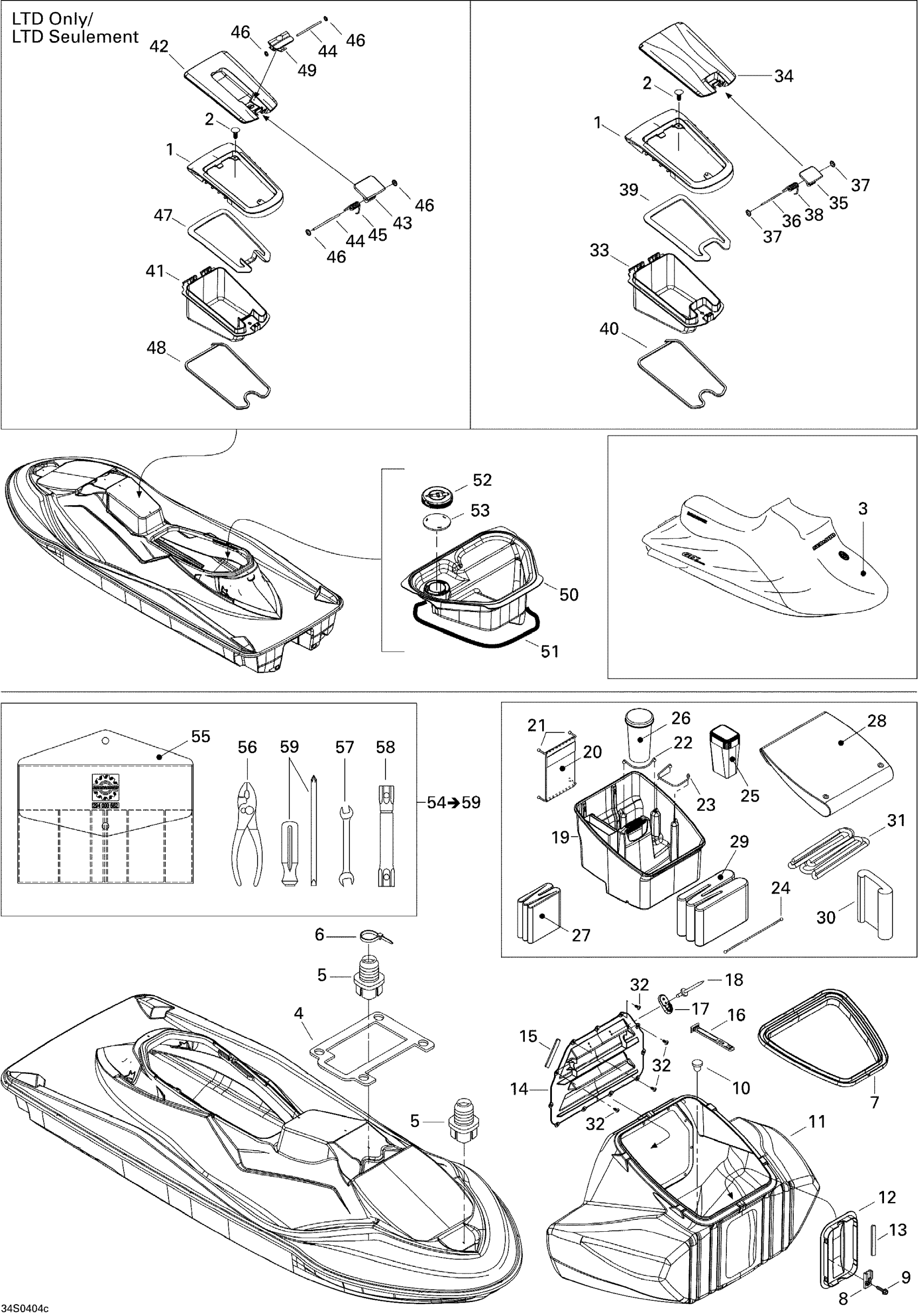

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Body 3 Diagram
#
1
Cover Trim, Black
269501031
Unavailable
Cover Trim, Grey | LTD Models
269501193
Unavailable
2
Black, Dart
293730006
Unavailable
3
Sea-Doo Cover Gtx 4-Tec | LTD Models
280000102
Unavailable
4
GASKET - Call your local BRP dealership
293250171
Unavailable
5
GROMMET - Call your local BRP dealership
293720042
Unavailable
6
Tie-Rap 180 mm
414115200
Unavailable
7
Cover Trim
269501234
Unavailable
8
Clip
270000141
Unavailable
9
Flange Screw K40 X 20
241642060
Unavailable
10
Black Plug
291000279
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Front Door
291001744
Unavailable
13
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
14
Rear Door
291001743
Unavailable
15
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
16
Strap
269502417
Unavailable
17
Hook
269500521
Unavailable
18
Avdel Rivet
293150027
Unavailable
19
Removable Tray | Includes 40 to 45
269501478
Unavailable
20
Pocket | WAKE
269501161
Unavailable
21
STRAP - Call your local BRP dealership
269501175
Unavailable
22
STRAP - Call your local BRP dealership
269501174
Unavailable
23
STRAP - Call your local BRP dealership
269501175
Unavailable
24
STRAP - Call your local BRP dealership
269501176
Unavailable
25
Cellular Phone Pouch | LTD Models
269501275
Unavailable
26
Safety Kit | Package LTD
295100330
Unavailable
27
Insulated Box | LTD Models
269501276
Unavailable
28
Luggage Net | LTD Models
269501277
Unavailable
29
Holdall Bag | LTD Models
269501279
Unavailable
30
Anchor Sandbag | LTD Models
269501287
Unavailable
31
15' CABLE - Call your local BRP dealership | LTD Models
269501288
Unavailable
32
Tuflok Plastic Rivet
293150230
Unavailable
33
GLOVE BOX - Call your local BRP dealership
269500968
Unavailable
34
Box Door, Black | WAKE
269501202
Unavailable
35
Latch, Black
269500553
Unavailable
36
Pin
211400008
Unavailable
37
Push Nut | Not shown
211100002
Unavailable
38
Latch Spring
291000922
Unavailable
39
GASKET - Call your local BRP dealership
293250126
Unavailable
40
GASKET - Call your local BRP dealership
293250127
Unavailable
41
GLOVE BOX - Call your local BRP dealership
269501281
Unavailable
42
Glove Box Door | LTD Models
269501297
Unavailable
43
Latch, Black
269500553
Unavailable
44
Pin
211400008
Unavailable
45
Latch Spring
291000922
Unavailable
46
Push Nut | Not shown
211100002
Unavailable
47
GASKET - Call your local BRP dealership
293250146
Unavailable
48
GASKET - Call your local BRP dealership
293250127
Unavailable
49
LATCH, BLACK - Call your local BRP dealership | LTD
269501289
Unavailable
50
Rear Tray
269501036
Unavailable
51
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
52
COVER - Call your local BRP dealership
269000788
Unavailable
53
COVER SEAL - Call your local BRP dealership
269000810
Unavailable
54
Tool Kit | Includes 52 to 57
294000682
Unavailable
55
Not Available As Spare Part - Friction Washer
Unavailable
56
Not Available As Spare Part - Friction Washer
Unavailable
57
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
58
Socket Wrench
529035731
Unavailable
59
DRIVER SCREW - Call your local BRP dealership
529019200
Unavailable
