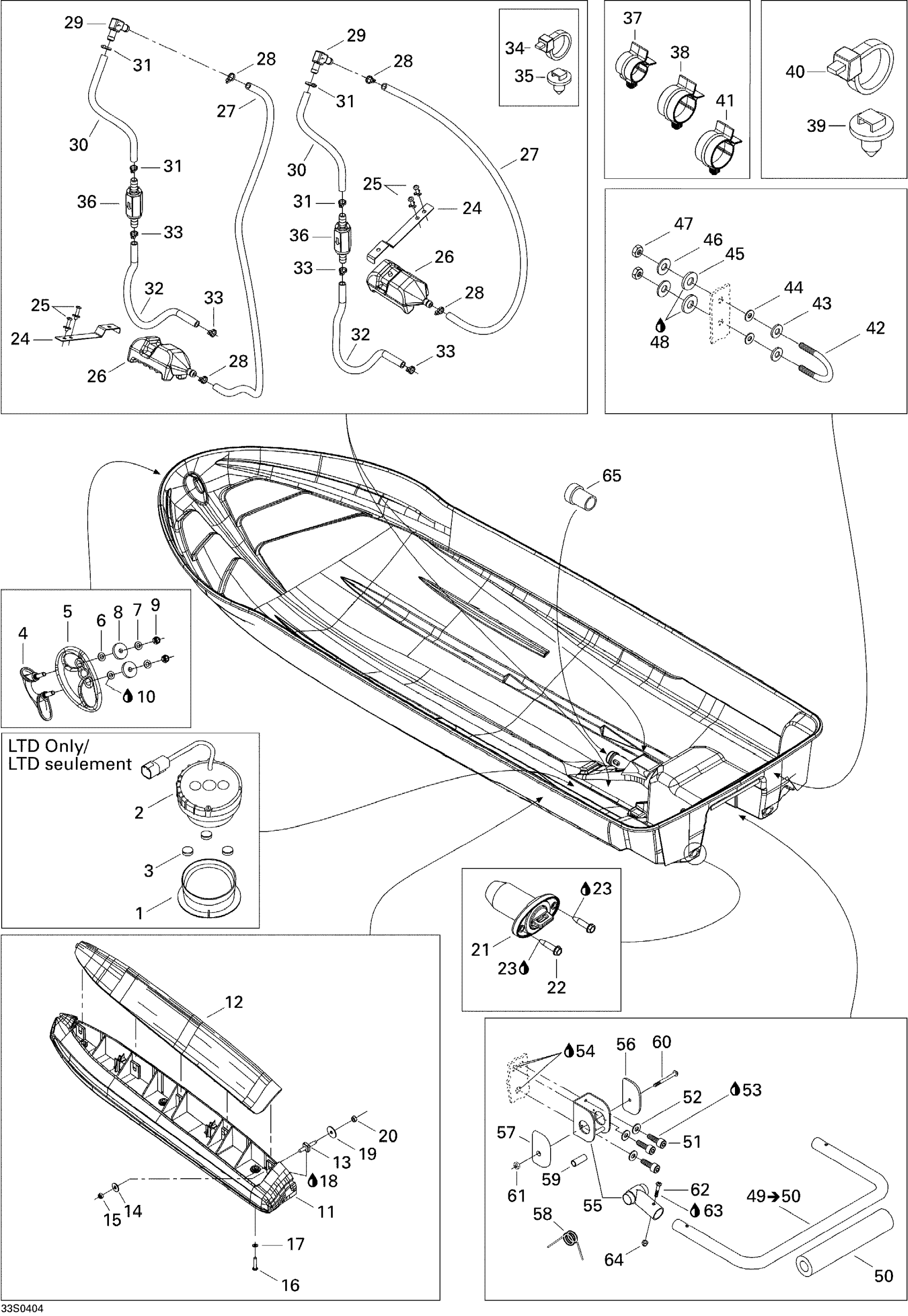

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Hull Diagram
#
1
DEPTH SENDER BASE - Call your local BRP dealership
292000925
Unavailable
2
DEPTH SENSOR - Call your local BRP dealership This part replaces 278001787.
295100317
Unavailable
3
Gel Pad
293550035
Unavailable
4
Eye-Bow (Black) This part replaces 292000708.
292000452
Unavailable
Eye-Bow (Black) This part replaces 292000708.
292000452
Unavailable
5
Black Shell
292001837
Unavailable
Shell, Blue | STD
292000976
Unavailable
6
Stainless, Flat Washer 8 mm
234081600
Unavailable
7
Flat Washer 8 mm, Stainless
250200175
Unavailable
8
Rubber Washer
293830037
Unavailable
9
Hex. Elastic Nut M8
232581600
Unavailable
10
Silicone Sealant 51388, 300 ml
296000309
Unavailable
11
RH SPONSON - Call your local BRP dealership
292000818
Unavailable
LH SPONSON - Call your local BRP dealership
292000816
Unavailable
12
RH SPONSON COVER - Call your local BRP dealership
292000815
Unavailable
LH SPONSON COVER - Call your local BRP dealership
292000817
Unavailable
13
THREADED INSERT - Call your local BRP dealership
293450227
Unavailable
14
Flat Washer M6, Stainless
234062600
Unavailable
15
Hex. Elastic Stop Nut M6
232561600
Unavailable
16
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
17
Flat Washer M5, Stainless
234051600
Unavailable
18
Silicone Sealant 51388, 300 ml
296000309
Unavailable
19
Flat Washer M6
250200046
Unavailable
20
Hex. Elastic Stop Nut M6
232561600
Unavailable
21
Drain Plug
292001252
Unavailable
22
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
23
Silicone Sealant 51388, 300 ml
296000309
Unavailable
24
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
25
Avdel Rivet 3/16"
293150037
Unavailable
26
Bailer Screen
292000688
Unavailable
27
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
28
Tie Wrap 94 mm | 4X4
293750001
Unavailable
29
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
30
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
31
Tie Wrap 94 mm | 4X4
293750001
Unavailable
32
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
33
Tie Wrap 94 mm | 4X4
293750001
Unavailable
34
Tie-Rap 180 mm
414115200
Unavailable
35
Mount Dart
293730040
Unavailable
36
Check Valve
276000093
Unavailable
37
Hose Retainer
275500528
Unavailable
38
Cable Retainer
275500527
Unavailable
39
Mount Dart
293730040
Unavailable
40
Tie-Rap 180 mm
414115200
Unavailable
41
Retainer
275500526
Unavailable
42
U-Clamp
292000933
Unavailable
43
Flat Washer M8.5 x 18
293050001
Unavailable
44
Flat Washer 8 mm, Nylon
234081100
Unavailable
45
RUBBER WASHER - Call your local BRP dealership This part replaces 293830107.
293830161
Unavailable
46
Flat Washer 8 mm, Stainless
250200175
Unavailable
47
Hex. Elastic Nut M8
232581600
Unavailable
48
Silicone Sealant 51388, 300 ml
296000309
Unavailable
49
Stair Tube Ass’Y | Includes items 42 to 43
292000778
Unavailable
50
PROTECTIVE SLEEVE - Call your local BRP dealership
292000781
Unavailable
51
Socket Head Screw M6 X 25, Scotch Grip
250000076
Unavailable
52
Stainless Flat Washer M6
234061600
Unavailable
53
Silicone Sealant 51388, 300 ml
296000309
Unavailable
54
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
Unavailable
55
Support Ass’Y
292000539
Unavailable
56
RH Support Cap
292000540
Unavailable
57
LH Support Cap
292000548
Unavailable
58
RECALL SPRING - Call your local BRP dealership
292000541
Unavailable
59
Plastic Tube
292000542
Unavailable
60
Phillips Screw
211000186
Unavailable
61
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
62
Socket Head Screw M6 X 35
205063560
Unavailable
63
Loctite 243, 10 ml
293800060
Unavailable
64
Nut M6 | Model-Australie, Brezil, Europe
232361600
Unavailable
65
HULL INSERT, 41 MM - Call your local BRP dealership
292000975
Unavailable
