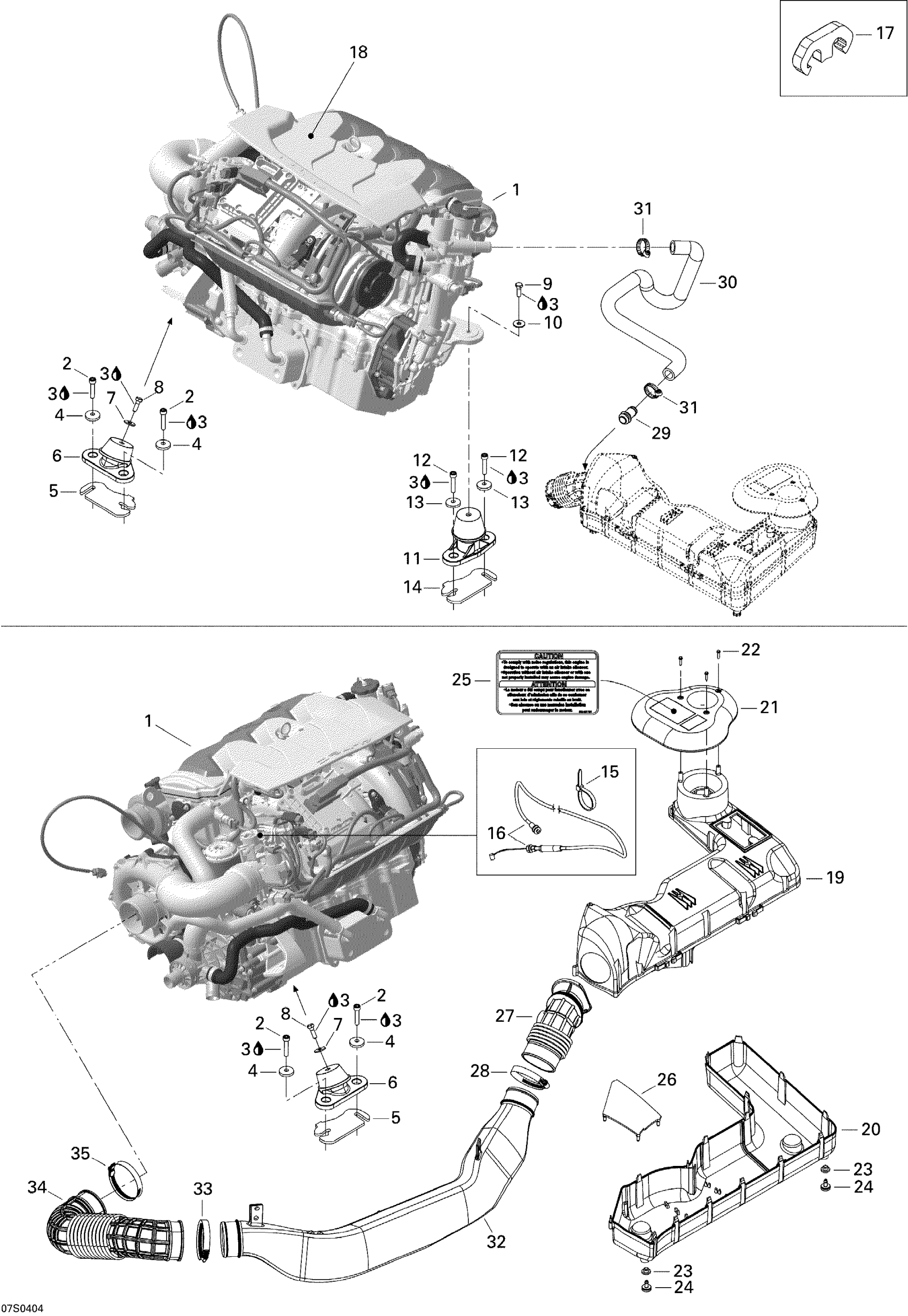

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Engine Support And Air Intake Diagram

#

Description
Price

1

Rotax Engine 1503/Bv

270000601

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

Unavailable

4

Cone Washer

250200018

Unavailable

5

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

Unavailable

6

Engine Support Ass'y

270001081

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

Unavailable

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

Unavailable

11

Engine Support Ass'y

270001096

Unavailable

12

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

13

Cone Washer

250200018

Unavailable

14

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

Unavailable

15

Tie-Rap 180 mm

414115200

Unavailable

16

THROTTLE CABLE - Call your local BRP dealership

277001121

Unavailable

17

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

18

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

19

Upper Air Silencer - Call Your Local BRP Dealership

273000222

Unavailable

20

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

21

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

22

Hex. Flange Screw K40 X 16

241141660

Unavailable

23

GROMMET - Call your local BRP dealership

293720064

Unavailable

24

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

25

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

26

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

27

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

28

Tridon Clamp

293650064

Unavailable

29

Breather Valve

273000234

Unavailable

30

Hose

275500566

Unavailable

31

Tridon Gear Clamp

293650051

Unavailable

32

Intake Hose

273000214

Unavailable

33

Tridon Clamp

293650179

Unavailable

34

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

35

Tridon Clamp

293650179

Unavailable
