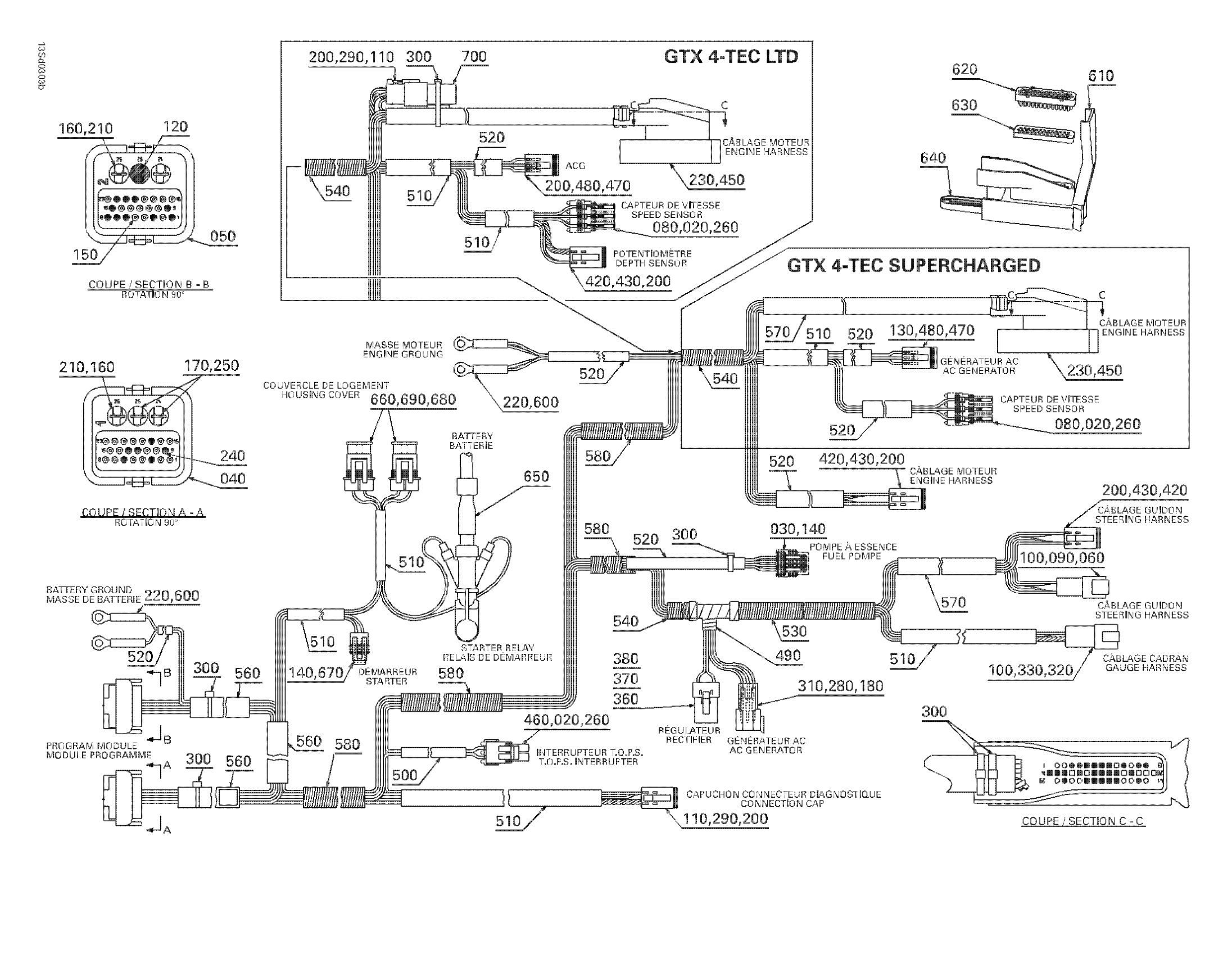

Sea-doo GTX 4-TEC, LTD Supercharged, 2003 10- Wiring Harness Diagram
#
1
Main Wiring Harness | Includes 1 to 690
278001788
Unavailable
1
Main Wiring Harness | LTD Models, Includes 1 to 700
278001854
Unavailable
20
Female Terminal
278000223
$3.19
30
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
278001308
Unavailable
40
Male Connector, 26 Circuits | Includes 16a - 17.
278000993
Unavailable
50
Male Terminal Housing, 26 Circuits
278001062
Unavailable
60
Male Terminal Housing, 6 Circuits
710001539
$19.99
80
Male Housing, 3 Circuits
278000273
$9.59
90
Female Lock, 6 Circuits
278000735
$3.19
100
Male Terminal
278000631
$4.39
110
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
120
SEAL - Call your local BRP dealership
409013900
Unavailable
130
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
140
Female Terminal
278001114
$3.19
150
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
160
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
170
FEMALE TERMINAL - Call your local BRP dealership
409011700
Unavailable
180
Male Terminal
515175823
$4.55
200
Female Terminal
278000632
$2.09
210
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
220
Open Barrel Terminal
278001392
$4.79
230
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership
278001751
Unavailable
240
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
250
Seal
278001223
Unavailable
260
Wire Seal
278000218
$4.39
280
Male Lock, 3 Circuits
409207600
$3.19
290
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
300
Tie Wrap 142 mm
293750002
$1.25
Tie Wrap 142 mm
293750002
$1.25
310
Male Housing
278002378
$13.99
320
Female Housing, 4 Circuits
278000635
$16.49
330
Female Wedge, 4 Circuits
278000636
$4.39
360
Female Terminal Housing, 2 Circuits
278001673
$23.49
370
Female Lock, 2 Circuits
278001671
$3.58
380
FEMALE TERMINAL - Call your local BRP dealership
515175260
Unavailable
420
Male Connector, 4 Circuits | CE
278000739
$19.49
Male Connector, 4 Circuits | CE
278000739
$19.49
430
Male Lock, 4 Circuits | CE
278000738
$3.09
450
FEMALE TERMINAL - Call your local BRP dealership
278001750
Unavailable
460
Male Connector, 2 Circuits
278000220
$15.49
470
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
480
Female Lock
409207200
$4.39
490
Not Available As Spare Part - Friction Washer
Unavailable
500
Not Available As Spare Part - Friction Washer
Unavailable
510
Not Available As Spare Part - Friction Washer
Unavailable
520
Not Available As Spare Part - Friction Washer
Unavailable
530
Not Available As Spare Part - Friction Washer
Unavailable
540
Not Available As Spare Part - Friction Washer
Unavailable
560
Not Available As Spare Part - Friction Washer
Unavailable
570
Not Available As Spare Part - Friction Washer
Unavailable
580
Not Available As Spare Part - Friction Washer
Unavailable
600
Not Available As Spare Part - Friction Washer
Unavailable
610
Not Available As Spare Part - Friction Washer
Unavailable
620
Not Available As Spare Part - Friction Washer
Unavailable
630
Not Available As Spare Part - Friction Washer
Unavailable
640
Not Available As Spare Part - Friction Washer
Unavailable
650
Battery Cable
278001861
Unavailable
660
Fuse, 30 Amperes
410917200
$3.28
670
Male Connector, 2 Circuits
278001113
$16.86
680
Fuse Holder
278001325
$8.79
690
Female Terminal
710000357
$7.69
700
BUS CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278001892
Unavailable
