10- Steering And Cluster Harness

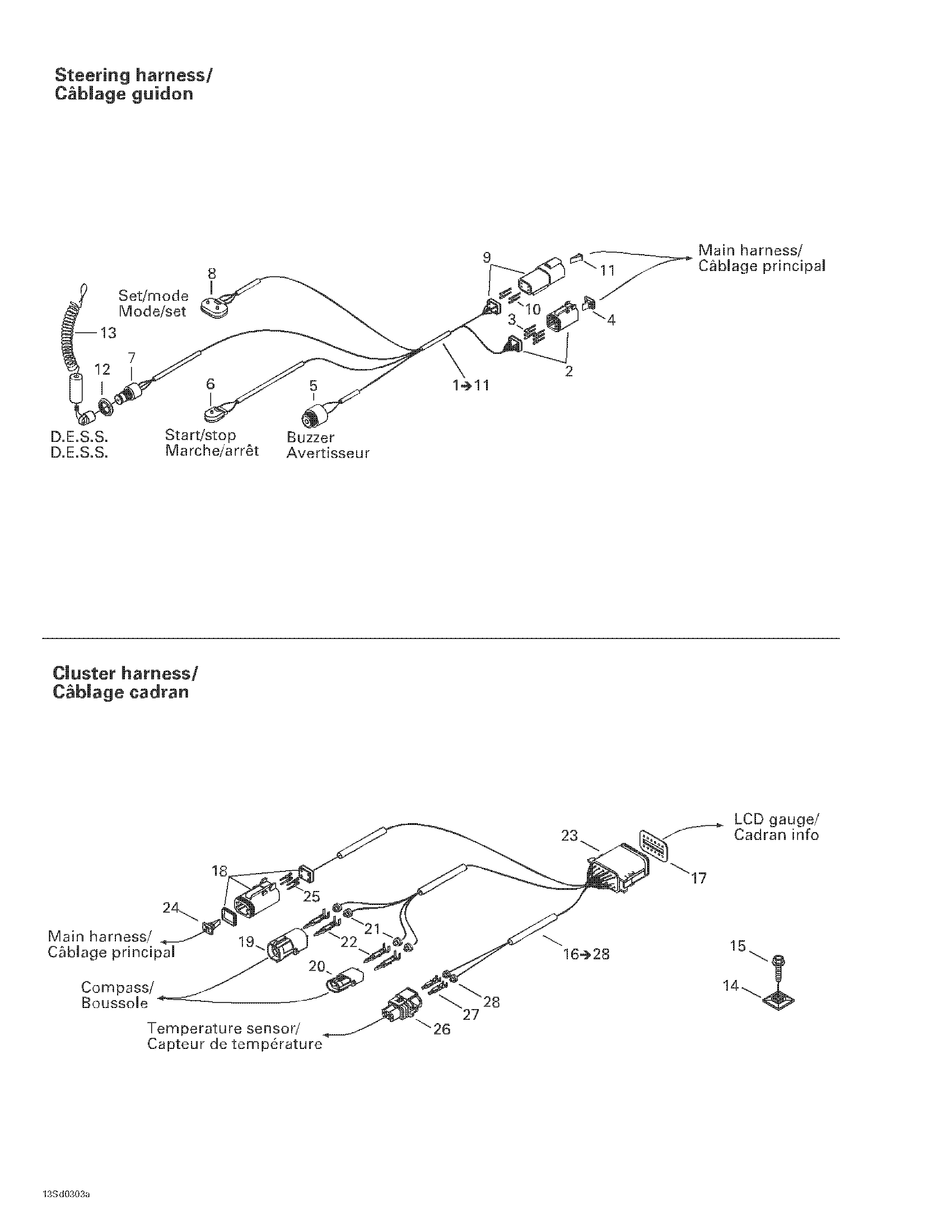

Sea-doo GTX 4-TEC, LTD Supercharged, 2003 10- Steering And Cluster Harness Diagram
#
Description
Price
1
STEERING HARNESS ASSY - Call your local BRP dealership | Includes 1 to 11
278001732
Unavailable
2
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
3
Female Terminal
278000632
$2.09
4
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
5
BUZZER - Call your local BRP dealership
278001586
Unavailable
6
START/STOP SWITCH - Call your local BRP dealership
278001733
Unavailable
7
Safety Switch This part replaces 278002325.
278002773
$114.99
8
SET/MODE SWITCH - Call your local BRP dealership
278001755
Unavailable
9
Female Housing, 4 Circuits
278000635
$16.49
10
Male Terminal
278000631
$4.39
11
Female Wedge, 4 Circuits
278000636
$4.39
12
Safety Nut (DESS Switch)
278002963
$3.28
13
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
14
Tie Rap Mount
293750026
$3.09
15
Hex. Flange Screw K40 X 13
241141360
$0.67
16
Cluster Harness Ass’Y | Includes 15 to 27
278001702
Unavailable
17
Female Lock, 12 Circuits
409015700
$4.55
18
Male Connector, 4 Circuits | CE
278000739
$19.49
19
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
20
Female Housing, 2 Circuits
278000217
$9.59
21
Wire Seal
278000218
$4.39
22
Male Terminal | XT Models
278000222
$3.19
23
Female Terminal Housing, 12 Circuits
278002377
$49.99
24
Male Lock, 4 Circuits | CE
278000738
$3.09
25
Female Terminal
278000632
$2.09
26
Male Housing, 2 Circuits
278001005
$19.49
27
Female Terminal
278000998
$4.39
28
Wire Seal
278000999
$3.19
