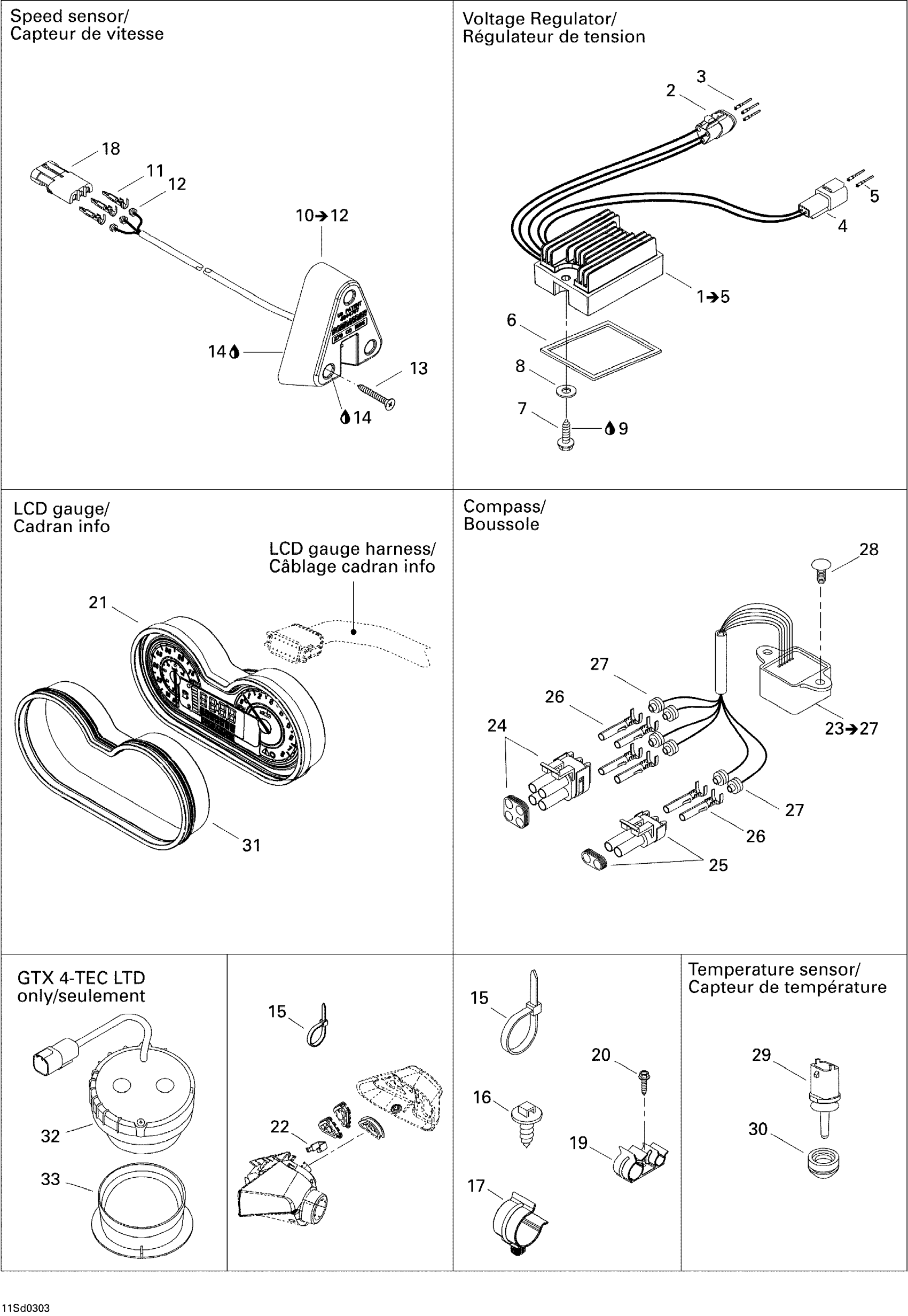

Sea-doo GTX 4-TEC, LTD Supercharged, 2003 Electrical Accessories Diagram

#

Description
Price

1

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

2

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

3

Male Terminal

278000631

$4.12

4

Male Housing, 2 Circuits

409206900

$8.98

5

Male Terminal

515175568

$7.48

6

SEAL - Call your local BRP dealership

293250123

Unavailable

7

Hex. Screw 10-14 X 7/8”

211000023

$2.91

8

Stainless Flat Washer M6

234061600

$0.25

9

Loctite 271, 10 ml

293800005

$20.77

10

Speed Sensor

278001993

$143.62

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

$35.72

15

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 142 mm

293750002

$0.88

Tie-Rap 206 mm

293750027

$2.75

Tie Wrap 368 mm

293750008

$0.85

16

Mount Dart

293730040

$0.86

17

Cable Retainer

275500527

$2.75

18

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

19

RETAINER - Call your local BRP dealership

275500553

Unavailable

20

Hex. Flange Screw K40 X 16

241141660

$1.25

21

LCD Gauge Yellow, M-506 Viper Red, B-17

278001823

Unavailable

LCD GAUGE SEASHORE METALLIC, B-207 - Call your local BRP dealership | Seashore metallic (B-207) GTX 4-TEC LTD.

278001844

Unavailable

22

U Bracket

277001069

Unavailable

23

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

24

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

25

Male Connector, 2 Circuits

278000220

$11.02

26

Female Terminal

278000223

$2.55

27

Wire Seal

278000218

$3.48

28

Black Dart

293730010

$0.81

29

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

30

INSULATOR - Call your local BRP dealership

278001054

Unavailable

31

GAUGE SUPPORT - Call your local BRP dealership

278001603

Unavailable

32

DEPTH SENSOR - Call your local BRP dealership This part replaces 278001787.

295100317

Unavailable

33

DEPTH SENDER BASE - Call your local BRP dealership

292000925

Unavailable
