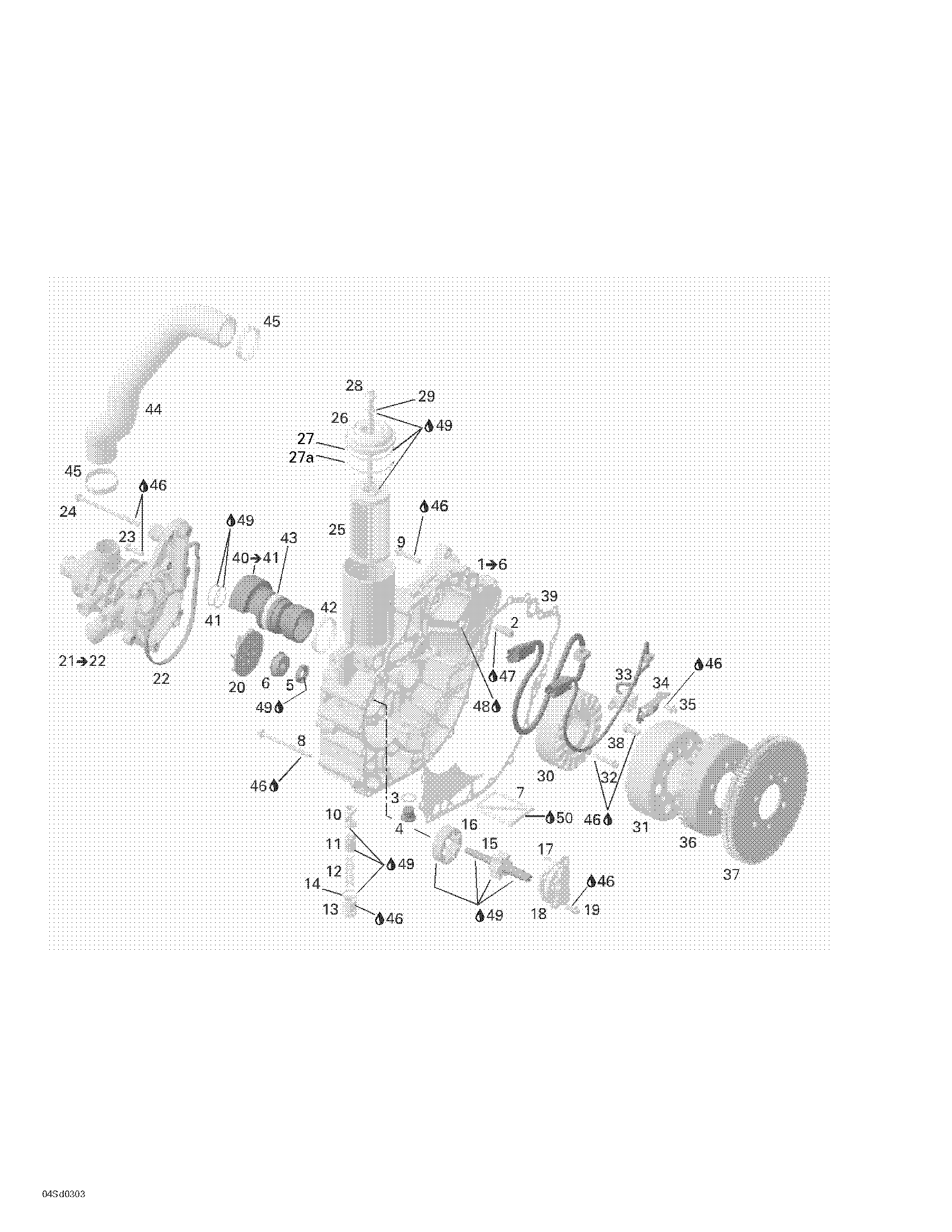

Sea-doo GTX 4-TEC, LTD Supercharged, 2003 PTO Cover And Magneto Diagram

#

Description
Price

1

TIMING/DRIVE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 6

420811579

Unavailable

2

Spray Nozzle

420856010

Unavailable

3

Gasket Ring

420430624

$1.73

4

Plug Screw M16

420240233

Unavailable

5

Oil Seal

420650315

$11.04

6

Rotary Seal

420650371

$41.01

7

Oil Sieve

420956950

$14.33

8

Torx Flange Screw M6 X 85

420641228

$7.01

9

Torx Flange Screw M6 X 35

420641258

$3.19

10

Valve Seat Sleeve

420256606

$27.58

11

Piston Valve

420256638

Unavailable

12

Compression Spring

420939211

$8.22

13

Plug Screw M20 X 1.5

420641052

$35.79

14

O-Ring

420230890

$5.06

15

Pump Shaft Ass'y

420837472

$52.21

16

Oil Pump Rotor 16 mm

420956675

$33.55

17

Needle Pin

420929070

$1.79

18

Oil Pump Cover

420811591

$34.30

19

Torx Flange Screw M6 X 16

420641048

$2.82

20

Impeller

420922801

$16.39

21

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$276.84

22

Water Pump Housing Gasket | Included in gasket kit

420950840

$13.07

23

Torx Flange Screw M6 X 25

420641238

$3.07

24

Torx Flange Screw M6 X 105

420641338

$7.01

25

Oil Filter

420956741

$12.79

26

Oil Filter Cover

420610329

$31.31

27a

O-Ring

420230923

$2.97

27

O-Ring

420850500

$3.01

28

Oil Filter Screw Kit

295501207

$37.28

29

O-Ring

420950860

$3.67

30

STATOR ASS'Y - Call your local BRP dealership

420889720

Unavailable

31

MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership

420889710

Unavailable

32

Torx Flange Screw M6 X 35

420641258

$3.19

33

CRANKSHAFT SENSOR - Call your local BRP dealership

420664140

Unavailable

34

Retaining Plate

420926300

$14.90

35

Torx Flange Screw M6 X 16

420641048

$2.82

36

Trigger Wheel

420966851

$17.13

37

Double Starter Gear 86/86 Teeth

420834485

Unavailable

38

Hex Screw

295501162

$13.16

39

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

40

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$131.31

41

O-Ring

420631612

$4.04

42

Gear Clamp

420851653

$7.01

43

Gear Clamp 46.8-50.0MM

420853023

$7.01

44

Formed Hose

420922822

$61.16

45

Oetiker Clamp

420851687

$10.82

46

Loctite 243, 10 ml

293800060

$21.49

47

Sealant Loctite 648

219703000

$41.01

48

Dow Corning 111, 150 g

413707000

$59.99

49

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

50

Loctite 5910, 300 ml

293800081

$57.99
