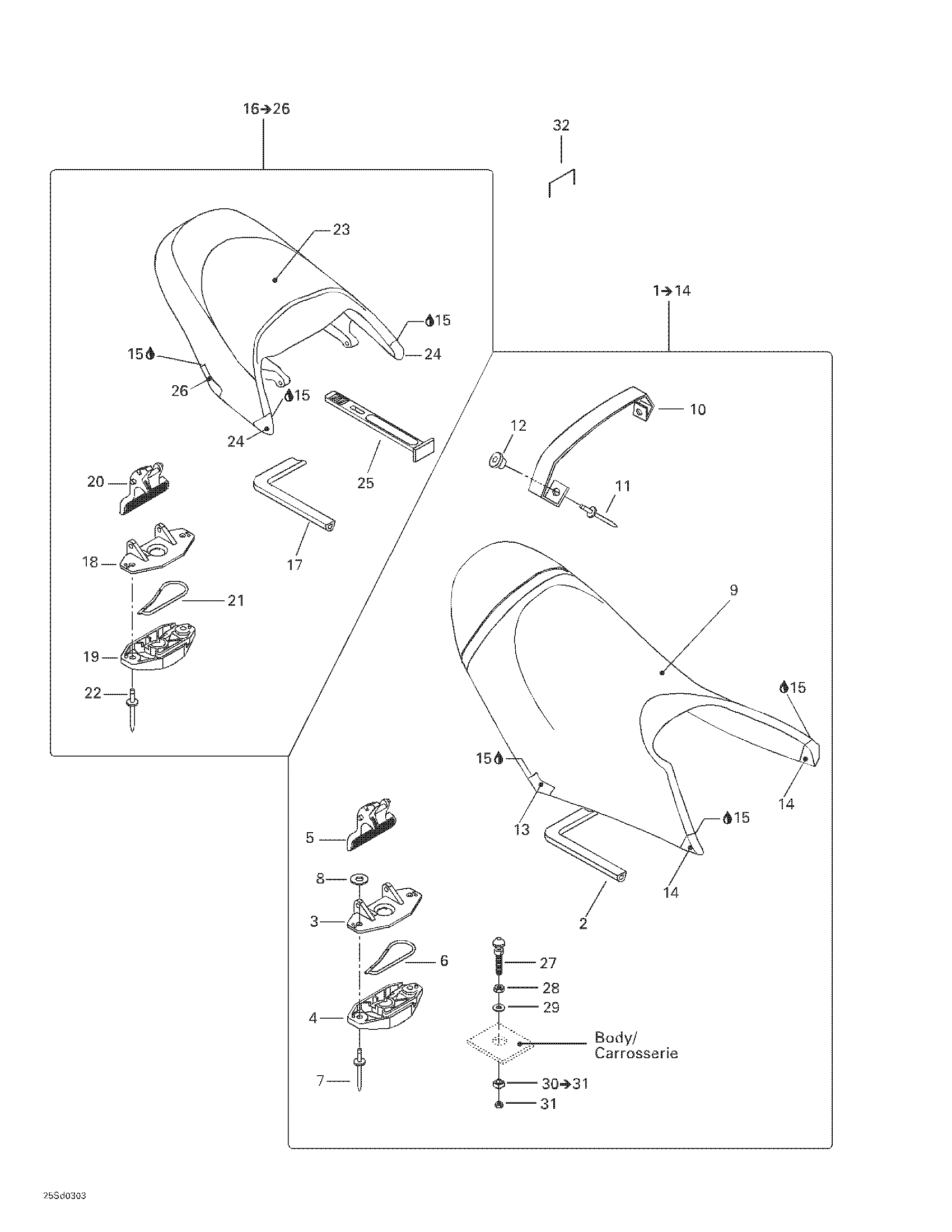

Sea-doo GTX 4-TEC, LTD Supercharged, 2003 09- Seat Diagram
#
1
Front Seat Ass’Y, Clay | Includes 1 - 14. GTX 4-TEC LTD.
269000889
Unavailable
Front Seat Ass’Y, Silver | Includes 1 to 14
269001021
Unavailable
2
Was 293200062 Seal
219704366
$76.49
3
Latch Ass'y
269700109
$24.99
4
Latch Ass'y
269700109
$24.99
5
Latch Ass'y
269700109
$24.99
6
Latch Spring
269700017
$9.19
7
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
8
Stainless Flat Washer M6
234061600
$0.33
9
Front Seat Cover And Foam, Clay | GTX 4-TEC LTD.
269000849
Unavailable
Front Seat Cover And Foam, Silver
269001026
Unavailable
10
Seat Strap, Clay | GTX 4-TEC LTD.
269000850
Unavailable
Seat Strap, Silver
269000962
Unavailable
11
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
12
Grommet
293720067
$12.99
13
RH Seat Corner, Clay | GTX 4-TEC LTD.
269000851
Unavailable
RH Seat Corner, Silver
269000963
Unavailable
LH Seat Corner, Clay | GTX 4-TEC LTD.
269000852
Unavailable
LH Seat Corner, Silver
269000964
Unavailable
14
RH Front Seat Corner, Clay | GTX 4-TEC LTD.
269000867
Unavailable
RH Front Seat Corner, Silver
269000965
Unavailable
LH Front Seat Corner, Clay | GTX 4-TEC LTD.
269000868
Unavailable
LH Front Seat Corner, Silver
269000966
Unavailable
15
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
16
Rear Seat Ass’Y, Clay | Includes 16 - 26. GTX 4-TEC LTD.
269000896
Unavailable
Rear Seat Ass’Y, Silver | Includes 16 to 26
269001022
Unavailable
17
Was 293200062 Seal
219704366
$76.49
18
Latch Ass'y
269700109
$24.99
19
Latch Ass'y
269700109
$24.99
20
Latch Ass'y
269700109
$24.99
21
Latch Spring
269700017
$9.19
22
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
23
Rear Seat Cover And Foam, Clay | GTX 4-TEC LTD.
269000844
Unavailable
Rear Seat Cover And Foam, Silver
269001027
Unavailable
24
RH Seat Corner, Clay | GTX 4-TEC LTD.
269000845
Unavailable
RH Seat Corner, Silver
269000969
Unavailable
LH Seat Corner, Clay | GTX 4-TEC LTD.
269000846
Unavailable
LH Seat Corner, Silver
269000970
Unavailable
25
Strap
269502417
$17.69
26
Seat Corner, Clay | GTX 4-TEC LTD.
269000489
Unavailable
SEAT CORNER, SILVER - Call your local BRP dealership
269000971
Unavailable
27
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
28
Hex. Jam Nut M10
232100600
$2.22
29
Flat Washer 10 mm, Stainless
234002600
$2.22
30
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
31
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
32
Staple
293730005
Unavailable
