Description

Price

1

Steering Stem

277000562400

Unavailable

Steering Stem

277000758400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

4

Hex. Elastic Nut M8

232581600

$1.48

5

Handlebar

277001012

Unavailable

Handlebar | LTD Models

277001132

Unavailable

6

Hex. Screw M6 X 30

207063060

$1.89

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

Handle Pad Arthen Clay, M-532 | STD

277001096

Unavailable

Handle Pad Metalic Silver (M-519) | WAKE

277001100

Unavailable

10

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

11

Flat Washer M6, Stainless

234062600

$0.77

12

PLATE - Call your local BRP dealership

277000549

Unavailable

Plate, Black

277000766

Unavailable

13

HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9

277001481

Unavailable

14

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

15

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

16

Socket Head Screw M6 X 16

250000036

$9.00

17

Housing Cover Ass’Y | WAKE / Includes 17 to 21

277001103

Unavailable

Cover Housing Ass’Y | GTX 4-TEC LTD.

277001124

Unavailable

18

Stop Knob

278001713

$18.49

19

MODE KNOB - Call your local BRP dealership

278001714

Unavailable

20

SET KNOB - Call your local BRP dealership

278001715

Unavailable

21

THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19

277001483

Unavailable

22

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

23

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

24

PIN - Call your local BRP dealership

277000381

Unavailable

25

Throttle Housing Cover

277001102

Unavailable

Throttle Housing Cover | GTX 4-TEC LTD.

277001128

Unavailable

26

Handle Grip | STD

277001130

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Flat Washer M6, Stainless

234062600

$0.77

29

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

30

Black, Cap

277000203

$9.39

31

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Black, Cap

277000203

$9.39

34

Flat Washer M6, Stainless

234062600

$0.77

35

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

36

UPPER STEERING COVER, BLACK - Call your local BRP dealership

277000952

Unavailable

Upper Steering Cover, Earth Gray | LTD Models

277001098

Unavailable

37

Lower Steering Cover, Earth Gray | LTD Models

277001099

Unavailable

LOWER STEERING COVER, BLACK - Call your local BRP dealership

277001145

Unavailable

38

Flat Washer M5, Stainless

234051600

$0.77

39

Hex. Flange Screw K40 X 16

241141660

$1.48

40

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

41

Hex. Elastic Stop Nut M6

232561600

$1.15

42

Arm Thrust | Includes 43 to 44

277000519

Unavailable

43

Hex. Elastic Stop Nut M6

232561600

$1.15

44

Hex. Screw M6 X 25

207162560

$1.47

45

Flat Washer M6, Stainless

234062600

$0.77

46

Hex. Screw M6 X 30

211000081

$3.59

47

Ball Joint

277001180

$35.99

48

Steering Cable Ass’Y | Includes 44 to 47

277000949

Unavailable

49

Ajustment Knob

277000782

$22.99

50

Hex. Nut 1/4"-28

211100056

$0.69

51

Terminal Wiper

277000441

$11.99

52

Rubber Washer

293830063

$1.90

53

Half Ring

277001527

$10.37

54

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

55

Terminal Wiper

277000441

$11.99

56

Hex. Nut 1/4"-28

211100056

$0.69

57

Ball Joint

277000775

$51.99

58

Hex. Screw M6 X 35

207063560

$2.22

59

Hex. Elastic Stop Nut M6

232561600

$1.15

60

Stainless Flat Washer M6

234061600

$0.33

61

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

62

Hex. Screw M6 X 50

207065060

$2.22

63

Stainless Flat Washer M6

234061600

$0.33

64

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

65

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

66

Hex. Nut M6

232061600

$1.15

67

Hex. Elastic Stop Nut M6

232561600

$1.15

68

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

69

Nut Housing Ass’Y | Includes 64 to 65

271001115

Unavailable

70

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

71

Synthetic Grease, 400 G

293550010

Unavailable

72

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

73

Latch Stud

291001420

Unavailable

74

Hex. Forming Screw M6 X 20

207162060

$1.29

75

Stainless Flat Washer M6

234061600

$0.33

76

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

77

Hex. Elastic Nut M8

232581600

$1.48

78

Stainless, Flat Washer 8 mm

234081600

$0.55

79

ADJUSTER HANDLE - Call your local BRP dealership

277000764

Unavailable

80

Loctite 243, 10 ml

293800060

$21.49

81

Flat Washer 8 mm, Stainless

234082600

$2.43

82

Hex. Jam Nut M8

232180600

$0.67

83

Loctite 271, 10 ml

293800005

$26.99

84

Was 293800041 Loctite Primer 7649

219704458

$39.99

85

Stopper Bushing

277000786

Unavailable

86

ADJUSTER SCREW - Call your local BRP dealership

211000145

Unavailable

87

BLOCK - Call your local BRP dealership

277000761

Unavailable

88

Steering Support

277000901

Unavailable

89

STOPPER - Call your local BRP dealership

277000762

Unavailable

90

Not Available As Spare Part - Friction Washer

Unavailable

91

THREADED PIVOT - Call your local BRP dealership

277000763

Unavailable

92

SOCKET HEAD SCREW M10 X 73 SCOTCH GRIP - Call your local BRP dealership

250000004

Unavailable

93

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

94

SUPPORT BUSHING - Call your local BRP dealership

277000844

Unavailable

95

Flat Washer 10 mm, Stainless

234001600

$1.15

96

Hex. Jam Nut M10

232100600

$2.22

97

CLAMP TIE - Call your local BRP dealership

293750021

Unavailable

98

Pop Rivet 3/16"

293150008

$0.50

99

Tie Wrap 368 mm

293750008

$1.04

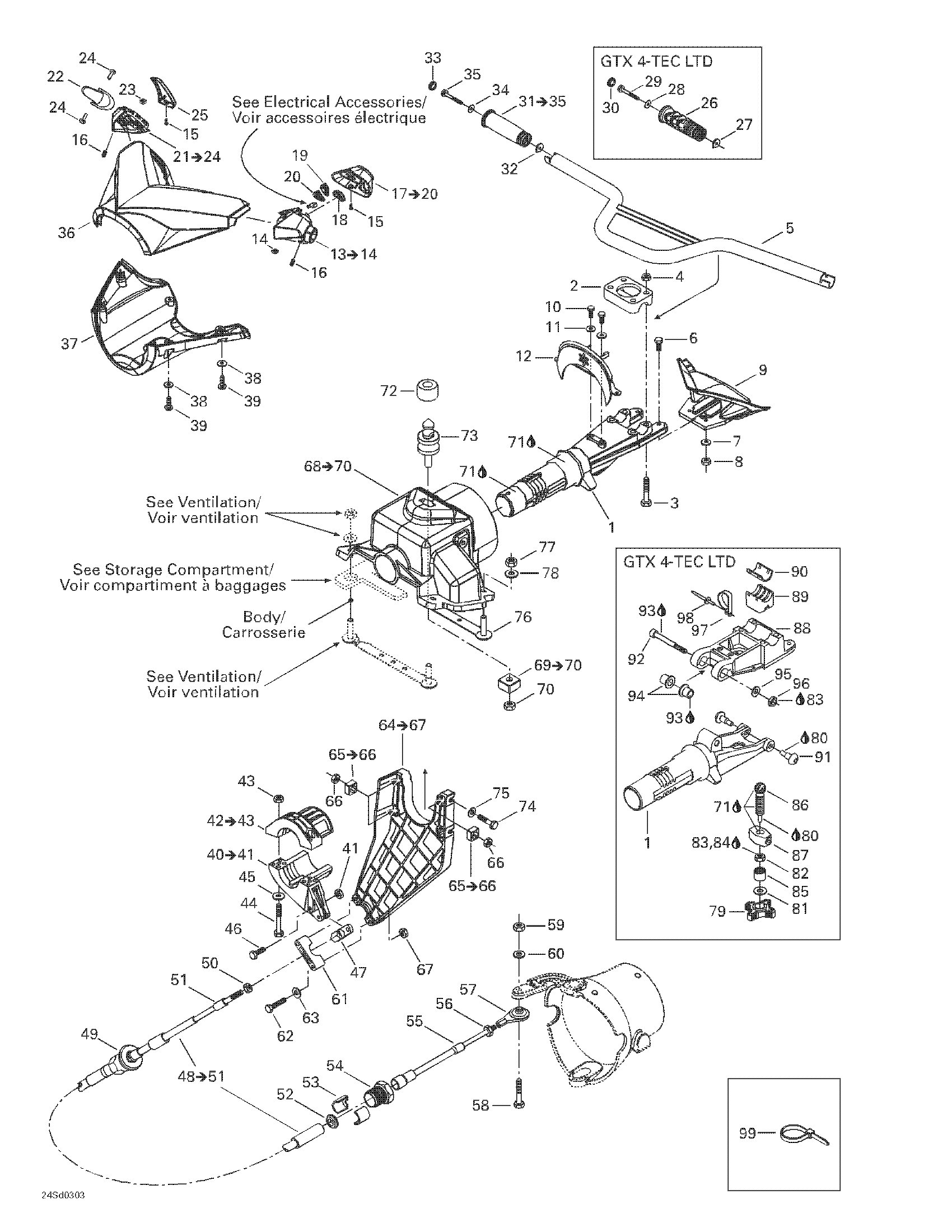

Sea-doo GTX 4-TEC, LTD Supercharged, 2003 Steering System Diagram
