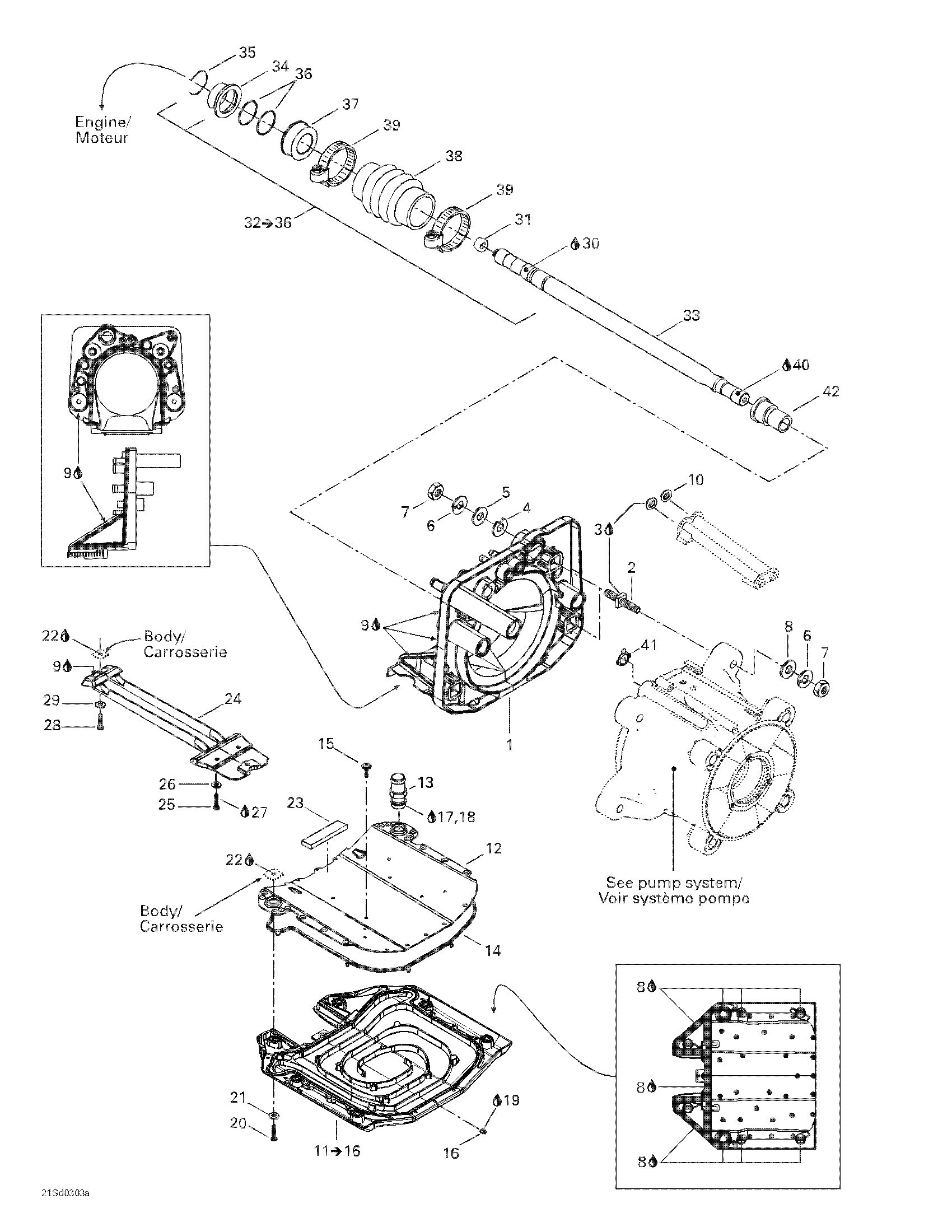

Sea-doo GTX 4-TEC, LTD Supercharged, 2003 Propulsion System Diagram

#

Description
Price

1

Pump Support

271001545

$132.49

2

Square Stud

250300022

$20.99

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

4

Shim 0.3 mm

272000053

$11.49

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

7

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

8

Flat Washer 10 mm, Stainless

234001600

$1.15

9

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

10

Watertight Seal

293250084

$7.49

11

Riding Plate Ass’Y | Includes Items 4 to 9

271001187

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

STRAIGHT PLASTIC FITTING - Call your local BRP dealership

293710087

Unavailable

14

SEAL - Call your local BRP dealership This part replaces 293250141.

293250206

Unavailable

15

Torx Button Head Screw M6 X 14

250000064

$6.66

16

Socket Drain Plug M6 X 12

250500005

$16.49

17

Was 293800041 Loctite Primer 7649

219704458

$39.99

18

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

19

Was 293800013 Loctite 56765

219704454

$65.99

20

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

21

Stainless, Flat Washer 8 mm

234081600

$0.55

22

Silicone Sealant 51388, 300 ml

296000309

$36.99

23

Gasket, Neoprene 2000Mm Long

219704476

$15.36

24

PUMP GRATE - Call your local BRP dealership

271001169

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.59

26

Stainless Flat Washer M6

234061600

$0.33

27

Loctite 271, 10 ml

293800005

$26.99

28

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Drive Shaft Plug

272000173

$8.68

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Drive Shaft

271001449

$296.99

34

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

35

C-Clip

271001575

$6.11

36

O-Ring

293300044

$1.05

37

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

38

Bellows

272000183

$28.99

39

Norma Clamp

293650077

$7.41

40

Synthetic Grease, 400 G

293550010

Unavailable

41

Reducer

291001888

Unavailable

42

HULL INSERT, 41 MM - Call your local BRP dealership

292000975

Unavailable
