01- Supercharger

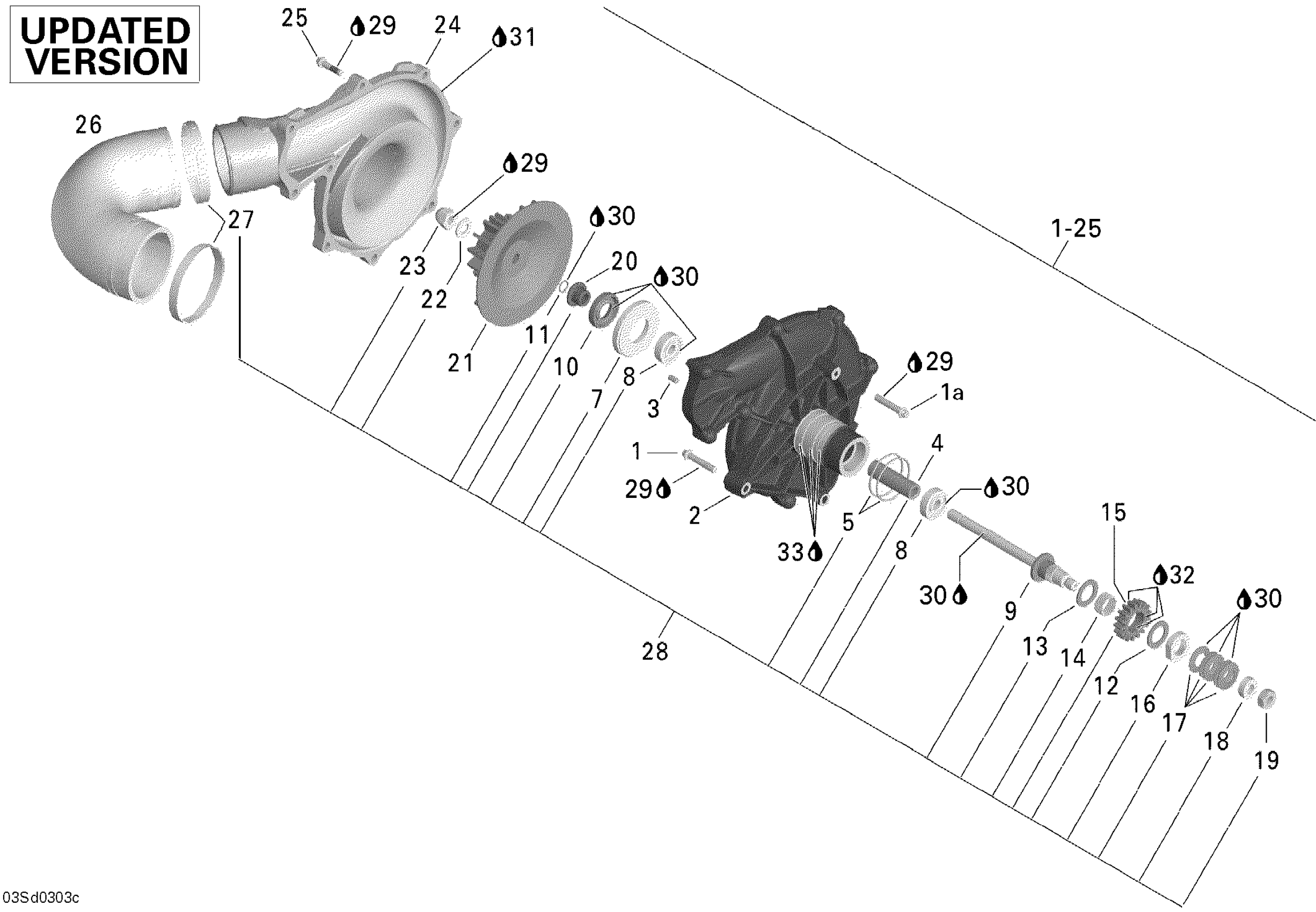

Sea-doo GTX 4-TEC, LTD Supercharged, 2003 01- Supercharger Diagram
#
Description
Price
1
Supercharger Ass'y | Includes 1 to 26 This part replaces 420881936.
420881995
$1.00
1a
Torx Flange Screw M6 X 35
420641258
$3.38
2
Compressor Base Plate
420867180
$264.99
3
Drive Pin 5 X 10
420929650
$1.68
4
Not Available As Spare Part - Friction Washer
Unavailable
5
O-Ring | Included in gasket kit
420650270
$8.01
7
THRUST WASHER - Call your local BRP dealership
420926393
Unavailable
8
Bearing Ball This part replaces 420832710.
420832713
$39.99
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Oil Seal
420950940
$30.49
11
O-Ring
420950950
$1.01
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Needle Pin This part replaces 420632430.
420632435
$35.99
15
Not Available As Spare Part - Friction Washer
Unavailable
16
LOCK WASHER - Call your local BRP dealership
420926377
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
HEX. NUT - Call your local BRP dealership
420942950
Unavailable
20
STEP COLLAR - Call your local BRP dealership
420947012
Unavailable
21
Compressor Impeller
420867191
$759.99
22
SHIM - Call your local BRP dealership
420927413
Unavailable
23
CAP NUT - Call your local BRP dealership
420842833
Unavailable
24
Compressor Housing
420867154
$114.99
25
Torx Flange Screw M6 X 25
420641238
$3.27
26
FORMED HOSE - Call your local BRP dealership
420660151
Unavailable
27
Gear Clamp
420851703
$22.99
28
Supercharger Kit Bv This part replaces 420881940.
420881151
$481.49
29
Loctite 243, 10 ml
293800060
$21.49
30
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
31
Loctite 5910, 300 ml
293800081
$57.99
32
Isoflex Grease, TOPAS NB52, 50 g
293550021
$56.99
33
Grease, Super Lube
293550030
$28.99
