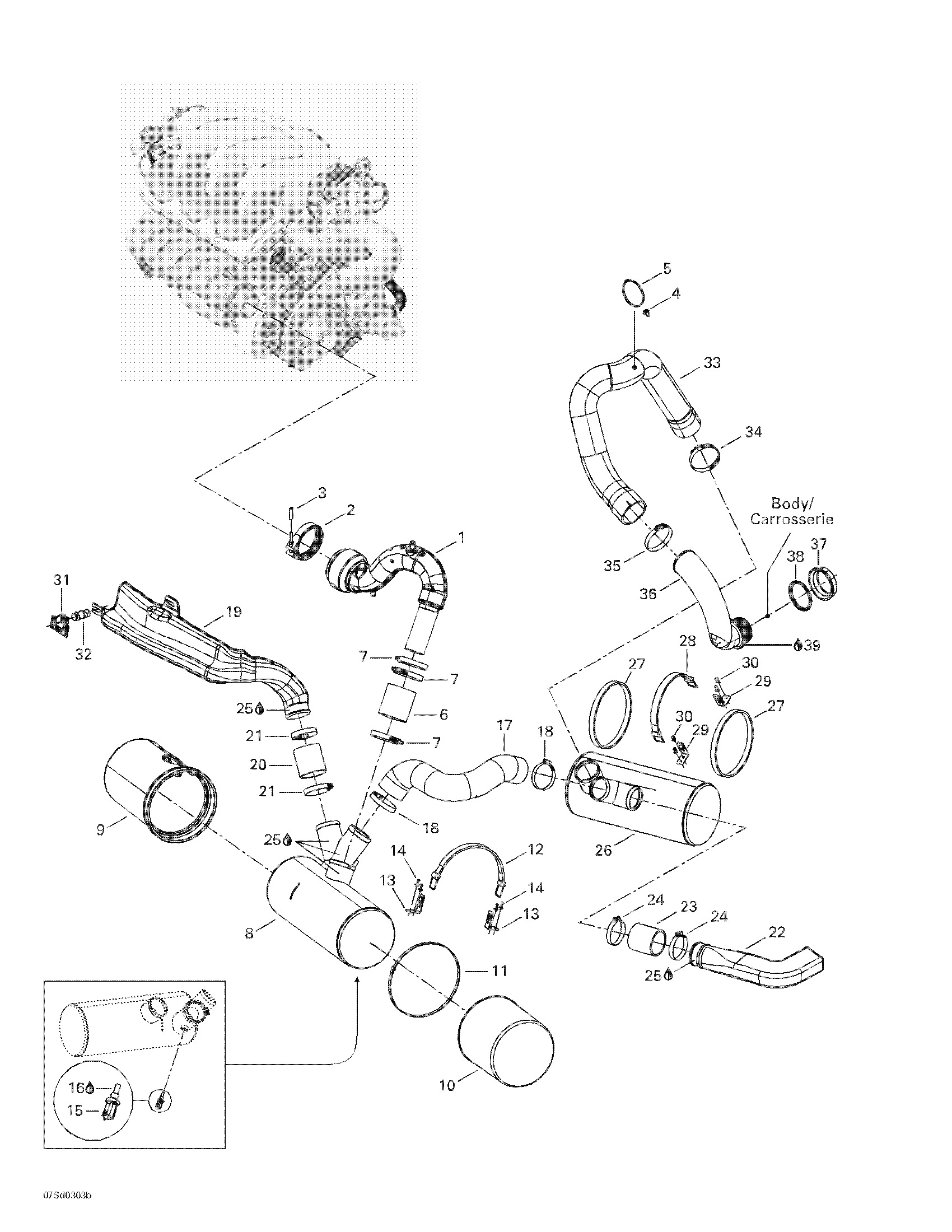

Sea-doo GTX 4-TEC, LTD Supercharged, 2003 01- Muffler Diagram
#
1
EXHAUST PIPE - Call your local BRP dealership
274001049
Unavailable
2
Exhaust Clamp This part replaces 274000959.
274001472
$58.99
3
Polyurethane Hose 10000Mm Long
219704410
$56.99
4
Mount Dart
293730040
$1.04
5
Tie Wrap 368 mm
293750008
$1.04
6
Exhaust Hose
274001302
$35.99
7
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
8
Muffler
274000982
Unavailable
9
Front Muffler Cover
274001008
Unavailable
10
REAR MUFFLER COVER - Call your local BRP dealership
274000984
Unavailable
11
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
12
Retainer Strap
293850097
$11.64
13
STRAP CLIP 90 - Call your local BRP dealership
293850076
Unavailable
14
Avdel Rivet 3/16"
293150037
$0.56
15
Temperature Sensor
278002895
$39.99
16
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
17
Front Hose
274001013
Unavailable
18
Tridon Clamp
293650179
$11.49
19
LH Resonator
274000993
Unavailable
20
Exhaust Hose
274001014
Unavailable
21
Tridon Clamp
293650179
$11.49
22
Straight Resonator
274000994
Unavailable
23
Exhaust Hose
274001014
Unavailable
24
Tridon Clamp
293650179
$11.49
25
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
26
Secondary Muffler
274000988
Unavailable
27
Rubber Strip
293830034
Unavailable
28
Retainer Strap
293850097
$11.64
29
STRAP CLIP 90 - Call your local BRP dealership
293850076
Unavailable
30
Avdel Rivet 3/16"
293150037
$0.56
31
Pad Support
291001352
Unavailable
32
RUBBER PAD - Call your local BRP dealership
293830062
Unavailable
33
REAR HOSE - Call your local BRP dealership
274001015
Unavailable
34
Tridon Clamp
293650179
$11.49
35
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
36
Exhaust Outlet
274000901
Unavailable
37
Nut 72 mm
274000224
$16.34
38
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
39
Silicone Sealant 51388, 300 ml
296000309
$36.99
