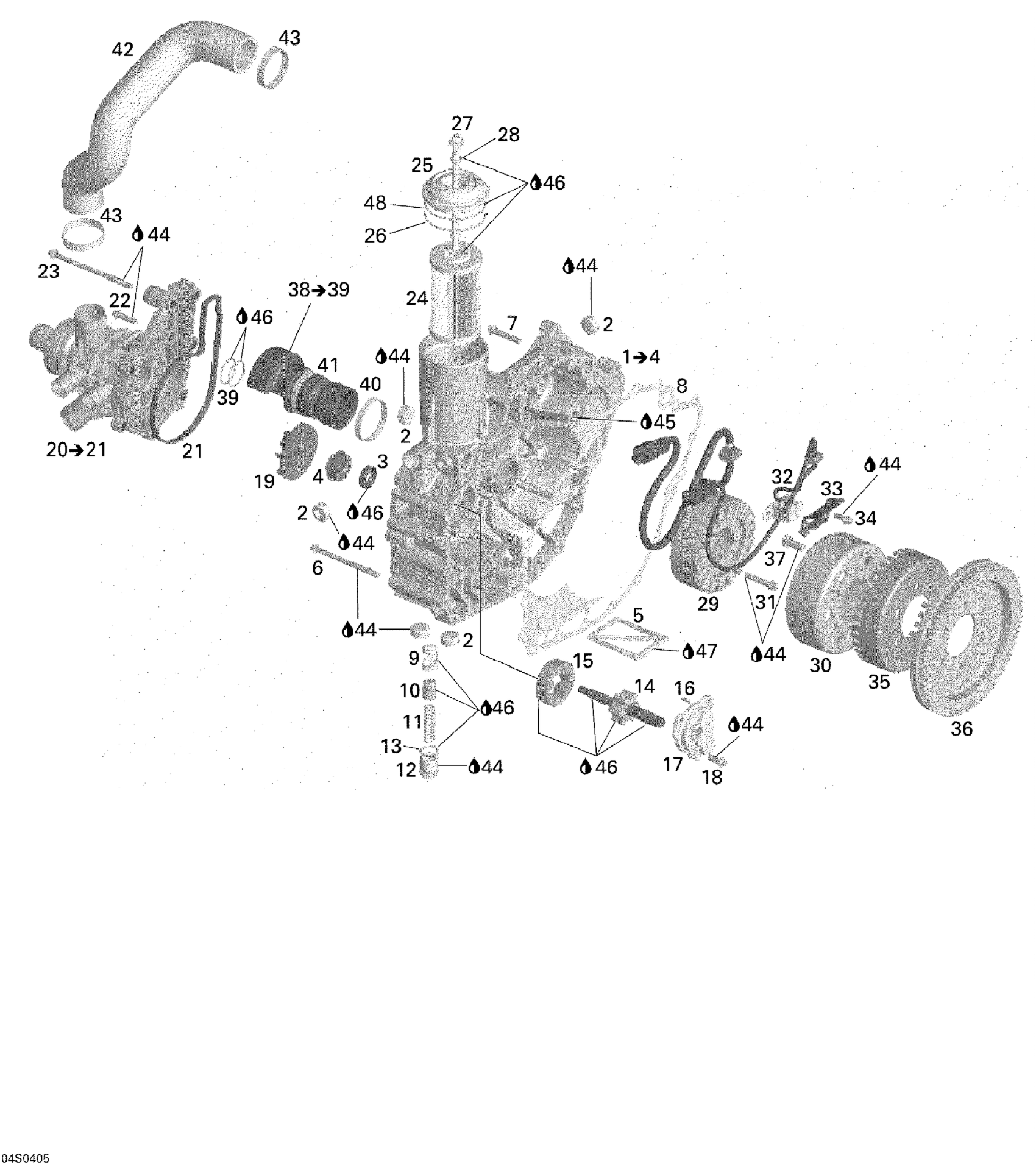

Sea-doo GTX 4-TEC, 2004 Magneto Diagram
#
1
Timing Drive Cover | Includes 1 to 4
420812620
Unavailable
2
Plug Screw M20 X 1.5
420641317
Unavailable
3
Oil Seal
420650315
Unavailable
4
Rotary Seal
420650371
Unavailable
5
Oil Sieve
420956950
Unavailable
6
Torx Flange Screw M6 X 85
420641228
Unavailable
7
Torx Flange Screw M6 X 35
420641258
Unavailable
8
Timing Drive Cover Gasket (1603 NA) | Included in gasket kit
420931130
Unavailable
9
Valve Seat Sleeve
420256606
Unavailable
10
Piston Valve
420256638
Unavailable
11
Compression Spring
420939211
Unavailable
12
Plug Screw M20 X 1.5
420641052
Unavailable
13
O-Ring
420230890
Unavailable
14
Pump Shaft Ass'y
420837472
Unavailable
15
Oil Pump Rotor 16 mm
420956675
Unavailable
16
Needle Pin
420929070
Unavailable
17
Oil Pump Cover
420811591
Unavailable
18
Torx Flange Screw M6 X 16
420641048
Unavailable
19
Impeller
420922801
Unavailable
20
Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.
420922921
Unavailable
21
Water Pump Housing Gasket | Included in gasket kit
420950840
Unavailable
22
Torx Flange Screw M6 X 25
420641238
Unavailable
23
Torx Flange Screw M6 X 105
420641338
Unavailable
24
Oil Filter
420956741
Unavailable
25
Oil Filter Cover
420610329
Unavailable
26
O-Ring
420230923
Unavailable
27
Oil Filter Screw Kit
295501207
Unavailable
28
O-Ring
420950860
Unavailable
29
STATOR ASS'Y - Call your local BRP dealership
420889720
Unavailable
30
MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership
420889710
Unavailable
31
Torx Flange Screw M6 X 35
420641258
Unavailable
32
CRANKSHAFT SENSOR - Call your local BRP dealership
420664140
Unavailable
33
Retaining Plate
420926300
Unavailable
34
Torx Flange Screw M6 X 16
420641048
Unavailable
35
Trigger Wheel
420966851
Unavailable
36
Starter Gear, 86 Teeth
420835163
Unavailable
37
Hex Screw
295501162
Unavailable
38
Ball Bearing With Bellows Ass'y | Includes 50 to 52
420832648
Unavailable
39
O-Ring
420631612
Unavailable
40
Gear Clamp
420851653
Unavailable
41
Gear Clamp 46.8-50.0MM
420853023
Unavailable
42
Formed Hose
420922822
Unavailable
43
Oetiker Clamp
420851687
Unavailable
44
Loctite 243, 10 ml
293800060
Unavailable
45
Dow Corning 111, 150 g
413707000
Unavailable
46
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
47
Loctite 5910, 300 ml
293800081
Unavailable
48
O-Ring
420850500
Unavailable
