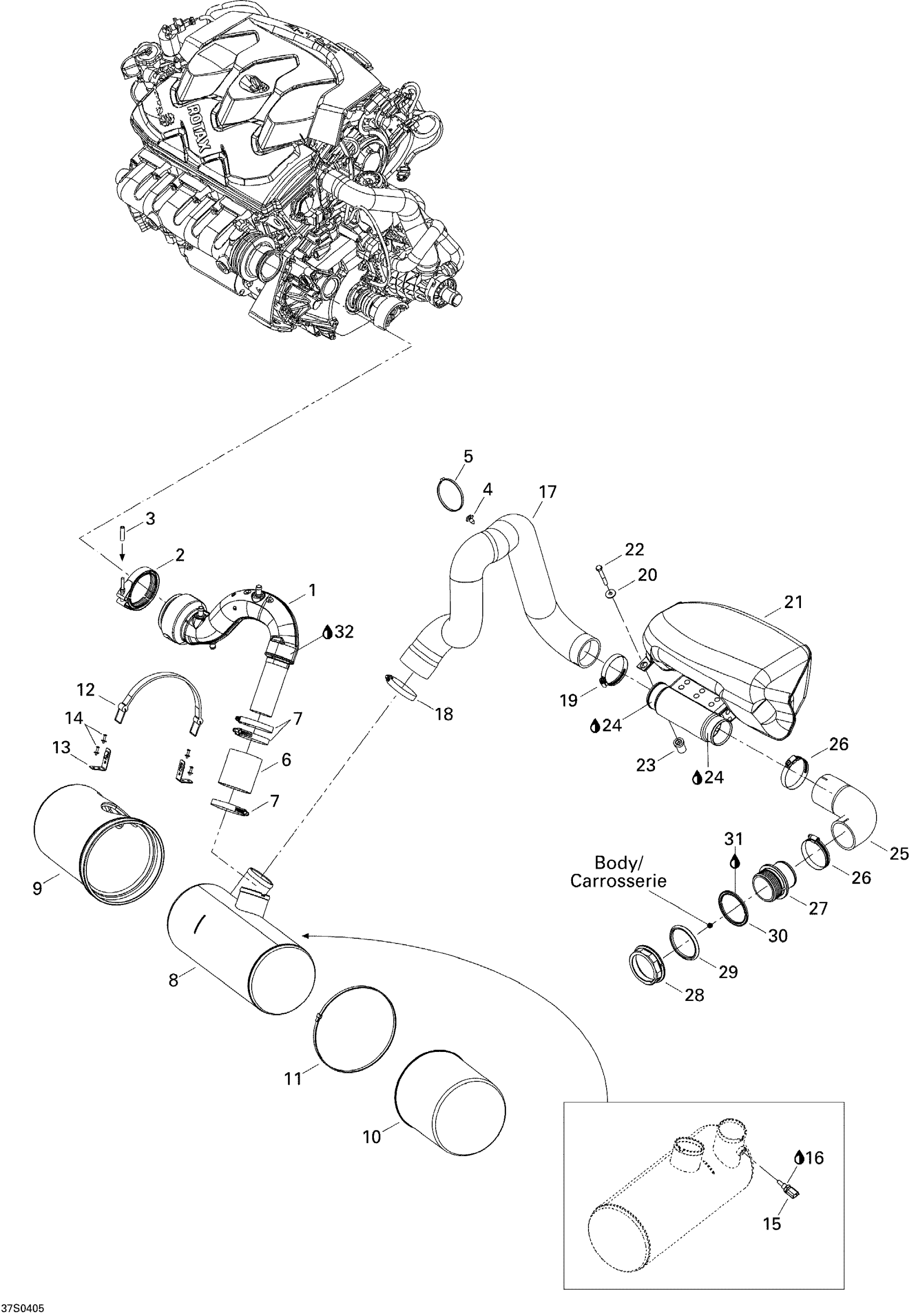

Sea-doo GTX 4-TEC, 2004 Exhaust System Diagram

#

Description
Price

1

EXHAUST PIPE - Call your local BRP dealership

274001030

Unavailable

2

Exhaust Clamp This part replaces 274000959.

274001472

$45.47

3

Polyurethane Hose 10000Mm Long

219704410

$46.12

4

Mount Dart

293730040

$0.86

5

Tie Wrap 368 mm

293750008

$0.85

6

Exhaust Hose

274001302

$28.57

7

Tridon Clamp

293650179

$8.81

8

MUFFLER_EXHAUST - Call your local BRP dealership

274001095

Unavailable

9

Front Muffler Cover

274001008

Unavailable

10

REAR MUFFLER COVER - Call your local BRP dealership

274000984

Unavailable

11

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

12

Fuel Tank Strap

293850036

$13.62

13

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

14

Avdel Rivet 3/16"

293150037

$0.47

15

Temperature Sensor

278002895

$31.82

16

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

17

Exhaust Hose

274001101

Unavailable

18

Tridon Clamp

293650179

$8.81

19

Tridon Clamp

293650064

$7.57

20

Flat Washer 8 mm, Stainless

234082600

$1.98

21

RH Resonator

274001045

$176.12

22

Hex. Screw M8 X 60, Scotch Grip

250000187

$3.61

23

BUSHING - Call your local BRP dealership

278001939

Unavailable

24

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

25

REAR EXHAUST HOSE - Call your local BRP dealership

274001428

Unavailable

26

Tridon Clamp

293650064

$7.57

27

Exhaust Hose, Outlet

274001391

$23.37

28

Nut 72 mm

274000224

$12.17

29

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

30

GASKET - Call your local BRP dealership

293250041

Unavailable

31

Silicone Sealant 51388, 300 ml

296000309

$35.72

32

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77
