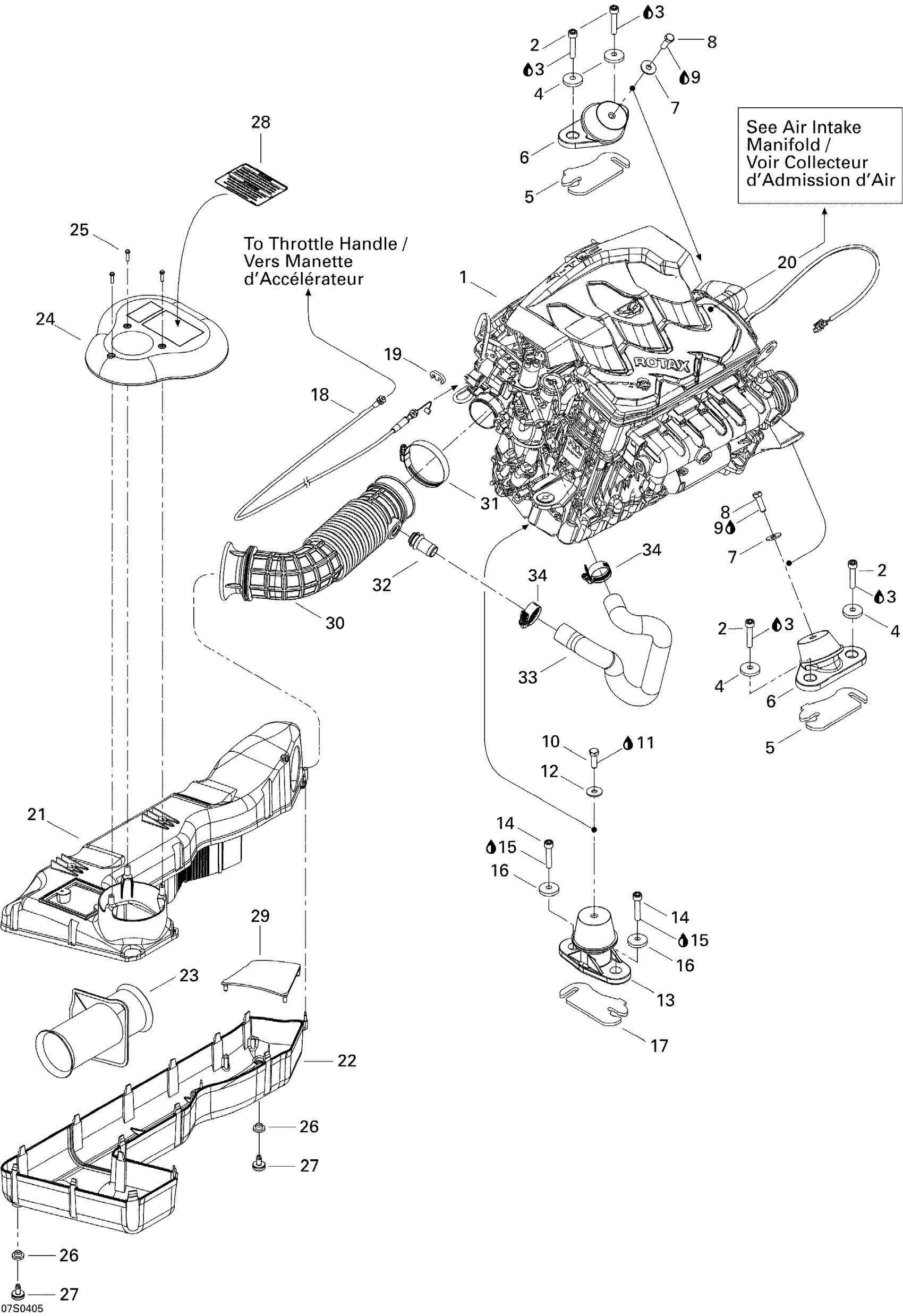

Sea-doo GTX 4-TEC, 2004 Engine Support Diagram

#

Description
Price

1

Rotax Engine 4 Strokes «1503»

270000567

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

Unavailable

4

Cone Washer

250200018

Unavailable

5

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

Unavailable

6

Engine Support Ass'y

270001081

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

Unavailable

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Loctite 243, 10 ml

293800060

Unavailable

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

11

Loctite 243, 10 ml

293800060

Unavailable

12

Flat Washer 8 mm, Stainless

234082600

Unavailable

13

Engine Support Ass'y

270001096

Unavailable

14

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

15

Loctite 243, 10 ml

293800060

Unavailable

16

Cone Washer

250200018

Unavailable

17

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

Unavailable

18

THROTTLE CABLE - Call your local BRP dealership

277001170

Unavailable

19

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

20

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

21

UPPER AIR SILENCER - Call your local BRP dealership

273000224

Unavailable

22

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

23

Connector Tube

273000191

Unavailable

24

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

25

Hex. Flange Screw K40 X 16

241141660

Unavailable

26

GROMMET - Call your local BRP dealership

293720064

Unavailable

27

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

28

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

29

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

30

INTAKE HOSE - Call your local BRP dealership

273000187

Unavailable

31

Tridon Clamp

293650064

Unavailable

32

Breather Valve

273000234

Unavailable

33

FORMED HOSE - Call your local BRP dealership

275500497

Unavailable

34

Tridon Gear Clamp

293650051

Unavailable
