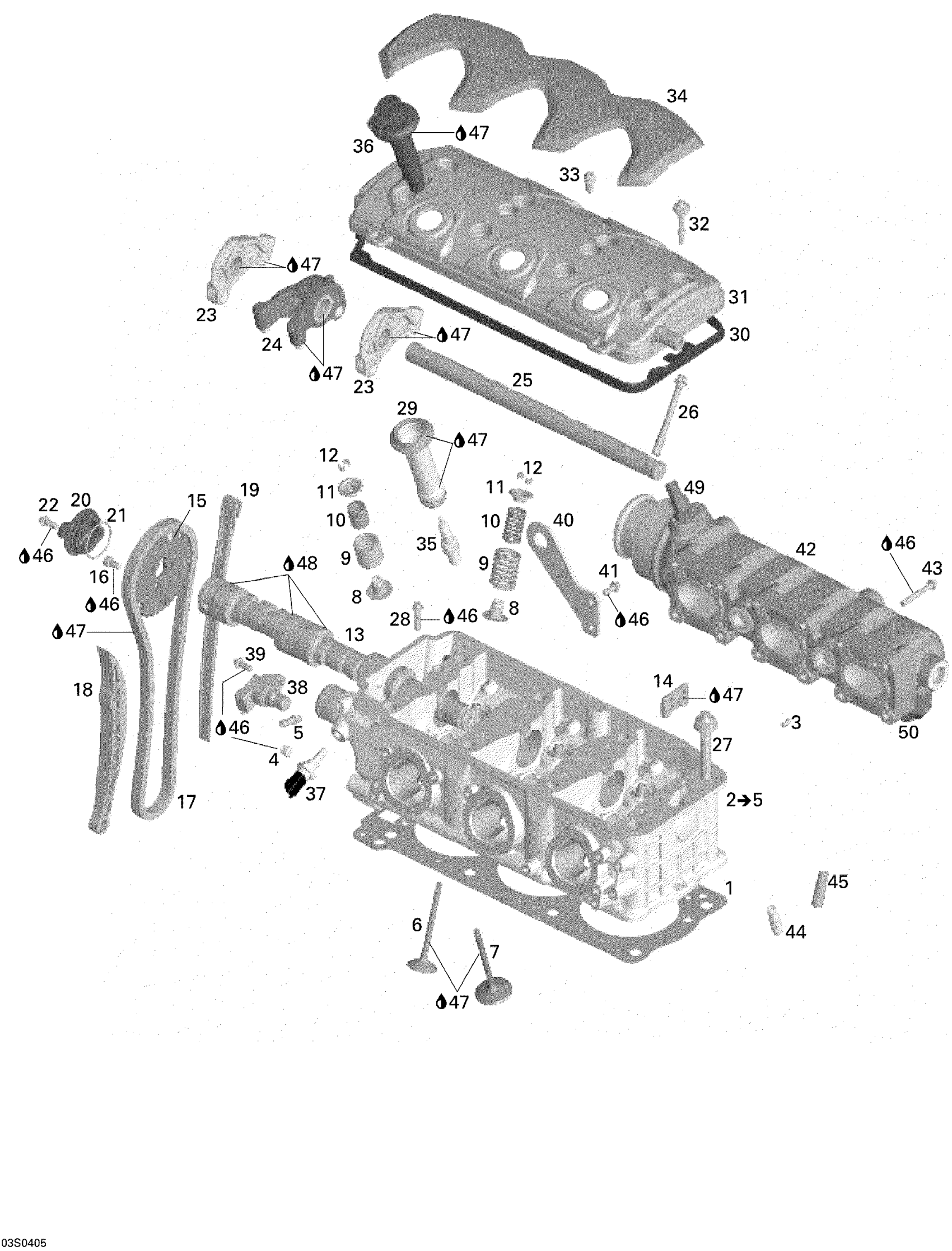

Sea-doo GTX 4-TEC, 2004 Cylinder Diagram
#
1
Cylinder Head Gasket This part replaces 420950770.
420950771
Unavailable
2
Cylinder Head Ass'y | Includes 2 to 5
420613978
Unavailable
2
REBUILD-CYLINDER HEAD 1503 - Call your local BRP dealership
421000644
Unavailable
3
Drive Pin 5 X 10
420929650
Unavailable
4
Plug Screw M10 X 1
420641323
Unavailable
5
Hose Nipple
420924724
Unavailable
6
Exhaust Valve, 31 mm
420254682
Unavailable
7
Intake Valve 38MM
420253163
Unavailable
8
Valve Steam Seal
420630202
Unavailable
9
Valve Spring
420238180
Unavailable
10
Valve Spring Inside
420838280
Unavailable
11
Valve Spring Retainer
420254283
Unavailable
12
Valve Cotter
420253645
Unavailable
13
CAMSHAFT - Call your local BRP dealership
420837621
Unavailable
14
Camshaft Guide
420851694
Unavailable
15
Timing Gear, 38 Teeth
420254309
Unavailable
16
Allen Screw M6 X 12
420840032
Unavailable
17
Camshaft Chain
420898042
Unavailable
18
Chain Tension Guide
420236541
Unavailable
19
Chain Guide
420236501
Unavailable
20
CAMSHAFT COVER - Call your local BRP dealership
420660100
Unavailable
21
O-Ring
420950870
Unavailable
22
Torx Flange Screw M6 X 16
420641048
Unavailable
23
Rocker Arm, Exhaust
420254329
Unavailable
24
Rocker Arm, Inner
420254316
Unavailable
25
Rocker Arm Shaft
420854592
Unavailable
26
Torx Screw M8 X 72
420641080
Unavailable
27
Torx Flange Screw M11 X 147
420641110
Unavailable
28
Torx Flange Screw M6 X 25
420641238
Unavailable
29
Spark Plug Pipe
420851754
Unavailable
30
Valve Cover Gasket | Included in gasket kit
420950820
Unavailable
31
Valve Cover
420811580
Unavailable
32
Allen Screw M6 x 30,5
420440561
Unavailable
33
TORX SCREW M6 X 8 - Call your local BRP dealership
420641488
Unavailable
34
Valve Cover
420660167
Unavailable
35
Spark Plug, NGK DCP-R8E
715900637
Unavailable
36
Ignition Coil Kit This part replaces 420664020.
296000307
Unavailable
37
Temperature Sensor
278002895
Unavailable
38
Camshaft Position Sensor Ass'y
420664046
Unavailable
39
Torx Flange Screw M6 X 16
420641048
Unavailable
40
TRANSPORT BRACKET PTO - Call your local BRP dealership
420851615
Unavailable
41
Torx Flange Screw M6 X 16
420641048
Unavailable
42
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.
296000422
Unavailable
43
Torx Flange Screw M6 X 45
420641198
Unavailable
44
Valve Guide | Inner diameter machined
420253929
Unavailable
45
Valve Guide | Inner diameter machined
420253929
Unavailable
46
Loctite 243, 10 ml
293800060
Unavailable
47
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
48
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
49
Fitting 45°
420922434
Unavailable
50
Fitting 90°
420922249
Unavailable
