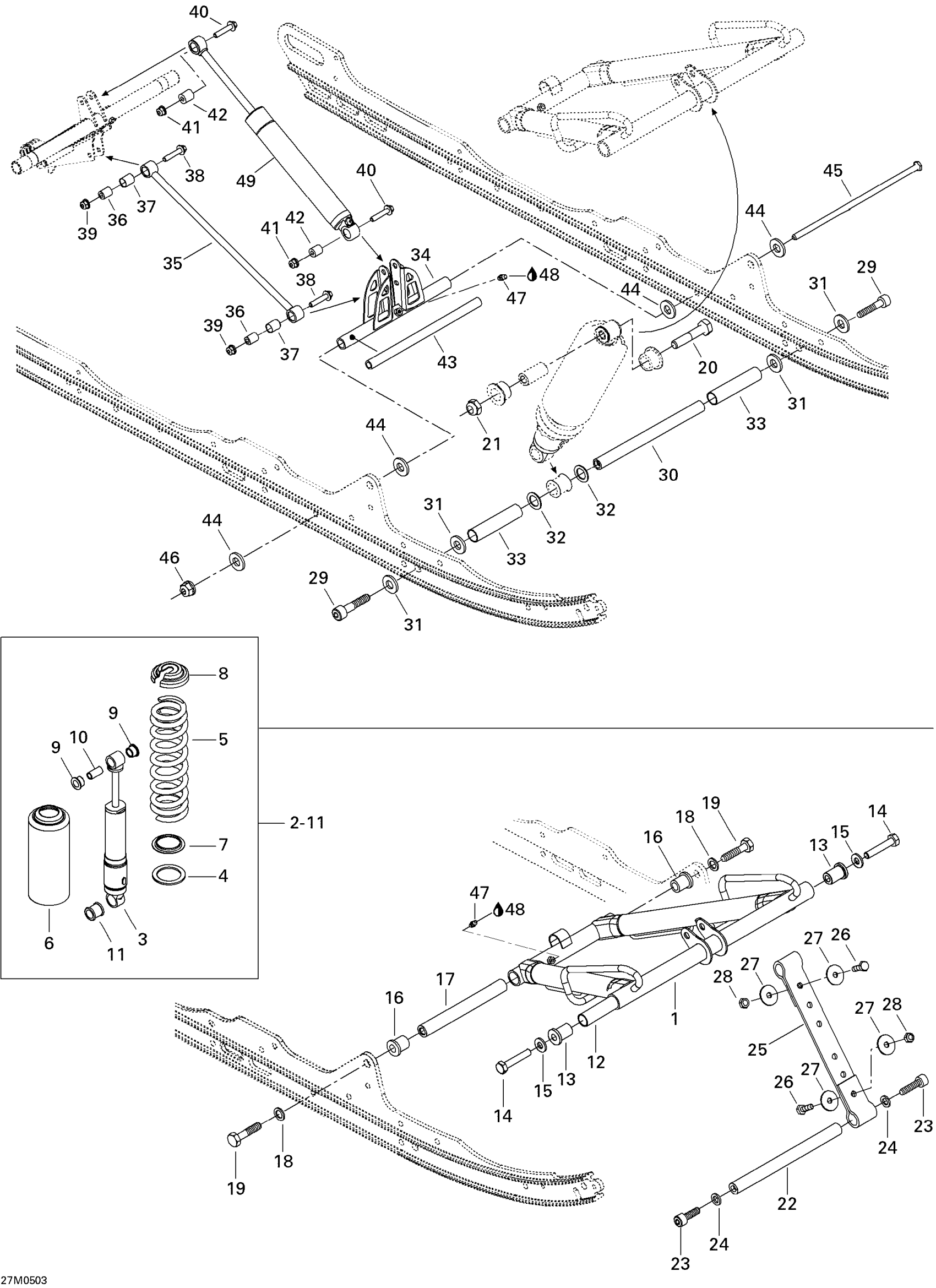

Find the part on the Front ARM diagram for your 2005 Ski-Doo GTX 380F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Ski-Doo GTX 380F Front ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT ARM - Call your local BRP dealership

503191080

—
Out of stock

2

Not Available As Spare Part - Friction Washer

—
Out of stock

2

Not Available As Spare Part - Friction Washer

—
Out of stock

3

Center Shock

503190657

—
Out of stock

4

WASHER - Call your local BRP dealership

505070401

—
Out of stock

5

SPRING - Call your local BRP dealership | Europe

503189812

—
Out of stock

5

SPRING - Call your local BRP dealership

503189659

—
Out of stock

6

Protector

503193663

1
Out of stock

7

Spring Guide

503187500

1
Out of stock

8

Spring Stopper

706200881

1
Out of stock

9

Urethane Bushing

503189117

2
Out of stock

10

Bushing | Includes 240d to 240d1

503189282

1
Out of stock

11

Bushing

503189271

1
Out of stock

12

SHAFT - Call your local BRP dealership

503190387

—
Out of stock

13

Bushing

503189324

2
Out of stock

14

Hex. Screw M10 X 1.5 X 50

207005044

1
Out of stock

15

Washer

732900049

2
Out of stock

16

CUSHION - Call your local BRP dealership

503189323

—
Out of stock

17

SHAFT - Call your local BRP dealership

503189313

—
Out of stock

18

Washer

503189276

2
Out of stock

20

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

2
Out of stock

21

Elastic Locking Nut M10 X 1.5

233601416

1
Out of stock

22

AXLE - Call your local BRP dealership

503189562

—
Out of stock

23

Socket Head Screw M10 X 35, Scotch Grip

205503544

2
Out of stock

24

Washer

503189564

2
Out of stock

25

STOPPER STRAP - Call your local BRP dealership

503190782

—
Out of stock

26

Hex. Flange Screw M8 X 25

207682544

2
Out of stock

27

Flat Washer

224081301

4
Out of stock

28

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

29

Socket Head Screw M12 X 35, Scotch Grip

205523544

2
Out of stock

30

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

—
Out of stock

31

Washer

503189276

4
Out of stock

32

Washer

503189273

2
Out of stock

33

SPACER - Call your local BRP dealership

503189274

—
Out of stock

34

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

—
Out of stock

35

THROTTLE ROD - Call your local BRP dealership

503189547

—
Out of stock

36

BUSHING - Call your local BRP dealership

503189133

—
Out of stock

37

CUSHION - Call your local BRP dealership

503189625

—
Out of stock

38

Hex. Flange Screw M8 X 40

207684044

2
Out of stock

39

Elastic Flange Nut M8

250100025

2
Out of stock

40

Hex. Flange Screw M8 X 40

207684044

2
Out of stock

41

Elastic Flange Nut M8

250100025

2
Out of stock

42

Bushing

414936000

2
Out of stock

43

Pivot Arm Axle

503189156

1
Out of stock

44

Washer

503189157

4

$3.20

In stock

45

Bolt M8 X 248mm

503192440

1
Out of stock

46

Elastic Flange Nut M8

250100025

1
Out of stock

47

Grease Fitting

408200700

1
Out of stock

48

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock

49

REAR SHOCK - Call your local BRP dealership | Europe

503190810

—
Out of stock

49

REAR SHOCK - Call your local BRP dealership | Except Europe

503191223

—
Out of stock
