2005 Ski-Doo GTX 380F Steering System Diagram

← All diagrams

Find the part on the Steering System diagram for your 2005 Ski-Doo GTX 380F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

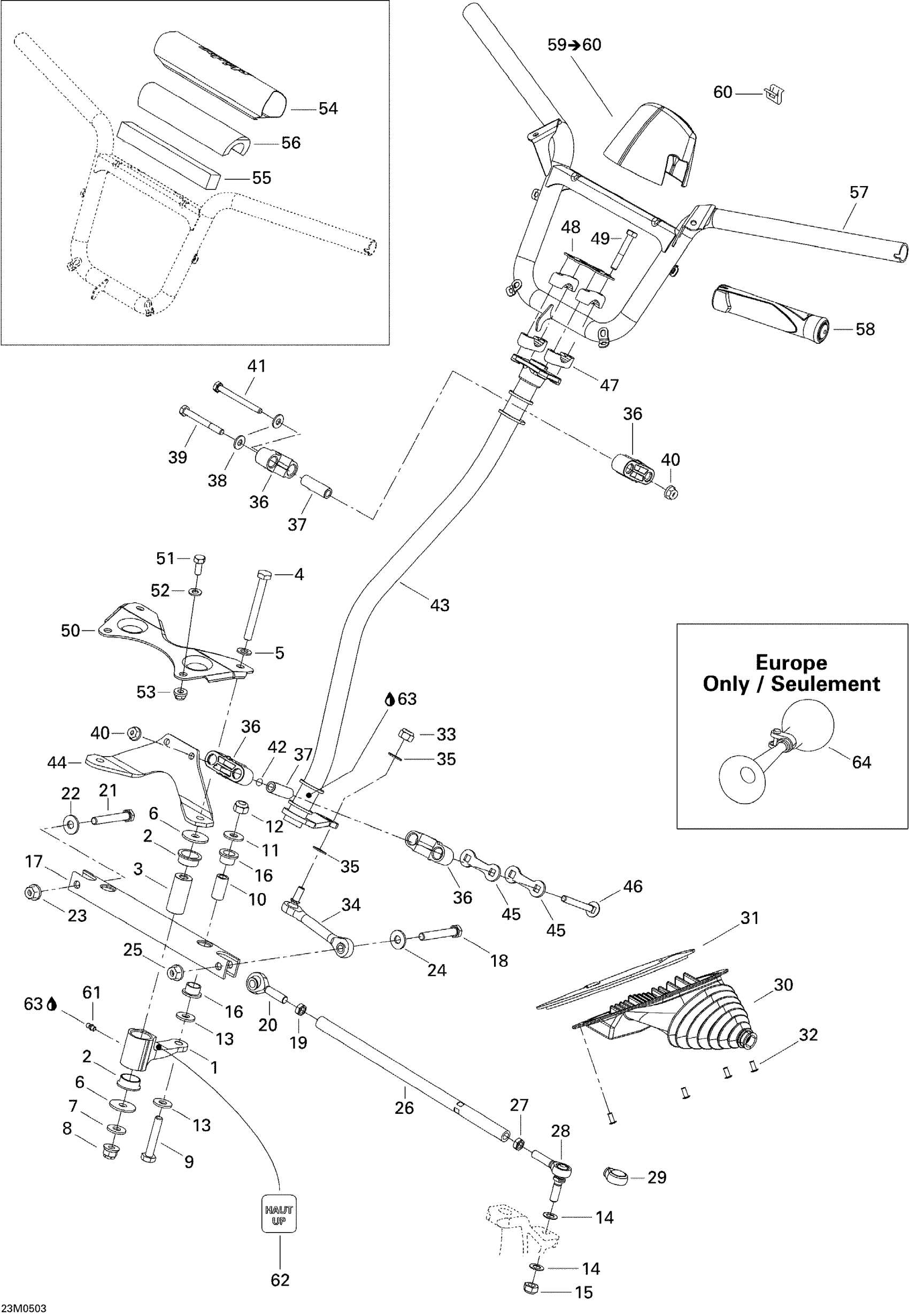

2005 Ski-Doo GTX 380F Steering System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RH Swivel Arm

506151627

—
Out of stock

1

LH Swivel Arm

506151628

—
Out of stock

2

CUSHION - Call your local BRP dealership

415041100

—
Out of stock

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

—
Out of stock

5

Washer

503183800

2
Out of stock

6

Washer 10 mm

506150000

4
Out of stock

7

Flat Washer M10 | 4X4

250200014

2
Out of stock

8

Flange Nut M10

732610084

2
Out of stock

9

Hex. Screw M10 X 55

207005544

2
Out of stock

10

Pivot Bar

506151273

2
Out of stock

11

FLAT WASHER - Call your local BRP dealership

224002251

—
Out of stock

12

Elastic Locking Nut M10 X 1.5

233601416

2
Out of stock

13

Washer

250200032

4
Out of stock

14

Washer

503175800

4

$3.26

In stock

15

2

$1.25

In stock

16

Swivel Bushing

503191555

4
Out of stock

17

SWIVEL BAR - Call your local BRP dealership

506151328

—
Out of stock

18

Hex. Screw M10 X 1.5 X 65

207006544

1
Out of stock

19

LH Threaded Hex. Jam Nut M10

250100016

2
Out of stock

20

LH Ball Joint

506151810

—
Out of stock

21

Hex. Screw M10 X 45

207004544

1
Out of stock

22

FLAT WASHER - Call your local BRP dealership

224002251

—
Out of stock

23

1

$1.26

In stock

24

FLAT WASHER - Call your local BRP dealership

224002251

—
Out of stock

25

1

$1.26

In stock

26

TIE-ROD - Call your local BRP dealership

506151340

—
Out of stock

27

RH Threaded Hex. Jam Nut M10

732610010

2
Out of stock

28

Ball Joint

506151811

—
Out of stock

29

PROTECTION CAP - Call your local BRP dealership

506151650

—
Out of stock

30

RH Tie-Rod Cap

506151725

1
Out of stock

31

RH RETAINER RING - Call your local BRP dealership

506151356

—
Out of stock

30

LH Tie-Rod Cap

506151726

1
Out of stock

31

LH RETAINER RING - Call your local BRP dealership

506151357

—
Out of stock

32

Avex Rivet

390909100

8
Out of stock

33

1

$1.25

In stock

34

BALL JOINT, DOUBLE - Call your local BRP dealership

506151621

—
Out of stock

35

Washer

503175800

2

$3.26

In stock

36

Housing Half

506150400

4
Out of stock

37

Housing Bushing

506150500

4
Out of stock

38

Washer

503189157

2

$3.20

In stock

39

Hex. Screw M8 X 70

207087044

1

$1.73

In stock

40

Hex. Flange Elastic Nut M8

233281414

4
Out of stock

41

Hex. Screw M8 X 80

207088044

1

$1.58

In stock

42

O-RING - Call your local BRP dealership

506151140

—
Out of stock

43

Main Tube

506151920

—
Out of stock

44

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

—
Out of stock

45

Stopper Plate

506150600

2
Out of stock

46

2

$1.11

In stock

47

Steering Support

709400919

4
Out of stock

48

REINFORCEMENT - Call your local BRP dealership

506151547

—
Out of stock

49

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

—
Out of stock

50

PIVOT SUPPORT - Call your local BRP dealership

506151536

—
Out of stock

51

Hex. Screw M8 X 25

207182544

2

$0.74

In stock

52

Flat Washer 8 mm

234081410

2
Out of stock

53

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

54

Steering Cover

506151966

—
Out of stock

55

Steering Cover Foam Insert

506151861

—
Out of stock

56

Steering Cover Foam

506151862

—
Out of stock

57

Handle Bar

506151908

—
Out of stock

58

Handle Grip

506152238

2
Out of stock

59

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

—
Out of stock

60

Edge Clip

517302785

2
Out of stock

61

Grease Fitting

408200700

2
Out of stock

62

Upper Decal

516001750

—
Out of stock

63

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock

64

Horn

549011291

1
Out of stock
