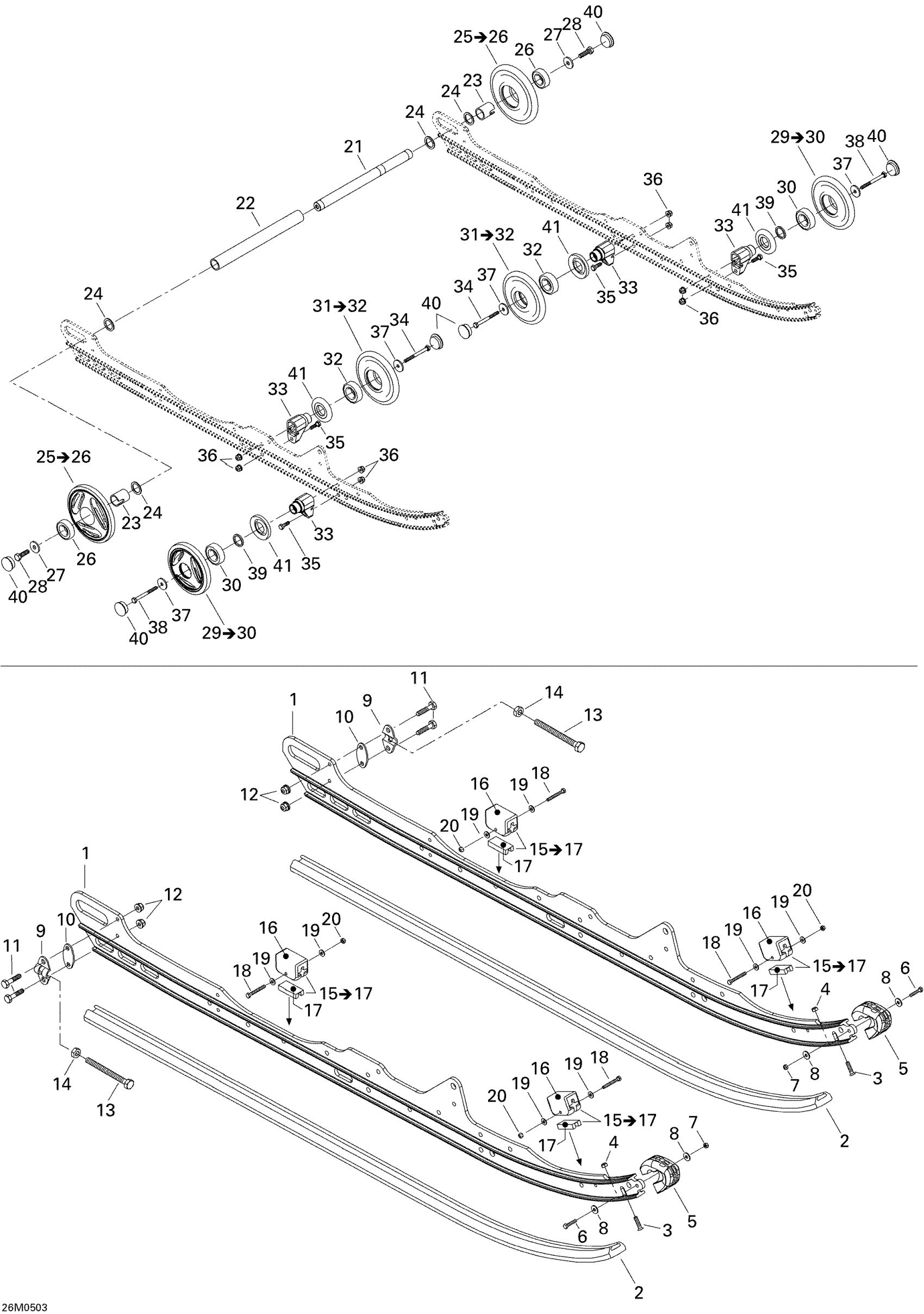

Ski-Doo GTX 380F, 2005 Rear Suspension Diagram
#
Description
Price
1
Runner, 136”
503189582
Unavailable
2
Slide Shoe
605355362
Unavailable
3
Phillips Screw M6 X 25
208562560
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
5
RUNNER PROTECTOR - Call your local BRP dealership
572075400
Unavailable
6
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152544
Unavailable
7
Elastic Stop Nut M5
232551414
Unavailable
8
Washer | DS 650 X
391301600
Unavailable
9
Tensioner
503155300
Unavailable
10
TENSIONER SPACER - Call your local BRP dealership
503189160
Unavailable
11
Hex. Screw M6 X 30
207063044
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
HEX. SCREW M10 X 100 - Call your local BRP dealership
230100044
Unavailable
15
RUBBER STOPPER ASS'Y - Call your local BRP dealership
503190905
Unavailable
16
Rubber Stopper
570063000
Unavailable
18
HEX. SCREW M5 X 40 - Call your local BRP dealership
207054044
Unavailable
19
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
20
Elastic Stop Nut M5
232551414
Unavailable
25
Wheel 165 mm
503190856
Unavailable
26
Ball Bearing
293350115
Unavailable
28
Hex. Screw With Nylon
250000019
Unavailable
29
WHEEL 139 MM - Call your local BRP dealership | Includes 29 to 30
503190794
Unavailable
30
Ball Bearing
293350115
Unavailable
31
Wheel 139 mm Ass'y
503190798
Unavailable
32
Ball Bearing
293350115
Unavailable
33
SUPPORT - Call your local BRP dealership
503190389
Unavailable
34
Hex. Screw M8 X 80
207088044
Unavailable
35
Hex. Screw M8 X 25
207182544
Unavailable
36
Hex. Flange Elastic Nut M8
233281414
Unavailable
39
WASHER - Call your local BRP dealership
503173700
Unavailable
40
Wheel Cap
570063600
Unavailable
41
LABYRINTH SEAL - Call your local BRP dealership
572089000
Unavailable
