1993 Yamaha GTS1000A CA (GTS1000AEC) Headlight Diagram

← All diagrams

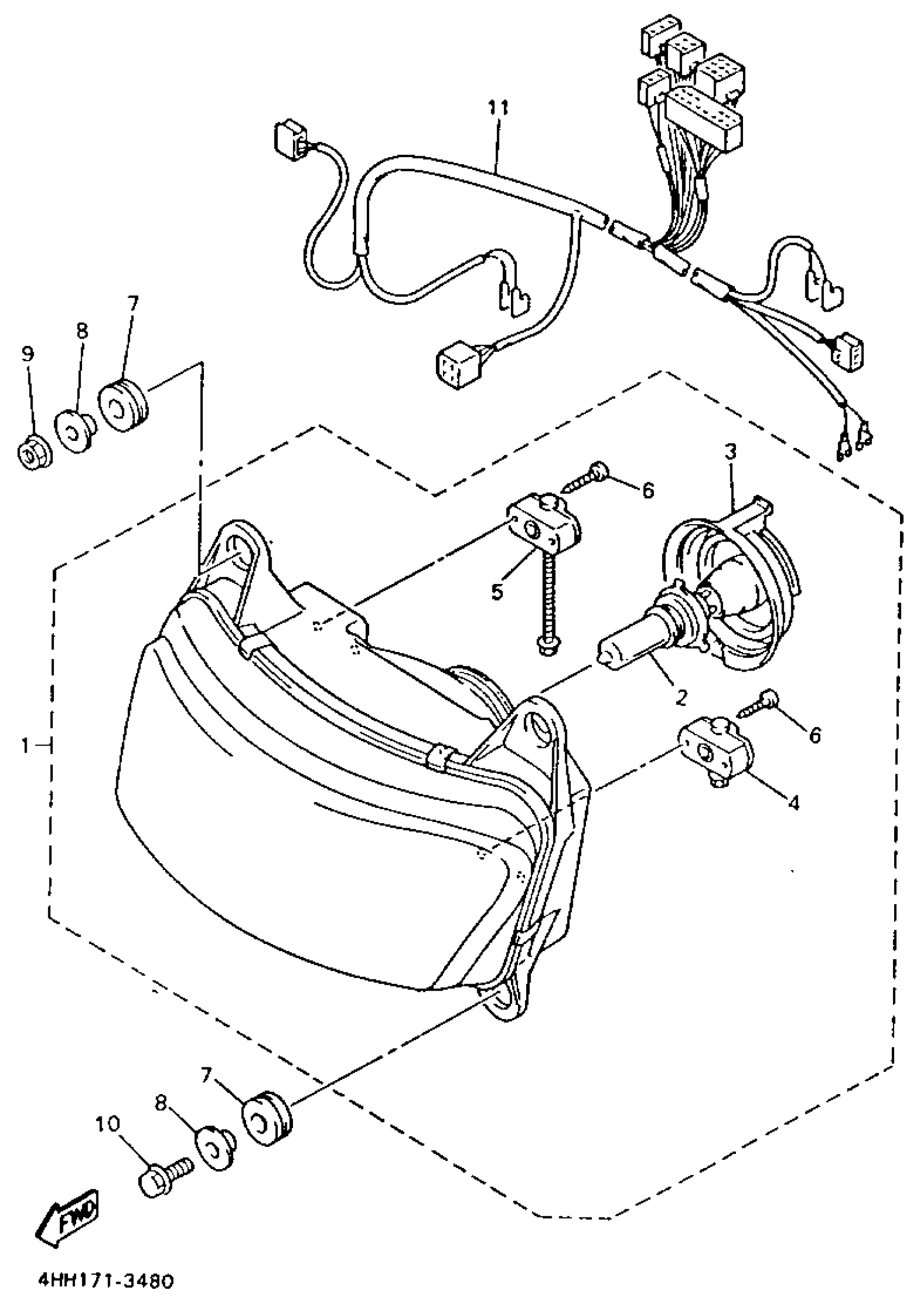

Find the part on the Headlight diagram for your 1993 Yamaha GTS1000A CA (GTS1000AEC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha GTS1000A CA (GTS1000AEC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT ASSEMBLY

4BH-84300-30-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

36Y-84397-00-00

—
Out of stock

4

GEAR UNIT ASY

3LD-8430M-00-00

1
Out of stock

5

. GEAR UNIT ASSEMBLY

4BH-8430M-00-00

1
Out of stock

6

SCREW, TAPPING(4HP)

97707-40616-00

1
Out of stock

7

GROMMET(4BH)

90480-20564-00

1
Out of stock

8

COLLAR(4BH)

90387-084Y3-00

1
Out of stock

9

NUT, FLANGE(JN5)

95707-08500-00

1
Out of stock

10

BOLT, FLANGE(4LN)

95817-08025-00

1
Out of stock

11

CORD, HEADLIGHT

4HH-84359-00-00

1
Out of stock
