1993 Yamaha GTS1000A CA (GTS1000AEC) Generator Diagram

← All diagrams

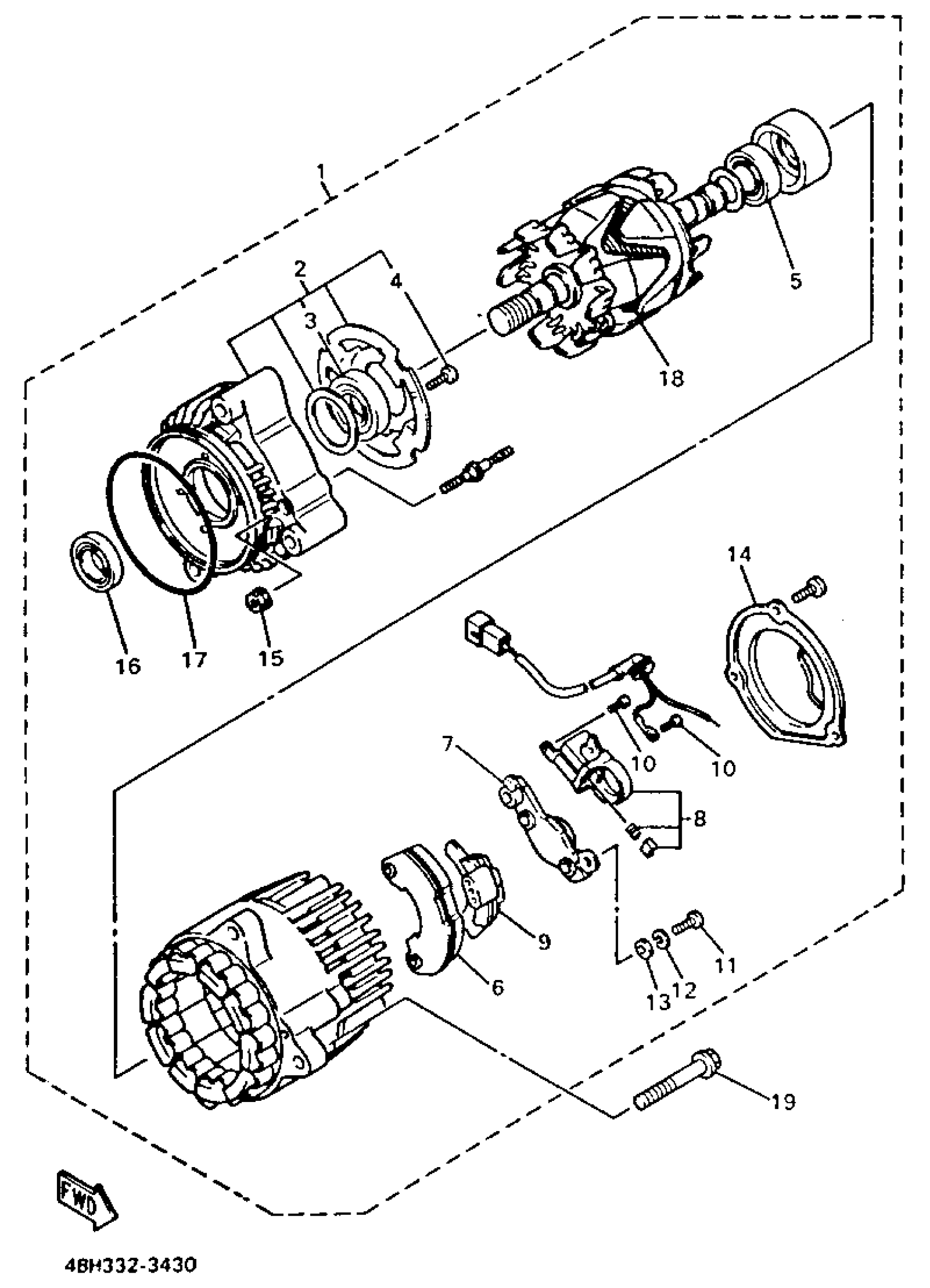

Find the part on the Generator diagram for your 1993 Yamaha GTS1000A CA (GTS1000AEC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha GTS1000A CA (GTS1000AEC) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

A.C. GENERATOR ASSY

4KM-81600-10-00

—

$1,052.99

In stock

2

STATOR ASSY

4KG-81634-00-00

1

$410.17

In stock

3

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

4

SCREW

4BH-81645-00-00

—

$0.54

In stock

5

BEARING

4BH-81643-10-00

—

$41.74

In stock

6

RECTIFIER ASSY

4BH-81970-00-00

—

$338.22

In stock

7

VOLTAGE REGULATOR ASSY

36Y-81910-50-00

1
Out of stock

8

BRUSH HOLDER ASSY

3FV-81619-00-00

—

$57.89

In stock

9

COVER, RECTIFIER

4BH-81972-00-00

—

$17.22

In stock

10

SCREW

3FV-81645-00-00

—

$10.18

In stock

11

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

14

COVER ASSY

4BH-81604-00-00

—

$42.75

In stock

15

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock

16

OIL SEAL

36Y-81638-50-00

—

$29.63

In stock

17

O-RING

2KT-81642-50-00

—

$21.65

In stock

18

ROTOR ASSY

4BH-81660-00-00

—

$317.23

In stock

19

BOLT, WASHER BASED

90105-084A1-00

—

$9.38

In stock
