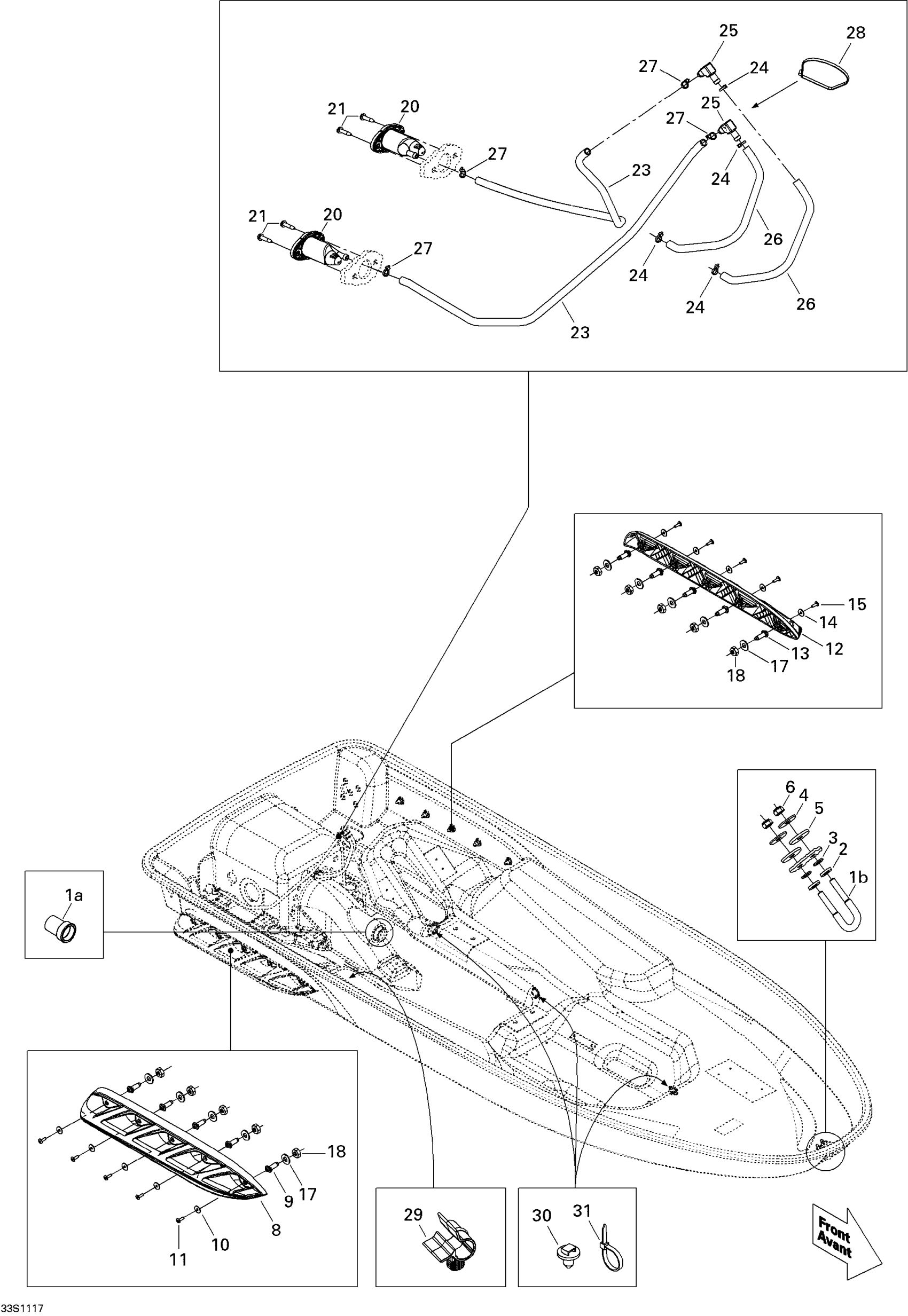

Sea-doo GTS Pro 130, 2011 Hull Diagram

#

Description
Price

1a

HULL INSERT, 41 MM - Call your local BRP dealership

292000975

Unavailable

1b

U-Clamp

292000933

$32.47

2

Flat Washer M8.5 x 18

293050001

$1.29

3

Flat Washer 8 mm, Nylon

234081100

$1.00

4

Flat Washer 8 mm, Stainless

250200175

$1.29

5

Rubber Washer

293830037

$2.68

6

Hex. Elastic Nut M8 Brass

232581200

$1.29

8

RH Sponson

292001878

$72.77

9

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

10

Flat Washer M6.6 X 22

250200022

$1.87

11

TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership

250000299

Unavailable

12

LH Sponson

292001877

$72.77

13

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

14

Flat Washer M6.6 X 22

250200022

$1.87

15

TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership

250000299

Unavailable

17

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

18

NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership

250100078

Unavailable

20

Drain Plug

292001252

$28.57

21

Hex. Screw 10-14 X 7/8”

211000023

$2.91

23

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

26

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

27

Tie Wrap 94 mm | 4X4

293750001

$0.83

28

Tie Wrap 368 mm

293750008

$0.85

29

Hose Retainer

275500528

Unavailable

30

Mount Dart

293730040

$0.86

31

Tie-Rap 180 mm

414115200

$0.09

31

Tie Wrap 368 mm

293750008

$0.85
