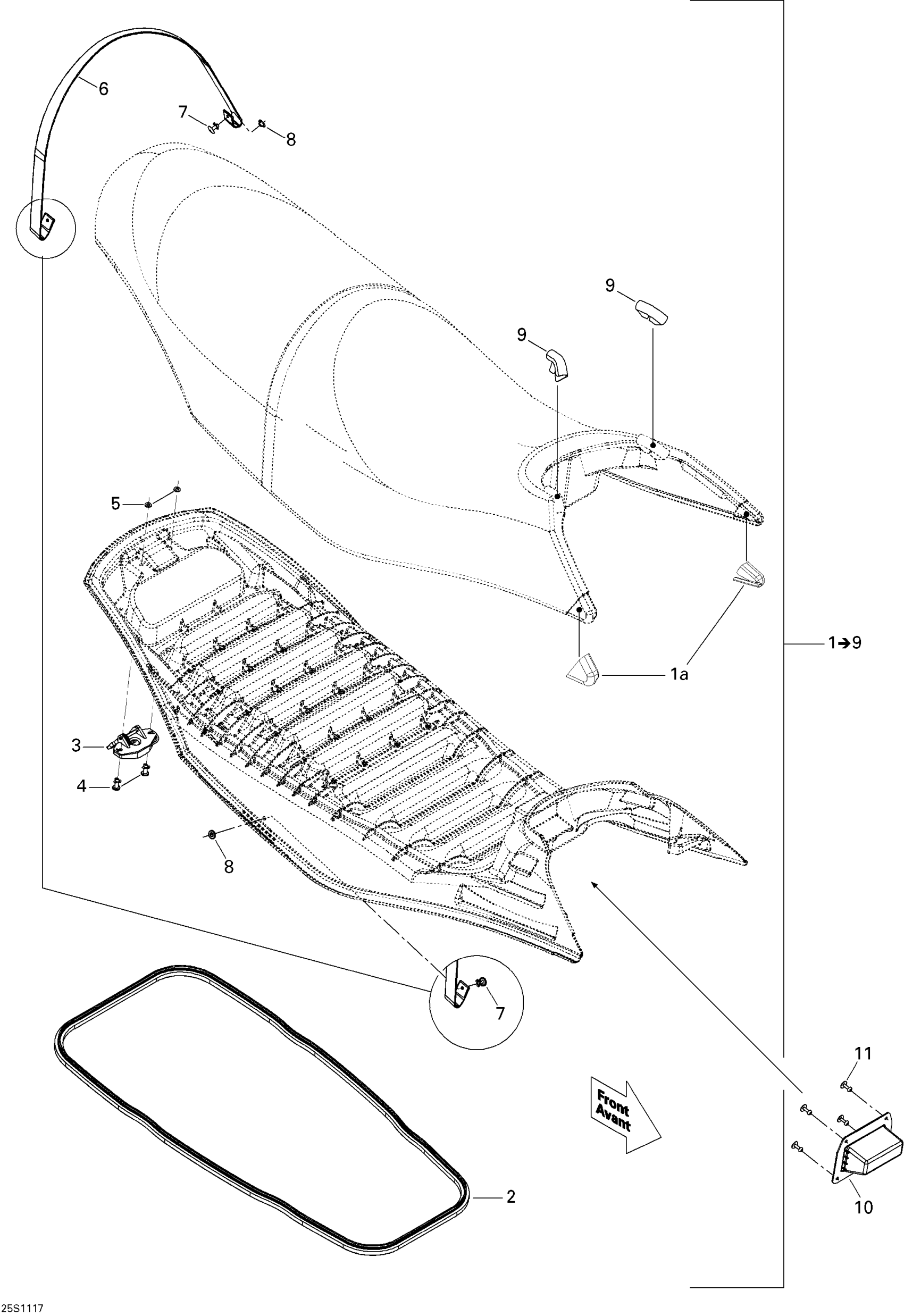

Sea-doo GTS Pro 130, 2011 Seat Diagram

#

Description
Price

1

SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 9

269002081

Unavailable

1a

Seat Corner

284610041

Unavailable

2

Was 293200062 Seal

219704366

$61.72

3

Latch Ass'y

269700109

$20.12

4

Rivet 1/4"

293150151

$6.46

5

Stainless Flat Washer M6

234061600

$0.25

6

Seat Strap

269001668

Unavailable

7

Rivet | Model-T3

293150067

$2.29

8

Grommet

293720067

$9.19

9

SEAT CORNER - Call your local BRP dealership

269001088

Unavailable

10

SEAT RECEPTACLE - Call your local BRP dealership

269001389

Unavailable

11

Pop Rivet 3/16"

293150123

$3.43
