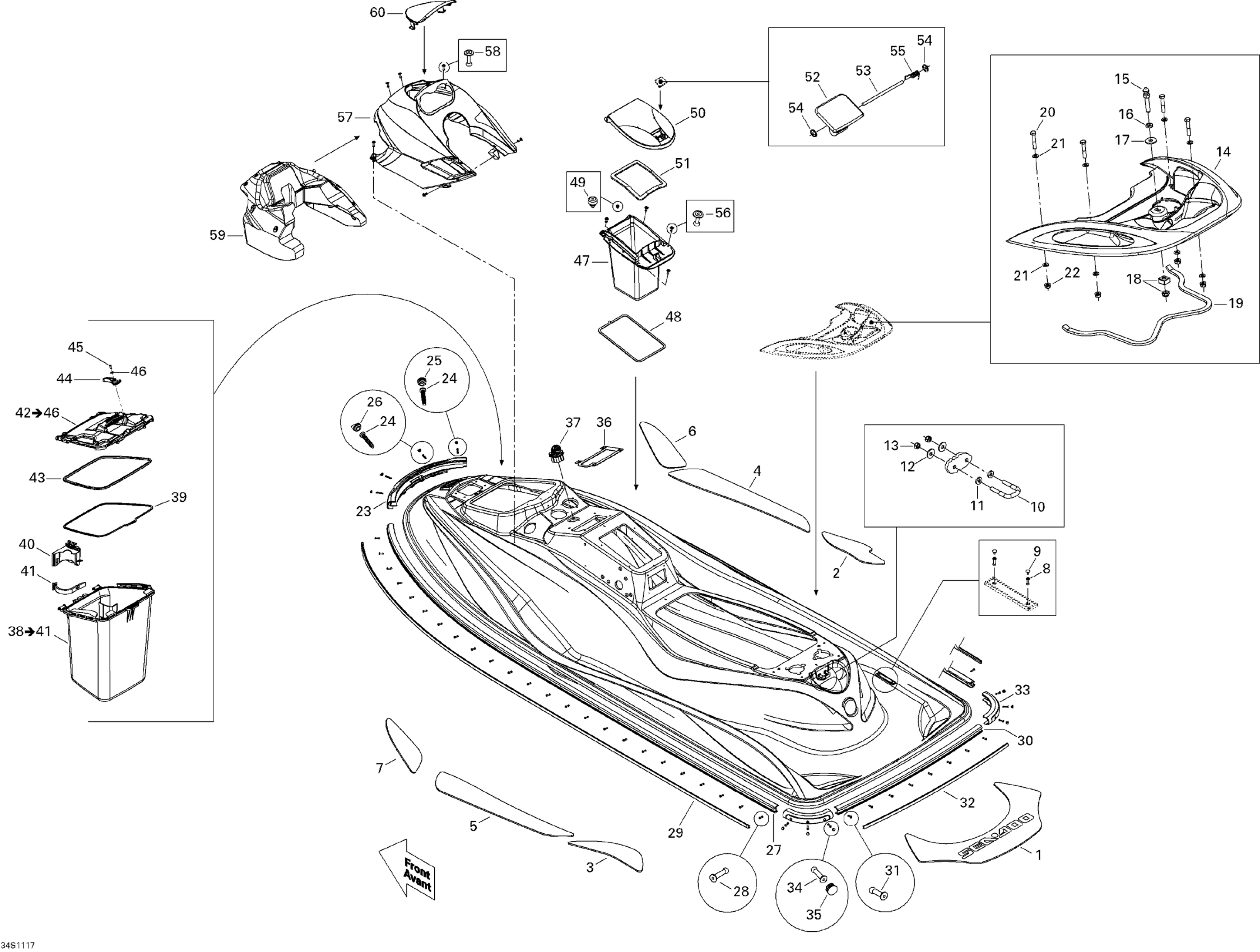

Sea-doo GTS Pro 130, 2011 Body Diagram

#

Description
Price

1

ANTI SLIP MAT_DECK - Call your local BRP dealership

291002356

Unavailable

2

ANTI SLIP MAT CTRL R - Call your local BRP dealership

291002380

Unavailable

3

LH Center Rear Carpet

291002381

Unavailable

4

ANTI SLIP MAT CTRL R - Call your local BRP dealership

291002357

Unavailable

5

ANTI SLIP MAT CTRL L - Call your local BRP dealership

291002358

Unavailable

6

ANTI SLIP MAT FR - Call your local BRP dealership

291002365

Unavailable

7

ANTI SLIP MAT FL - Call your local BRP dealership

291002366

Unavailable

8

Rivet 1/8"

293150016

$0.29

9

Black, Snap Cap

293000014

$0.85

10

U-Clamp

292000933

$32.47

11

Flat Washer 8 mm, Stainless

250200175

$1.29

12

Flat Washer 8 mm, Stainless

234082600

$1.98

13

Hex. Elastic Nut M8 Brass

232581200

$1.29

14

REAR HANDLE GRAB - Call your local BRP dealership

291002792

Unavailable

15

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

16

Hex. Jam Nut M10

232100600

$1.85

17

Flat Washer 10 mm, Stainless

234002600

$1.85

18

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

19

Neoprene Seal (1PAC=3M)

219704364

$22.72

20

Hex. Screw M8 X 35

207083560

$1.40

21

Stainless, Flat Washer 8 mm

234081600

$0.46

22

Hex. Elastic Nut M8 Brass

232581200

$1.29

23

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

24

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

25

Bumper Plug, Black

291001519

$4.28

26

Bumper Plug, Black

291001040

Unavailable

27

Black, Side Bumper

204050270

$167.13

28

Pop Rivet 3/16"

293150005

$0.40

29

SIDE BUMPER TRIM - Call your local BRP dealership

204050271

Unavailable

30

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

31

Pop Rivet 3/16"

293150005

$0.40

32

Black, Rear Bumper Trim - Call your local BRP dealership

204050279

Unavailable

33

Bumper Corner

291002244

$38.32

34

Pop Rivet 3/16"

293150013

$1.11

35

Bumper Plug, Black

291000339

$2.34

36

GASKET - Call your local BRP dealership

293250171

Unavailable

37

GROMMET - Call your local BRP dealership

293720042

Unavailable

38

Storage Tray Ass'y | Includes 38 to 41

269501491

$45.47

39

Gasket 1000Mm Long

219704374

$1.65

40

EXTINGUISHER SUPPORT - Call your local BRP dealership

269501501

Unavailable

41

Strap

269502417

$14.27

42

Storage Tray Cover Ass'y | Includes 42 to 46

269501643

$78.62

43

Neoprene Seal

293250453

$14.92

44

Not Available As Spare Part - Friction Washer

Unavailable

45

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

46

Flat Washer 5 mm, Stainless

234052600

$0.64

47

GLOVE BOX - Call your local BRP dealership

291002531

Unavailable

48

GASKET - Call your local BRP dealership

291002251

Unavailable

49

Rubber Bumper

293830005

$5.33

50

Glove Box Door

291002249

$80.57

51

Gasket

291002250

$12.86

52

Latch, Black

269500553

$16.87

53

Pin

211400008

$7.32

54

Push Nut | Not shown

211100002

$0.83

55

Latch Spring

291000922

$4.80

56

Pop Rivet 3/16"

293150123

$3.43

57

PODIUM - Call your local BRP dealership

291002866

Unavailable

58

Pop Rivet 3/16"

293150123

$3.43

59

FLOAT PLATFORM - Call your local BRP dealership

292001095

Unavailable

60

DEFLECTOR, ORANGE - Call your local BRP dealership

291002951

Unavailable
