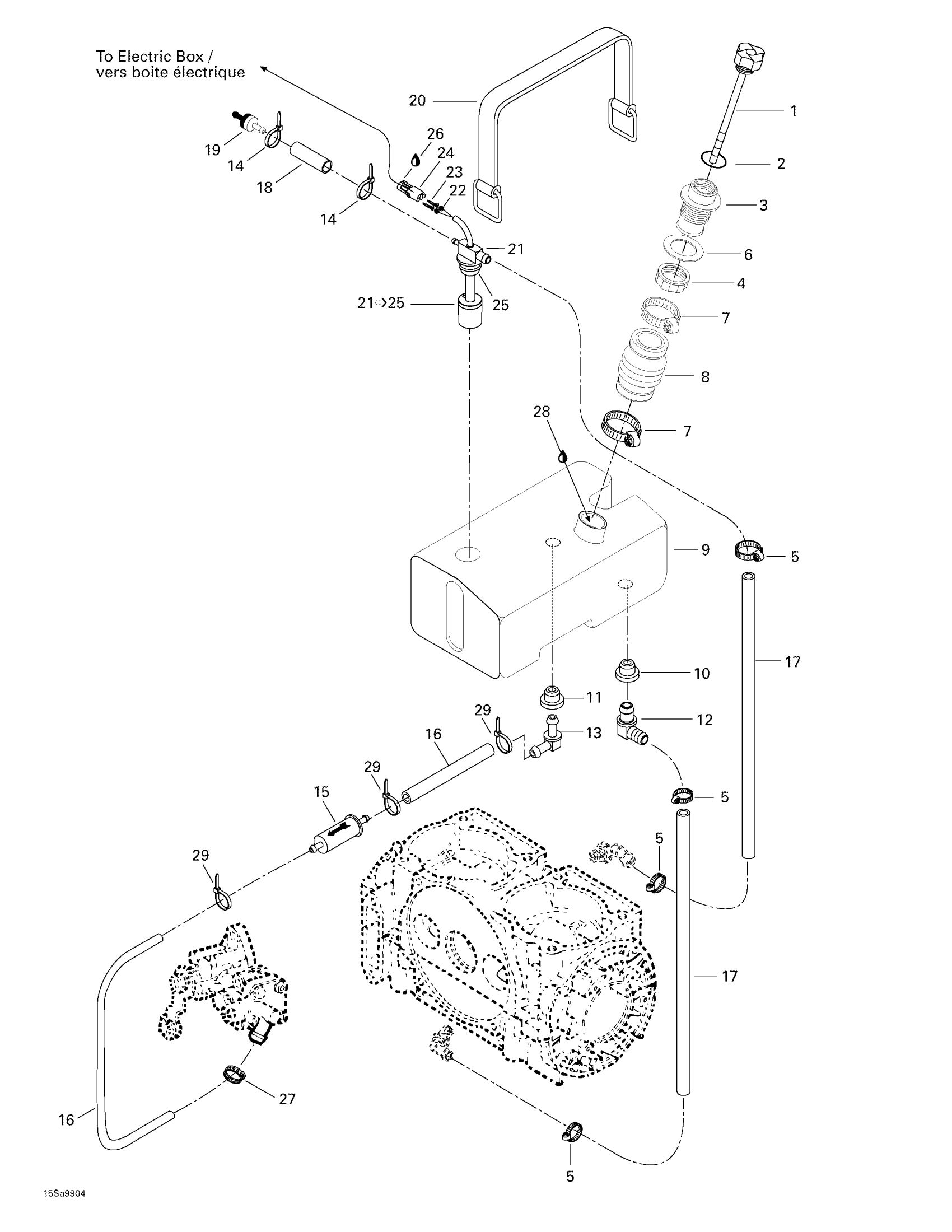

Sea-doo GTS, 5883, 1999 Oil Injection System Diagram

#

Description
Price

1

Oil Cap Ass'y | Includes 1 - 2.

275000081

Unavailable

2

O-RING - Call your local BRP dealership

293250025

Unavailable

3

Filler Neck

275000212

Unavailable

4

Nut-Neck Oil Filler

211100013

Unavailable

5

Tridon Gear Clamp

293650170

$1.99

6

Gasket

293250016

Unavailable

7

Tridon Clamp

293650035

$7.29

8

Filler Neck Hose

275000070

Unavailable

9

Oil Tank

275000123

Unavailable

10

Grommet | Europe

707800347

$10.49

11

Grommet

709200285

$9.69

12

Elbow Fitting

414523600

$4.86

13

Elbow Fitting 90 Deg

414650200

Unavailable

14

Tie Wrap 142 mm

293750002

$1.25

15

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

16

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

17

Was 275500008 Hose 12 mm

219704356

$20.49

18

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

19

Check Valve

275500398

$10.99

20

STRAP - Call your local BRP dealership

293850022

Unavailable

21

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

22

Wire Seal

278000218

$4.39

23

Male Terminal | XT Models

278000222

$3.19

24

Female Housing, 2 Circuits

278000217

$9.59

25

Grommet

293720008

$14.75

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

Oetiker Clamp

293650042

$3.09

28

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

29

Tie Wrap 94 mm | 4X4

293750001

$1.03
